| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |

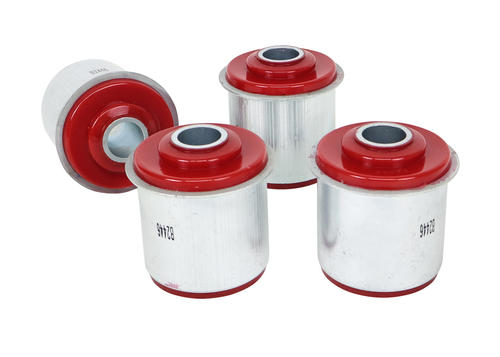

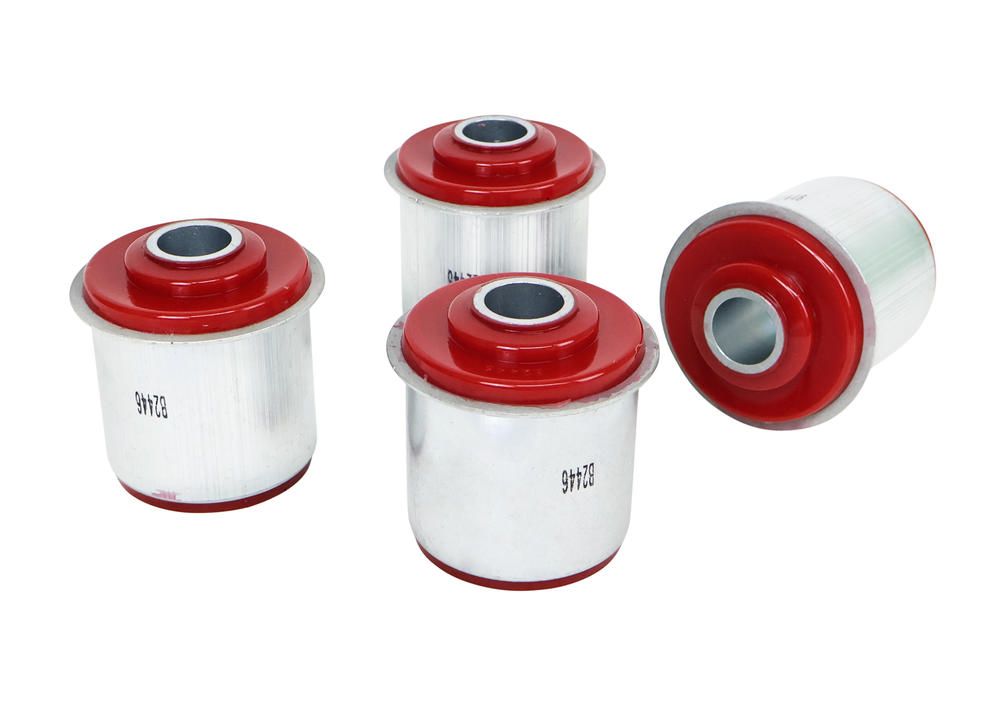

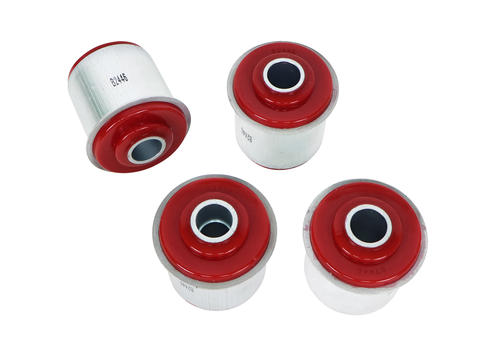

| Kit Contents: | 12 Bushings, 4 Tubes |
| Install Guide: | Download Here |
| Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
| 1 | 12 | 62.8 mm | 29.5 mm | 59 mm | 4.9 mm | 59 mm | 4 | 30x21.2x68 mm | click here |
| 1 | 12 | 47.8 mm | 30 mm | 23.7 mm | 13.2 mm | 70 mm | 4 | 30x21.2x68 mm | click here |
| 7 | 12 | 80 mm | 30.2 mm | 6.2 mm | 4 | 30x21.2x68 mm | click here | ||
| Bush Type | 1 | 1 | 7 |
| Bush Qty | 12 | 12 | 12 |
| OD (A) | 62.8 mm | 47.8 mm | 80 mm |
| ID (B) | 29.5 mm | 30 mm | 30.2 mm |
| L (C) | 59 mm | 23.7 mm | 6.2 mm |
| FL (D) | 4.9 mm | 13.2 mm | |
| FLOD (E) | 59 mm | 70 mm | |
| C/Tube QTY | 4 | 4 | 4 |
| C/Tube Size | 30x21.2x68 mm | 30x21.2x68 mm | 30x21.2x68 mm |
| Similar Bushing Size | click here | click here | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 4 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
| Not Applicable | Not Applicable | 07 | Odd A | 10 | Even A | M16 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 4 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) | Not Applicable |
| Press Plate # (IN) | Not Applicable |
| Press Sleeve # (OUT) | 07 |
| Press Plate # (OUT) | Odd A |
| Support Sleeve # | 10 |
| Press Plate # | Even A |
| Threaded Rod # | M16 |
| Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
