Nolathane
48133
Front Axle Panhard Rod - Bushing Kit
*** CONTACT NOLATHANE ***
48133
Front Axle Panhard Rod - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Eliminate wheel shimmy and ensure accurate axle location with Nolathane superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.
Kits Required: 1
Warranty: lifetime warranty

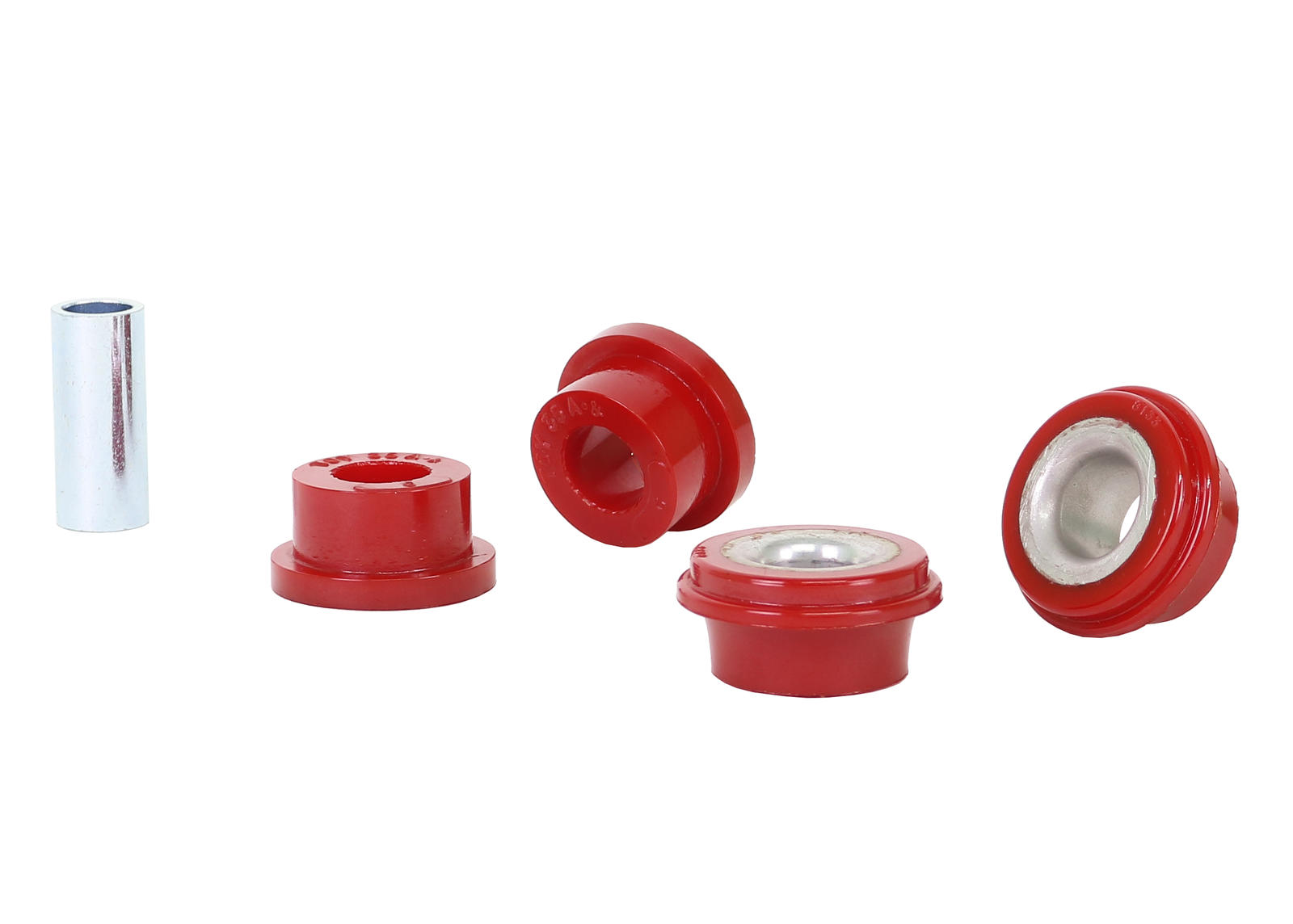

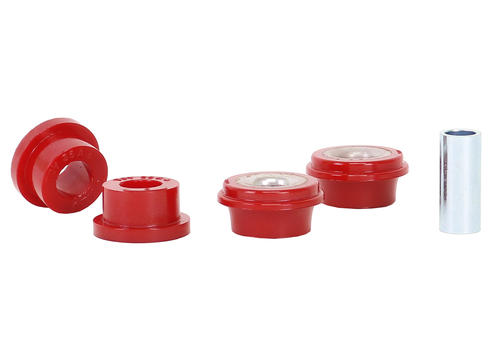

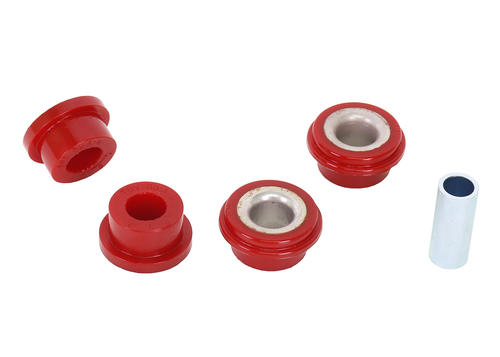

Kit Contents: 4 Bushings, 1 Tube
Important Notes
  • Suits models to - 08/1987
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
3 4 AI=44 AII=36.5 mm 14.3 mm 23.5 mm 8.75 mm 49.2 mm 1 19x14.3x45 mm click here
1 4 35.5 mm 19 mm 22.2 mm 5.5 mm 44 mm 1 19x14.3x45 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Type 3 - Half Tapered Cotton Reel Bush
Type 1 - Shackle Bushing
Kit Specifications
Bush Type 3 1
Bush Qty 4 4
OD (A) AI=44 AII=36.5 mm 35.5 mm
ID (B) 14.3 mm 19 mm
L (C) 23.5 mm 22.2 mm
FL (D) 8.75 mm 5.5 mm
FLOD (E) 49.2 mm 44 mm
C/Tube QTY 1 1
C/Tube Size 19x14.3x45 mm 19x14.3x45 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Type 3 - Half Tapered Cotton Reel Bush
Type 1 - Shackle Bushing
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
48133
Vehicle Applications
48133 is suitable for the following vehicles. Select a vehicle for specific fitment details:
TOYOTA LAND CRUISER 1984-1996 - LAND CRUISER BUNDERA (COIL FRONT AND REAR)
TOYOTA LAND CRUISER 1990-1996 - LAND CRUISER 70 SERIES (COIL FRONT AND REAR)
