Nolathane
46241
Rear Axle Trailing Arm - Front Bushing Kit
*** CONTACT NOLATHANE ***
46241
Rear Axle Trailing Arm - Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: Limited Lifetime Warranty

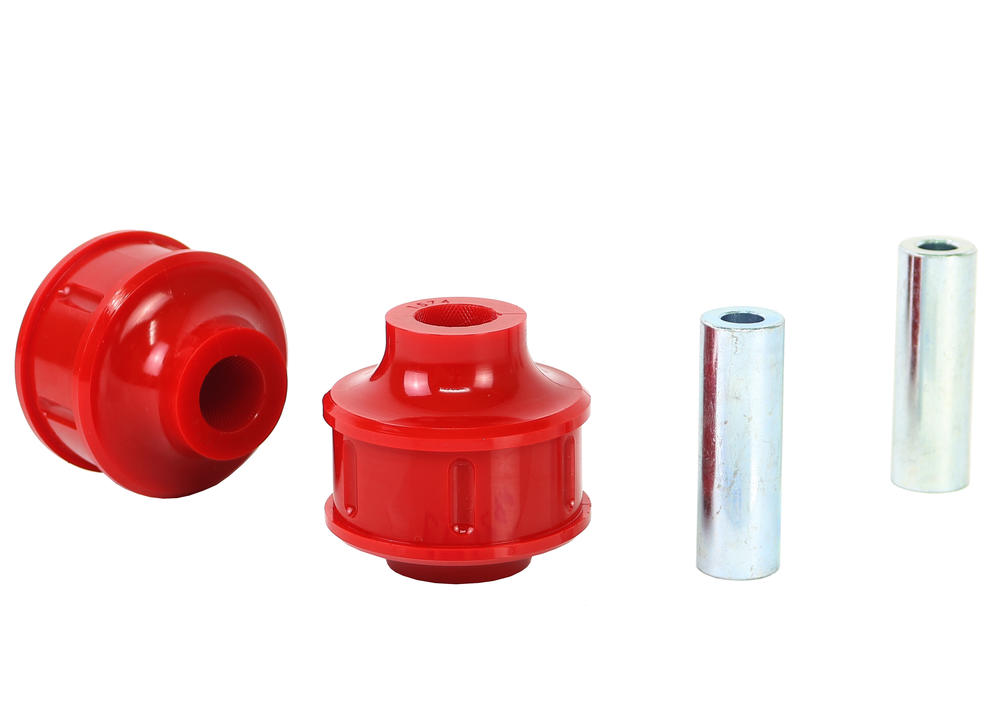

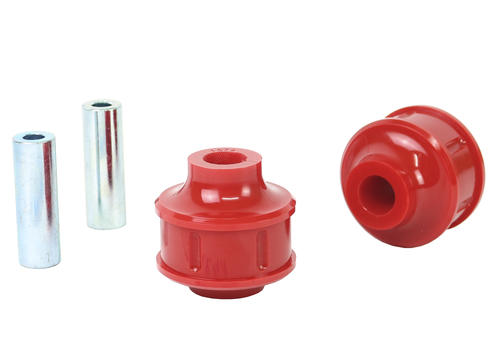

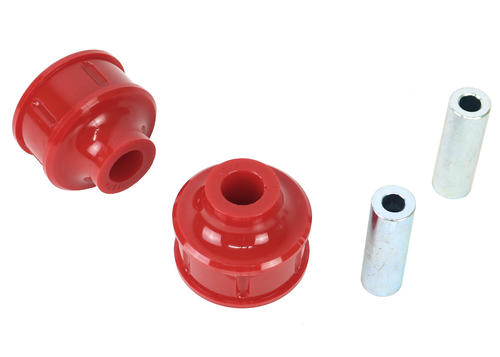

Kit Contents: 2 Shell Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Articulation voids deliver necessary suspension articulation and/or compression under loads.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Articulation voids deliver necessary suspension articulation and/or compression under loads.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 70 mm 25 mm 78 mm 14 mm 40 mm 2 25.4x12.2x76 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 70 mm
ID (B) 25 mm
L (C) 78 mm
FL (D) 14 mm
FLOD (E) 40 mm
C/Tube QTY 2
C/Tube Size 25.4x12.2x76 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
10 Even A 09 Odd A 12 Even B M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve # (IN) 10
Press Plate # (IN) Even A
Press Sleeve # (OUT) 09
Press Plate # (OUT) Odd A
Support Sleeve # 12
Press Plate # Even B
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

46241
Vehicle Applications
46241 is suitable for the following vehicles. Select a vehicle for specific fitment details:
MITSUBISHI FTO 1994-2001 - FTO DE
MITSUBISHI LANCER 1992-1996 - LANCER EVO I, II, III
MITSUBISHI LANCER 1992-1996 - LANCER CC SEDAN AND COUPE
MITSUBISHI LANCER 1992-1996 - LANCER GSR CC
MITSUBISHI LANCER 1995-2004 - LANCER CE SEDAN, COUPE AND HATCH
MITSUBISHI MIRAGE 1995-2004 - MIRAGE CE
PROTON M21 1995-2000 - M21 C99
PROTON PERSONA 1994-2008 - PERSONA C9_S, C9_M
PROTON SATRIA 1997-2006 - SATRIA C9_M
PROTON WIRA 1995-2007 - WIRA C97, C98
