45215
Front Axle Control Arm Upper - Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
45215
Front Axle Control Arm Upper - Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.
Kits Required: 1
Warranty: Limited Lifetime Warranty

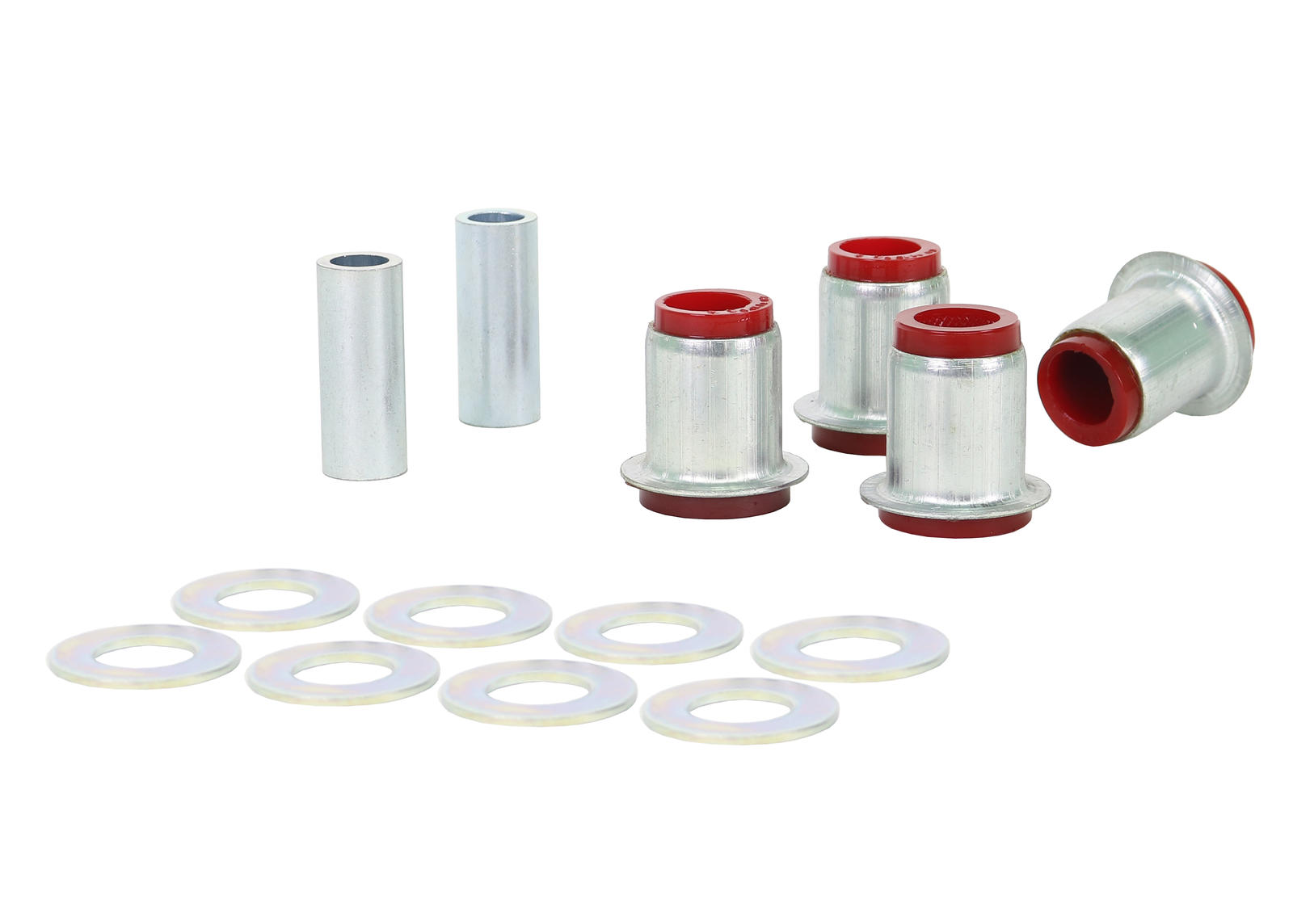

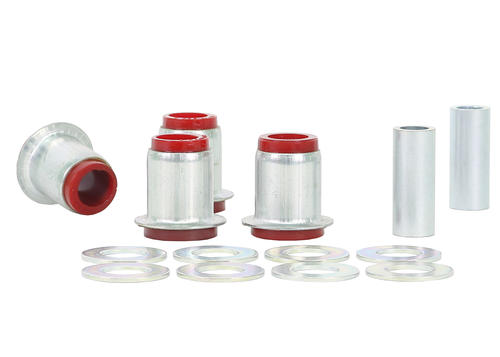

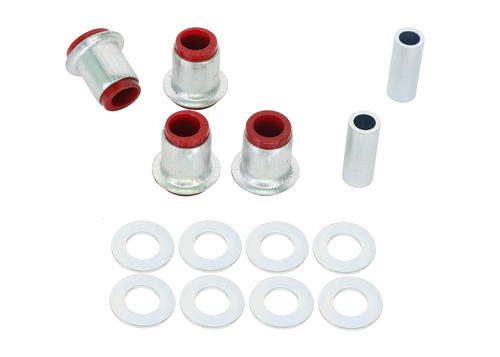

Kit Contents: 4 Shell Bushings, 4 Tubes, 8 Washers
Important Notes
  • Performance Alignment
  • Caster adjustment
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓

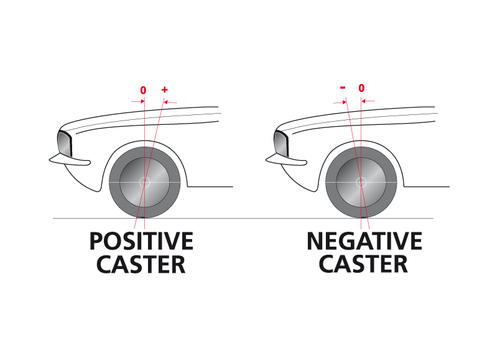

Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
17 4 AI=30 AII=29 mm 19 mm 44.5 mm 5.5 mm 33.3 mm 4 19x13x48 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 4
OD (A) AI=30 AII=29 mm
ID (B) 19 mm
L (C) 44.5 mm
FL (D) 5.5 mm
FLOD (E) 33.3 mm
C/Tube QTY 4
C/Tube Size 19x13x48 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
02 Even A 01 Odd A 04 Even A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 02
Press Plate # (IN) Even A
Press Sleeve # (OUT) 01
Press Plate # (OUT) Odd A
Support Sleeve # 04
Press Plate # Even A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

45215
Vehicle Applications
45215 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHRYSLER CHRYSLER 1962-1976 - VALIANT SV1, AP5, AP6, VC, VE, VF, VG, VH, VJ, VK
CHRYSLER VALIANT 1962-1962 - VALIANT RV1
CHRYSLER VALIANT 1962-1976 - VALIANT SV1, AP5, AP6, VC, VE, VF, VG, VH, VJ, VK
CHRYSLER VALIANT 1976-1981 - VALIANT CL, CM
CHRYSLER VALIANT CHARGER 1971-1976 - VALIANT CHARGER VH, VJ, VK
CHRYSLER VALIANT CHARGER 1976-1979 - VALIANT CHARGER CL
