Nolathane 49276 Front Axle Subframe - Front Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49276
Front Axle Subframe - Front Bushing Kit
*** CONTACT NOLATHANE ***
49276
Front Axle Subframe - Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:

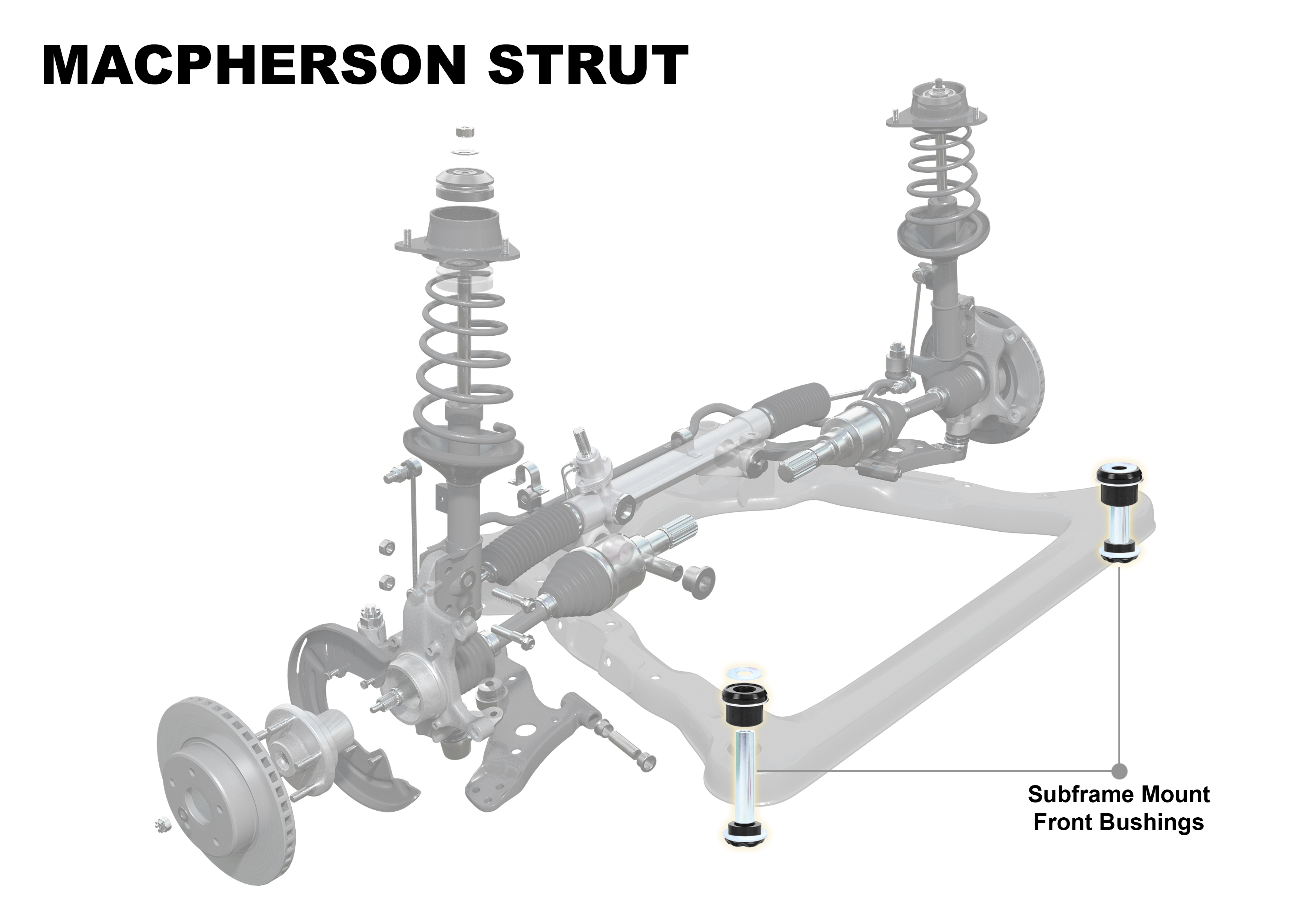

The Nolathane kit replaces the bushings in the front subframe front bushing to dramatically reduce front cross member misalignment and movement which allows a more positive feel from the front end during cornering.
Kits Required: 1
Warranty: lifetime warranty

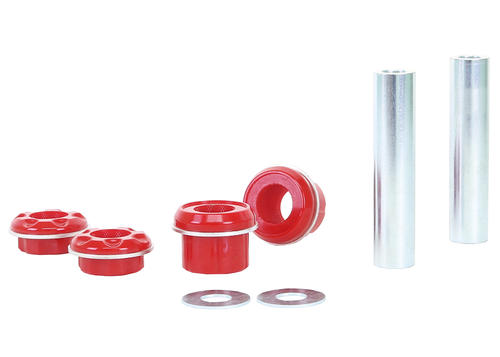

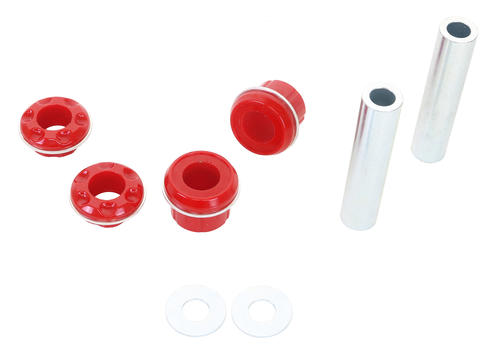

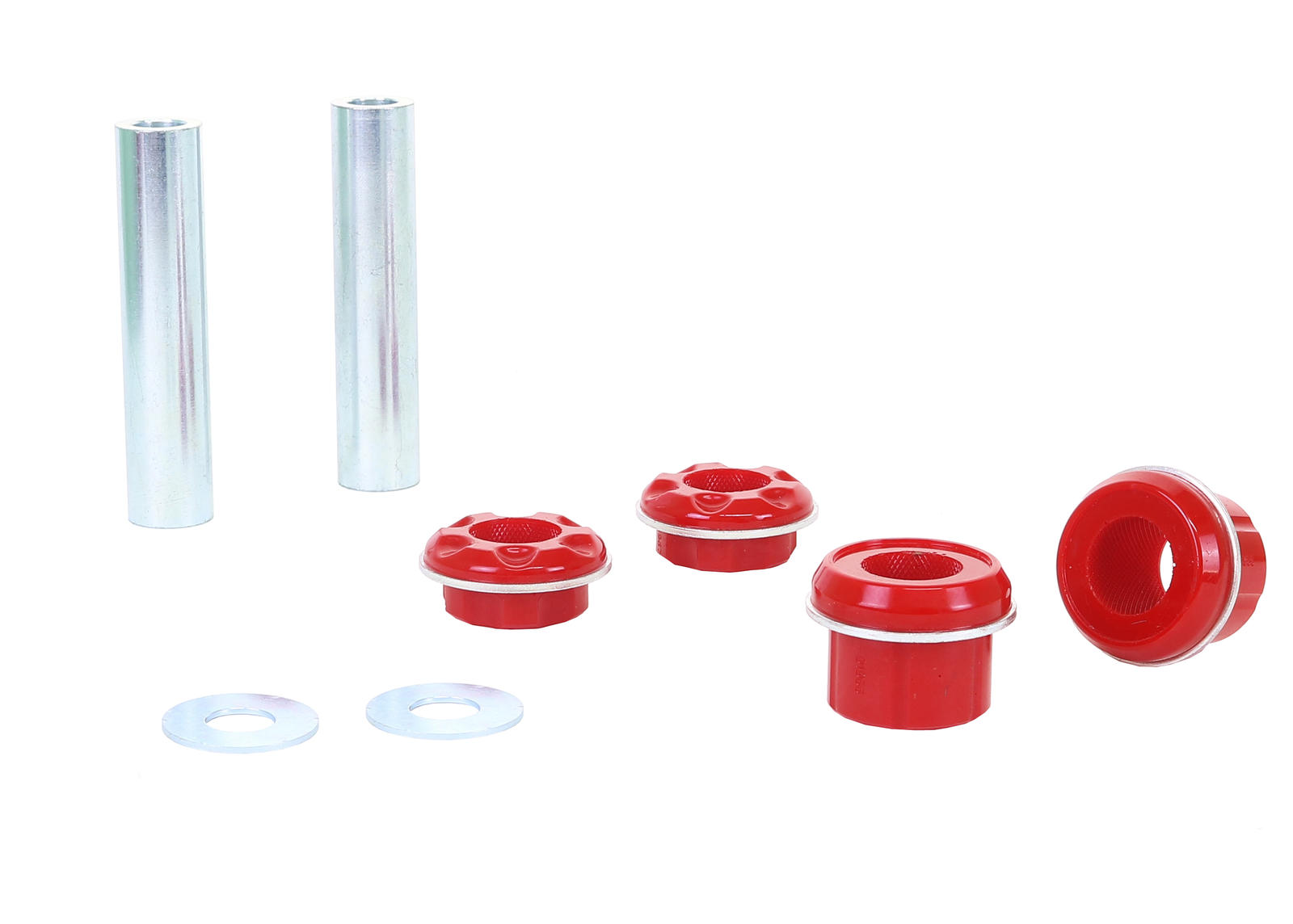

Kit Contents: 4 Bushings, 2 Tubes, 2 Washers
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

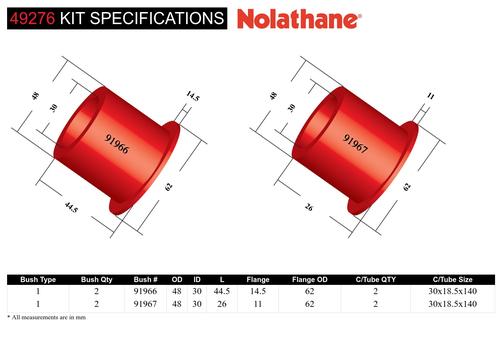

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 48 mm 30 mm 44.5 mm 14.5 mm 62 mm 2 30x18.5x140 mm click here
1 4 48 mm 30 mm 26 mm 11 mm 62 mm 2 30x18.5x140 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 48 mm 48 mm
ID (B) 30 mm 30 mm
L (C) 44.5 mm 26 mm
FL (D) 14.5 mm 11 mm
FLOD (E) 62 mm 62 mm
C/Tube QTY 2 2
C/Tube Size 30x18.5x140 mm 30x18.5x140 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 05 Odd A 08 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs DIY - With specialist tools
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 05
Press Plate # (OUT) Odd A
Support Sleeve # 08
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Larko Talks Subframe And Crossmember Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Larko Talks Subframe And Crossmember Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
49276
Vehicle Applications
49276 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN DUALIS/DUALIS + 2 2007-2013 - DUALIS J10
NISSAN X-TRAIL 2007-2014 - X-TRAIL T31
RENAULT KOLEOS 2008-2016 - KOLEOS HY
