Nolathane 49194 Rear Axle Subframe - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49194
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
49194
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.
Kits Required: 1
Warranty: lifetime warranty

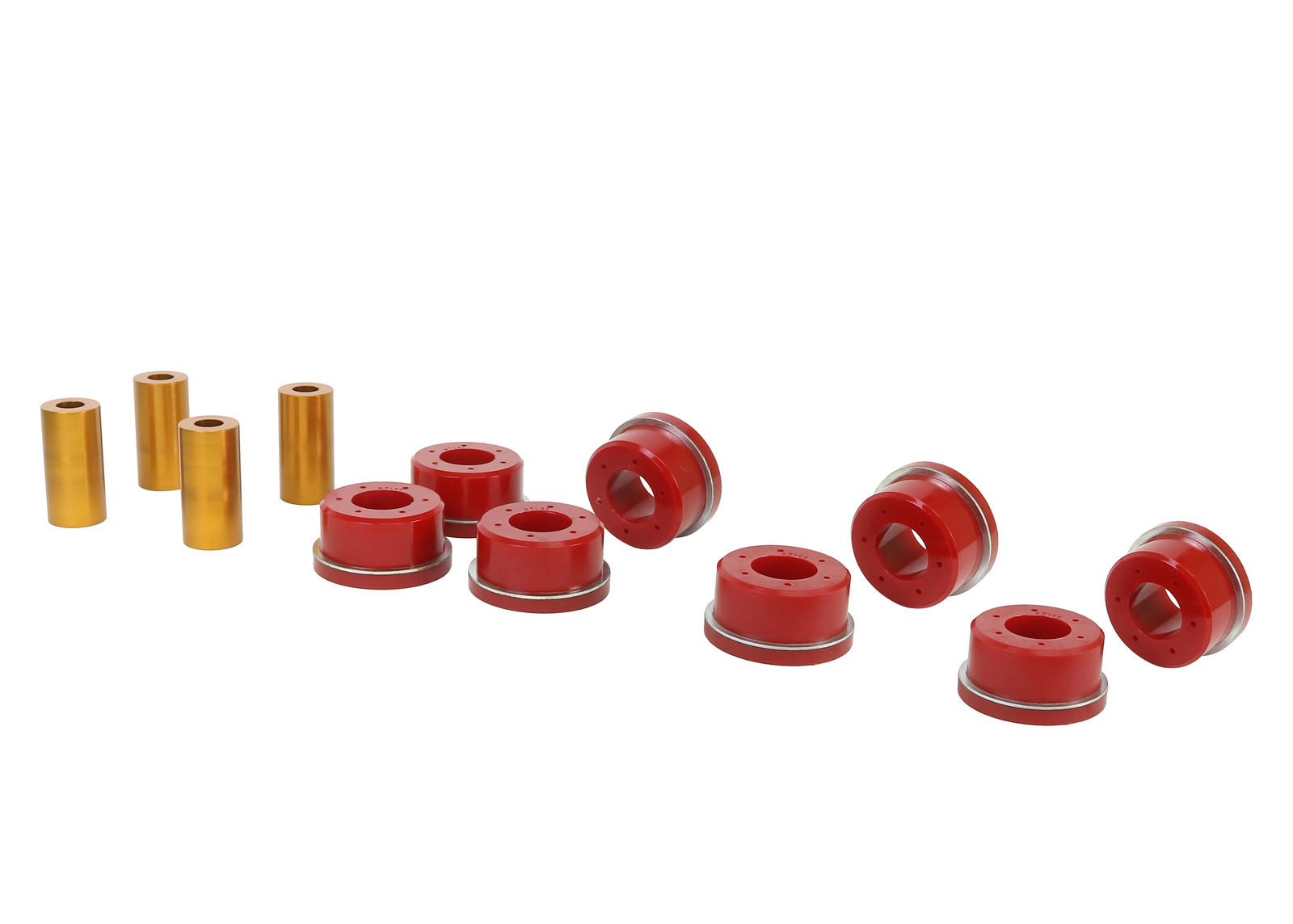

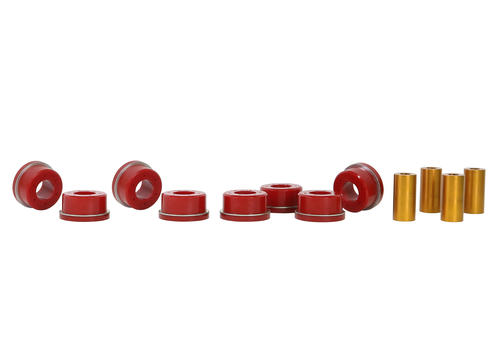

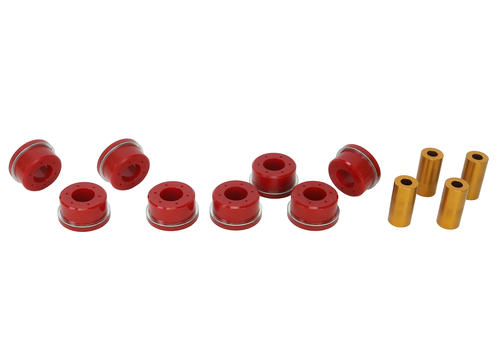

Kit Contents: 8 Bushings, 4 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 8 80 mm 39.6 mm 40.7 mm 9 mm 89.8 mm 4 40x19x82 mm click here
1 8 80 mm 39.6 mm 44.2 mm 12.7 mm 89.8 mm 4 40x19x82 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 8 8
OD (A) 80 mm 80 mm
ID (B) 39.6 mm 39.6 mm
L (C) 40.7 mm 44.2 mm
FL (D) 9 mm 12.7 mm
FLOD (E) 89.8 mm 89.8 mm
C/Tube QTY 4 4
C/Tube Size 40x19x82 mm 40x19x82 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 11 Odd B 14 Even B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 11
Press Plate # (OUT) Odd B
Support Sleeve # 14
Press Plate # Even B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Larko Talks Subframe And Crossmember Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Larko Talks Subframe And Crossmember Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
49194
Vehicle Applications
49194 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUBARU IMPREZA 2007-2011 - IMPREZA GE, GH
SUBARU IMPREZA 2007-2011 - IMPREZA WRX GE, GH
SUBARU IMPREZA 2008-2011 - IMPREZA WRX STI GR
SUBARU IMPREZA 2011-2014 - IMPREZA WRX GV, GR
SUBARU IMPREZA 2011-2014 - IMPREZA WRX STI GV, GR
SUBARU IMPREZA 2011-2016 - IMPREZA GJ, GP
