Nolathane 49192 Rear Axle Differential Mount - Front Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49192
Rear Axle Differential Mount - Front Bushing Kit
*** CONTACT NOLATHANE ***
49192
Rear Axle Differential Mount - Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:

Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kits Required: 1
Warranty: lifetime warranty

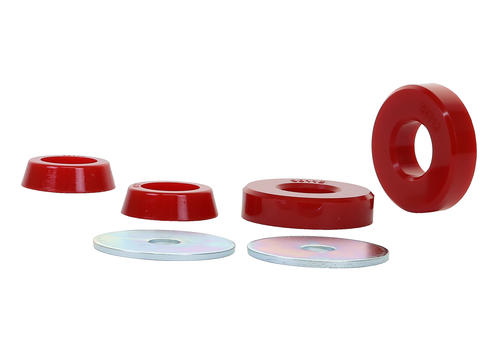

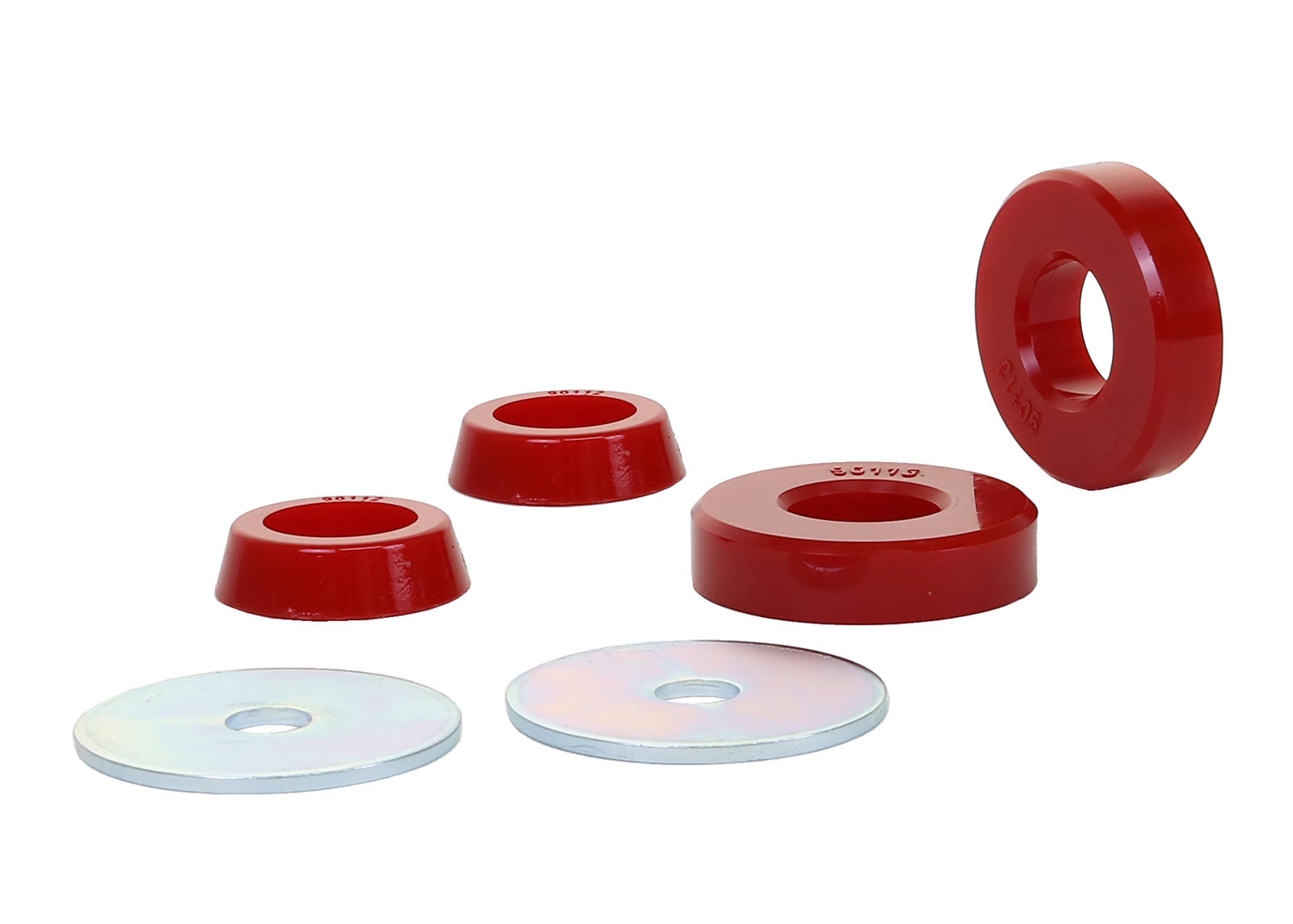

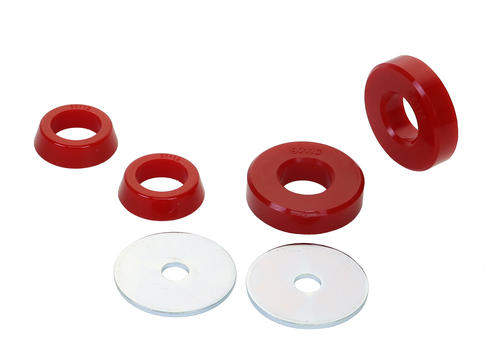

Kit Contents: 4 Bushings, 2 Washers
Install Guide: Download Here
Important Notes
  • Insert
  • Installs into voiding of original bushing - may induce NVH
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves steering, corner precision, and driving experience; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
7 4 63.2 mm 27.9 mm 15 mm click here
3 4 AI=46.6 AII=40.7 mm 28.4 mm 12.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

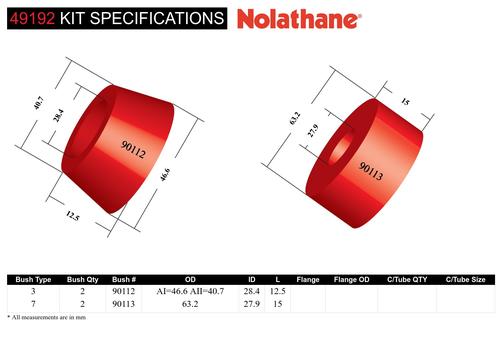

Kit Specifications
Bush Type 7 3
Bush Qty 4 4
OD (A) 63.2 mm AI=46.6 AII=40.7 mm
ID (B) 27.9 mm 28.4 mm
L (C) 15 mm 12.5 mm
FL (D)
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 1.5 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 03 Odd A 06 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 1.5 hrs DIY - With specialist tools
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 03
Press Plate # (OUT) Odd A
Support Sleeve # 06
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Diff Solutions

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Diff Solutions

Larko Talks Bushing Lubrication
49192
Vehicle Applications
49192 is suitable for the following vehicles. Select a vehicle for specific fitment details:
LEXUS GS 1993-1997 - GS JZS147
LEXUS GS 1997-2000 - GS JZS160, UZS160
LEXUS GS 2000-2005 - GS JZS160, UZS160
LEXUS GS 2005-2011 - GS GRS190, URS190, UZS190
LEXUS IS 2005-2013 - IS ALE20, GSE20, 21, USE20
LEXUS IS C 2009-2015 - IS C GSE20, 21
LEXUS LS 1989-1995 - LS UCF10
LEXUS LS 2000-2006 - LS UCF30
LEXUS SC 1991-2000 - SC UZZ30, JZZ31
TOYOTA ARISTO 1990-1997 - ARISTO JZS143, 147
TOYOTA CROWN 2003-2008 - CROWN MS180
TOYOTA MARK X 2004-2009 - MARK X X120
TOYOTA SOARER 1990-2000 - SOARER Z30, 31, 32
TOYOTA SUPRA 1993-2002 - SUPRA JZA80
