Nolathane 49189 Rear Axle Differential Mount - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49189
Rear Axle Differential Mount - Bushing Kit
*** CONTACT NOLATHANE ***
49189
Rear Axle Differential Mount - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:

Critical service item for the rear suspension. Nolathane's superior replacement solution to the worn and in worst cases disintegrated rubber factory mounts. Driveline clunks, shudders on take off are all symptoms of worn diff mounts. Nolathane's clever design and superior material formulation delivers unrivalled durability, performance and that as new feeling.
Kits Required: 1
Warranty: lifetime warranty

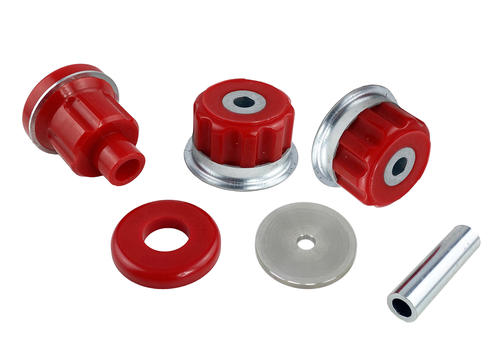

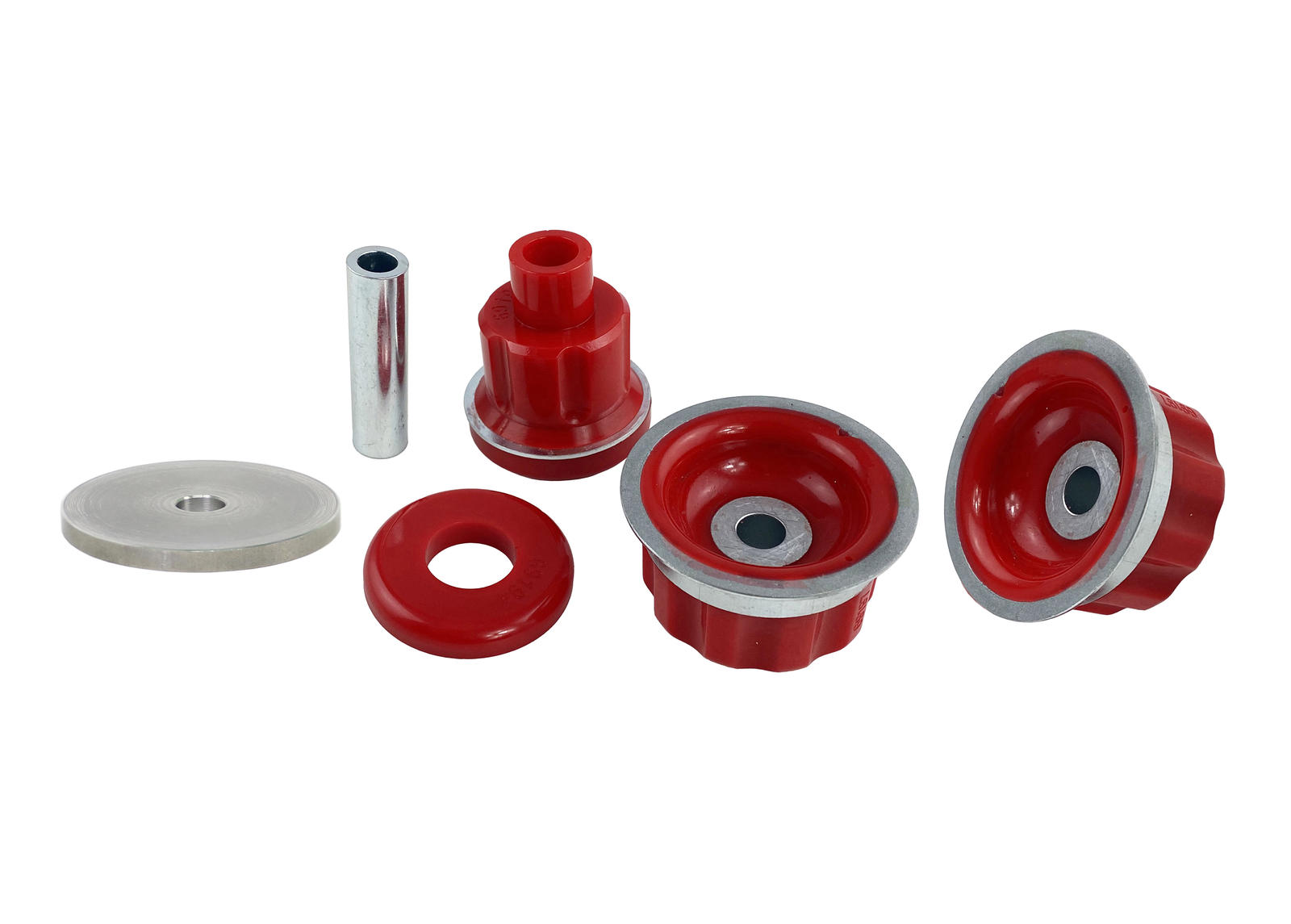

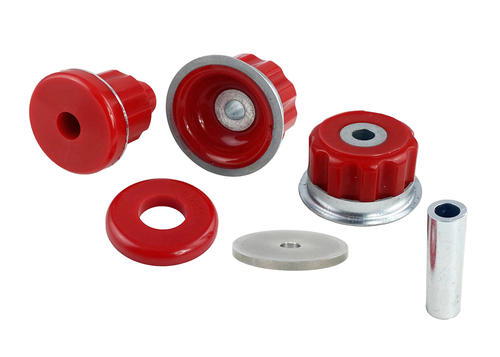

Kit Contents: 4 Bushings, 1 Tube, 1 Washer
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

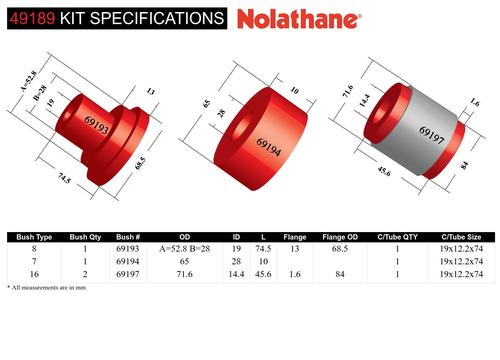

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
7 4 65 mm 28 mm 10 mm 1 19x12.2x74 mm click here
16 4 71.6 mm 14.4 mm 45.6 mm 1.6 mm 84 mm 1 19x12.2x74 mm click here
8 4 AI=52.8 AII=28 mm 19 mm 74.5 mm 13 mm 68.5 mm 1 19x12.2x74 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 7 16 8
Bush Qty 4 4 4
OD (A) 65 mm 71.6 mm AI=52.8 AII=28 mm
ID (B) 28 mm 14.4 mm 19 mm
L (C) 10 mm 45.6 mm 74.5 mm
FL (D) 1.6 mm 13 mm
FLOD (E) 84 mm 68.5 mm
C/Tube QTY 1 1 1
C/Tube Size 19x12.2x74 mm 19x12.2x74 mm 19x12.2x74 mm
Similar Bushing Size click here click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
10 Even A 09 Odd A 12 Even B M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist
Press Sleeve # (IN) 10
Press Plate # (IN) Even A
Press Sleeve # (OUT) 09
Press Plate # (OUT) Odd A
Support Sleeve # 12
Press Plate # Even B
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Diff Solutions
Videos

How Hard Is Nolathane?

Diff Solutions
49189
Vehicle Applications
49189 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 1999-2002 - FAIRLANE AU
FORD FAIRMONT 1998-2002 - FAIRMONT AU SEDAN IRS
FORD FALCON 1998-2002 - FALCON AU SEDAN IRS
FORD LTD 1999-2002 - LTD AU
FORD TICKFORD TE 50 1999-2002 - TICKFORD TE 50 AU
FORD TICKFORD TL 50 1999-2002 - TICKFORD TL 50 AU
FORD TICKFORD TS 50 1999-2002 - TICKFORD TS 50 AU
