Nolathane 49186 Rear Axle Differential Mount - Front Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49186
Rear Axle Differential Mount - Front Bushing Kit
*** CONTACT NOLATHANE ***
49186
Rear Axle Differential Mount - Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Critical service item for the rear suspension. 49186 is an installer friendly differential solution for the high wearing front mounts on the rear of the Falcon/ Territory differential. 2 piece design eliminates the need for press tools to replace factory unit.
Kits Required: 1
Warranty: lifetime warranty

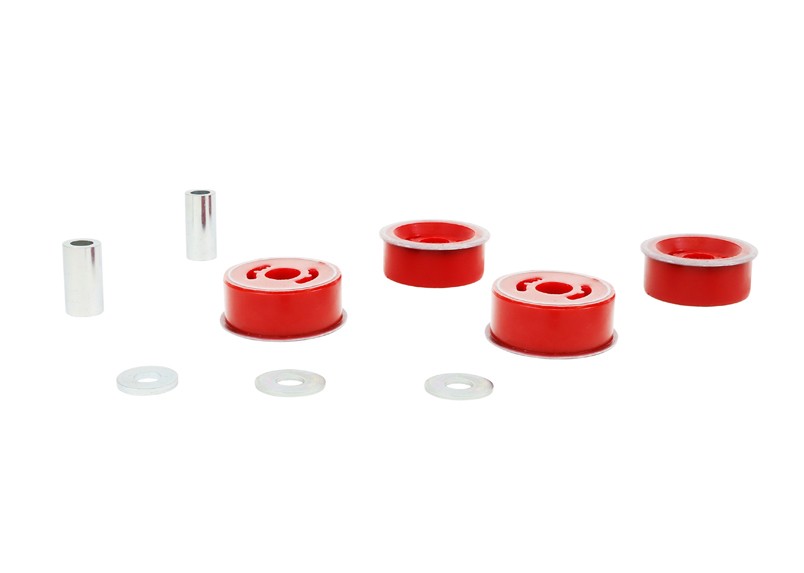

Kit Contents: 4 Bushings, 2 Tubes, 3 Washers
Install Guide: Download Here
Important Notes
  • Fitter friendly design
  • Excludes models with 30mm extension on differential support on drivers side
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 71.8 mm 23.8 mm 29.5 mm 1.8 mm 78 mm 2 24x14x45 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 71.8 mm
ID (B) 23.8 mm
L (C) 29.5 mm
FL (D) 1.8 mm
FLOD (E) 78 mm
C/Tube QTY 2
C/Tube Size 24x14x45 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 09 Odd A 12 Even B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs DIY - With specialist tools
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 09
Press Plate # (OUT) Odd A
Support Sleeve # 12
Press Plate # Even B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Diff Solutions

Mark Larkham Talks Ford Falcon & Territory Rear Suspension

Larko Talks Bushing Lubrication
Videos

Diff Solutions

Mark Larkham Talks Ford Falcon & Territory Rear Suspension

Larko Talks Bushing Lubrication
49186
Vehicle Applications
49186 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 2003-2007 - FAIRLANE BA, BF
FORD FAIRMONT 2002-2008 - FAIRMONT BA, BF
FORD FALCON 2002-2008 - FALCON BA, BF SEDAN
FORD FALCON 2008-2016 - FALCON FG, FGX SEDAN
FORD LTD 2003-2007 - LTD BA, BF
FORD TERRITORY 2004-2011 - TERRITORY SX, SY AWD
FORD TERRITORY 2004-2011 - TERRITORY SX, SY RWD
FORD TERRITORY 2011-2016 - TERRITORY SZ RWD
FORD TERRITORY 2011-2016 - TERRITORY SZ AWD
FPV F6X 2008-2009 - F6X SY
FPV FALCON 2003-2008 - GT / GT-E / GT-P / COBRA BA, BF SEDAN
FPV FALCON 2004-2006 - F6 TYPHOON BA
FPV FALCON 2005-2008 - FORCE 6 BF
FPV FALCON 2006-2008 - FORCE 8 BF
FPV FALCON 2008-2014 - GT / GT-E / GT-F / GT-P FG SEDAN
FPV FALCON 2008-2014 - F6 / F6E FG SEDAN
FPV FALCON 2009-2014 - GS FG SEDAN
