Nolathane 49184 Rear Axle Differential Mount - Front Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49184
Rear Axle Differential Mount - Front Bushing Kit
*** CONTACT NOLATHANE ***
49184
Rear Axle Differential Mount - Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kits Required: 1
Warranty: lifetime warranty

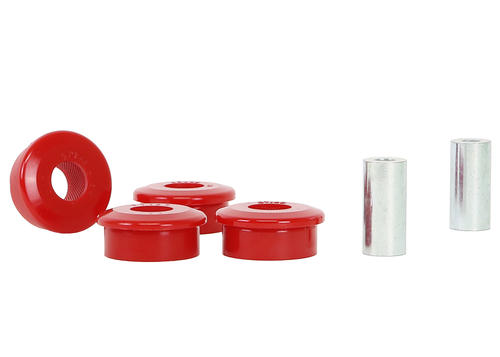

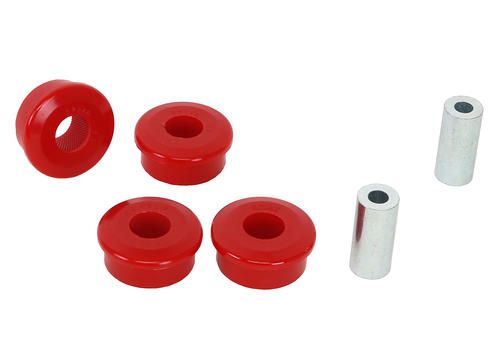

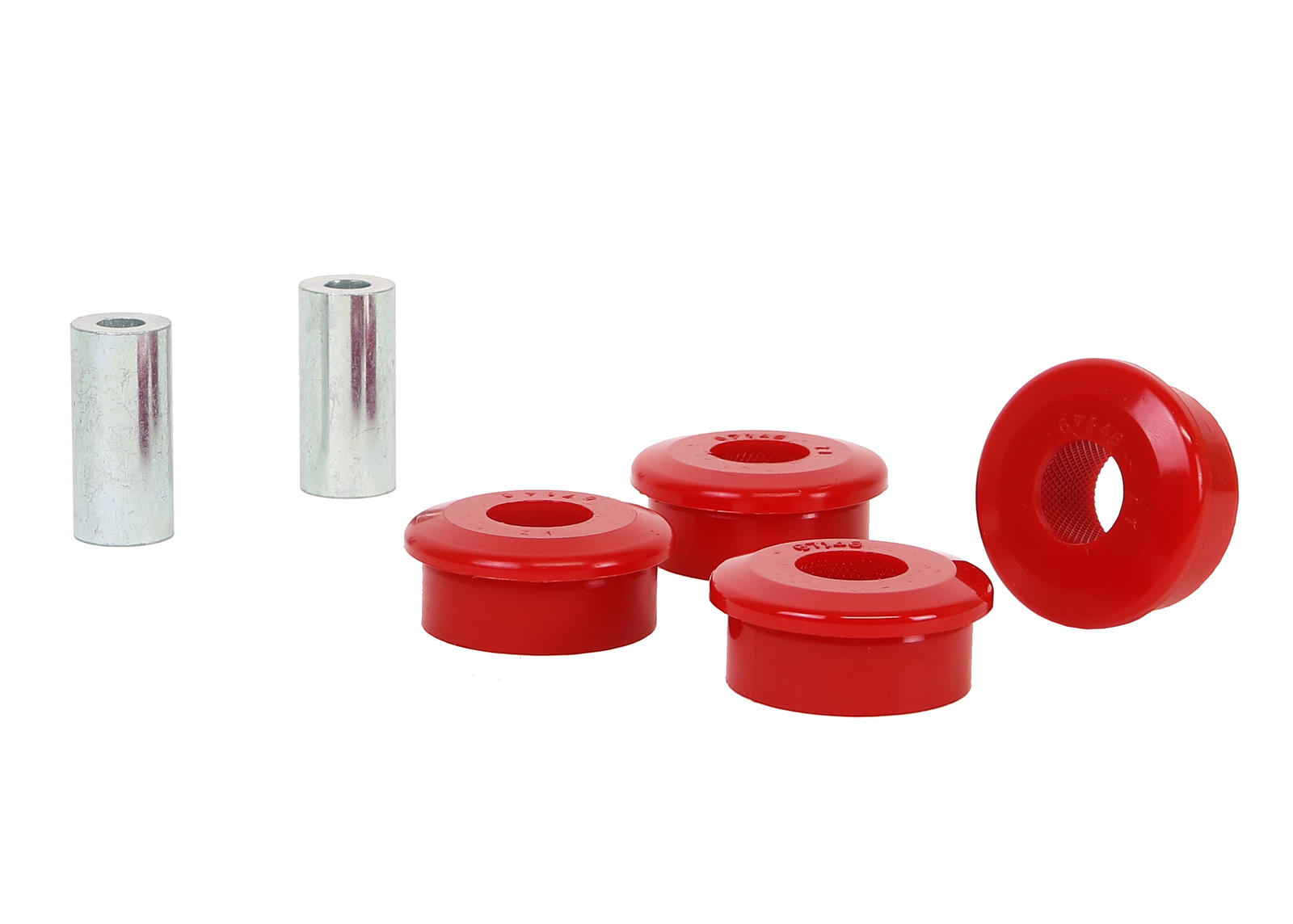

Kit Contents: 4 Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 55.4 mm 25.4 mm 27.1 mm 7.5 mm 63.9 mm 2 25.4x12.3x55 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 55.4 mm
ID (B) 25.4 mm
L (C) 27.1 mm
FL (D) 7.5 mm
FLOD (E) 63.9 mm
C/Tube QTY 2
C/Tube Size 25.4x12.3x55 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 06 Even A 09 Odd A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 06
Press Plate # (OUT) Even A
Support Sleeve # 09
Press Plate # Odd A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Diff Solutions

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Diff Solutions

Larko Talks Bushing Lubrication
49184
Vehicle Applications
49184 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUBARU FORESTER 2008-2013 - FORESTER SH
SUBARU FORESTER 2012-2018 - FORESTER SJ
SUBARU FORESTER 2018-2025 - FORESTER SK
SUBARU IMPREZA 2007-2011 - IMPREZA GE, GH
SUBARU IMPREZA 2007-2011 - IMPREZA WRX GE, GH
SUBARU IMPREZA 2008-2011 - IMPREZA WRX STI GR
SUBARU IMPREZA 2011-2014 - IMPREZA WRX GV, GR
SUBARU IMPREZA 2011-2014 - IMPREZA WRX STI GV, GR
SUBARU IMPREZA 2011-2016 - IMPREZA GJ, GP
SUBARU LEVORG 2014-2020 - LEVORG VM
SUBARU LIBERTY 1998-2003 - LIBERTY BE, BH
SUBARU LIBERTY 2003-2009 - LIBERTY BL, BP
SUBARU LIBERTY 2009-2014 - LIBERTY BM, BR
SUBARU LIBERTY 2015-2020 - LIBERTY BN
SUBARU OUTBACK 1998-2003 - OUTBACK BH
SUBARU OUTBACK 2003-2009 - OUTBACK BP
SUBARU OUTBACK 2014-2020 - OUTBACK BS
SUBARU WRX 2014-2021 - WRX VA
SUBARU WRX 2014-2021 - WRX STI VA
SUBARU WRX 2022-ON - WRX VB, VN
SUBARU XV 2011-2017 - XV GP
