Nolathane 49167 Rear Axle Differential Mount - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49167
Rear Axle Differential Mount - Bushing Kit
*** CONTACT NOLATHANE ***
49167
Rear Axle Differential Mount - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kits Required: 1
Warranty: lifetime warranty

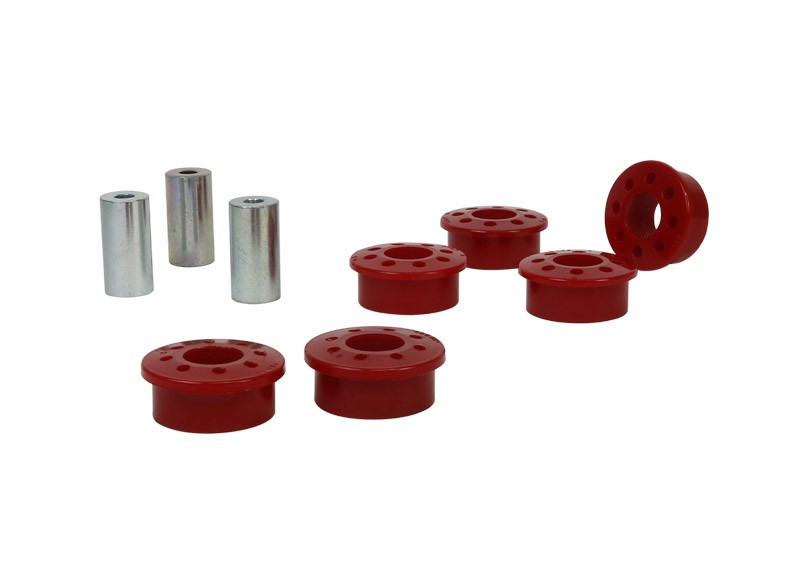

Kit Contents: 6 Bushings, 3 Tubes
Install Guide: Download Here
Important Notes
  • Standard replacement
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 6 60.2 mm 29.8 mm 29.5 mm 7 mm 70 mm 3 30x12.2x60 mm click here
1 6 60.2 mm 29.8 mm 29.5 mm 7.5 mm 70.3 mm 3 30x12.2x60 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 6 6
OD (A) 60.2 mm 60.2 mm
ID (B) 29.8 mm 29.8 mm
L (C) 29.5 mm 29.5 mm
FL (D) 7 mm 7.5 mm
FLOD (E) 70 mm 70.3 mm
C/Tube QTY 3 3
C/Tube Size 30x12.2x60 mm 30x12.2x60 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 07 Odd A 10 Even A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 07
Press Plate # (OUT) Odd A
Support Sleeve # 10
Press Plate # Even A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Diff Solutions

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Diff Solutions

Larko Talks Bushing Lubrication
49167
Vehicle Applications
49167 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHEVROLET CAMARO 2009-2015 - CAMARO 5TH GEN
HDT COMMODORE 2006-2013 - COMMODORE VC RETRO
HDT COMMODORE 2006-2013 - COMMODORE VH RETRO
HDT COMMODORE 2006-2013 - COMMODORE INTERCEPTOR RETRO
HDT COMMODORE 2006-2013 - COMMODORE VL RETRO
HDT COMMODORE 2006-2013 - COMMODORE VK RETRO
HDT COMMODORE 2015-2017 - COMMODORE VK RETRO
HOLDEN CALAIS 2006-2013 - CALAIS VE
HOLDEN CALAIS 2013-2017 - CALAIS VF
HOLDEN CAPRICE 2006-2013 - CAPRICE WM
HOLDEN CAPRICE 2013-2017 - CAPRICE WN
HOLDEN COMMODORE 2006-2013 - COMMODORE VE
HOLDEN COMMODORE 2013-2017 - COMMODORE VF
HOLDEN STATESMAN 2006-2010 - STATESMAN WM
HSV CLUBSPORT 2006-2013 - CLUBSPORT E SERIES
HSV CLUBSPORT 2013-2017 - CLUBSPORT GEN F
HSV GRANGE 2007-2013 - GRANGE WM
HSV GRANGE 2013-2016 - GRANGE WN
HSV GTS 2006-2013 - GTS E SERIES
HSV GTS 2013-2017 - GTS GEN F
HSV GTS 2017-2017 - GTSR GEN F
HSV MALOO 2007-2013 - MALOO E SERIES
HSV MALOO 2013-2017 - MALOO GEN F
HSV SENATOR 2006-2013 - SENATOR E SERIES
HSV SENATOR 2013-2016 - SENATOR GEN F
HSV W427 2008-2013 - W427 E SERIES
