Nolathane 49166 Rear Axle Subframe - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49166
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
49166
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

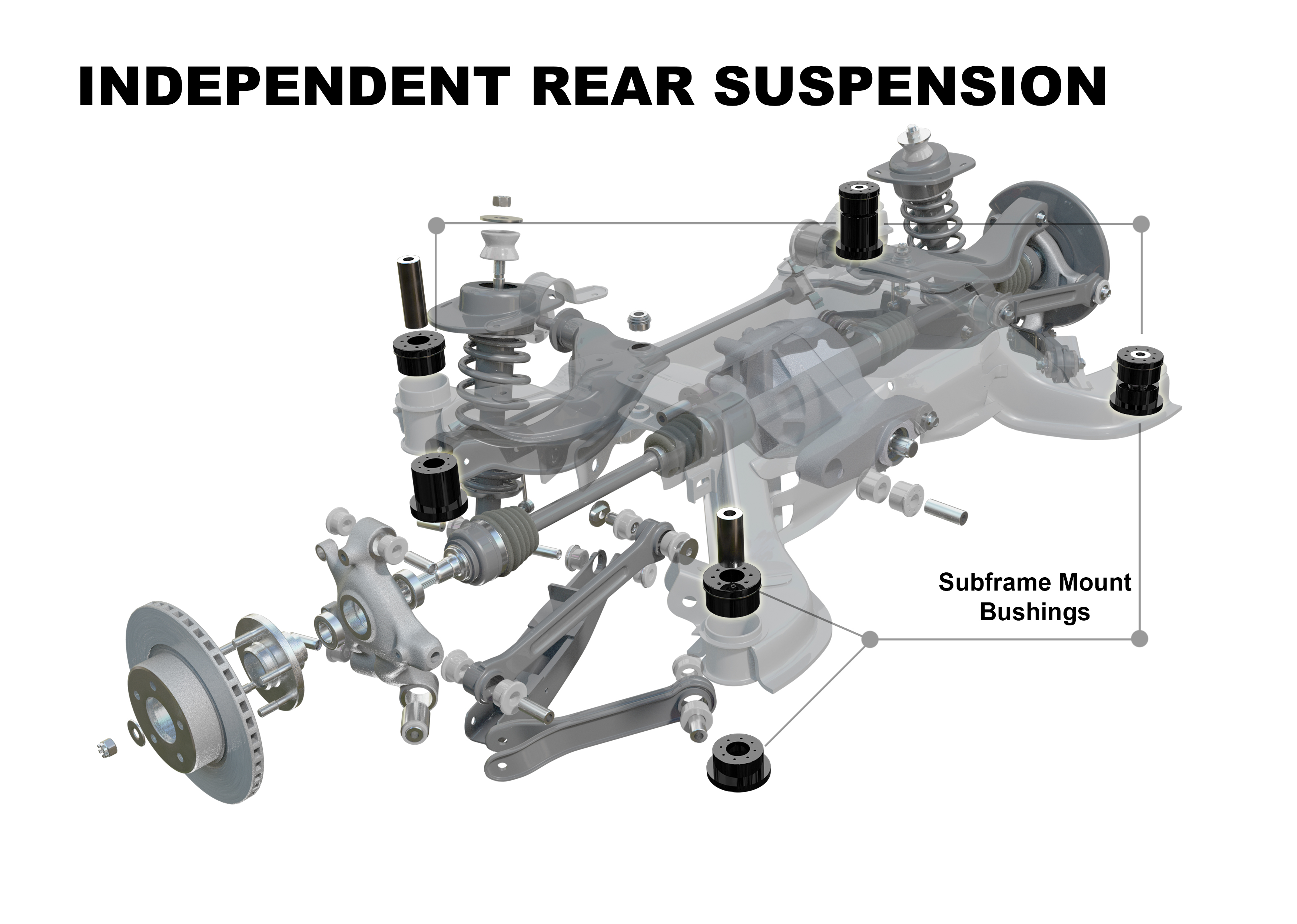

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering.
Kits Required: 1
Warranty: lifetime warranty

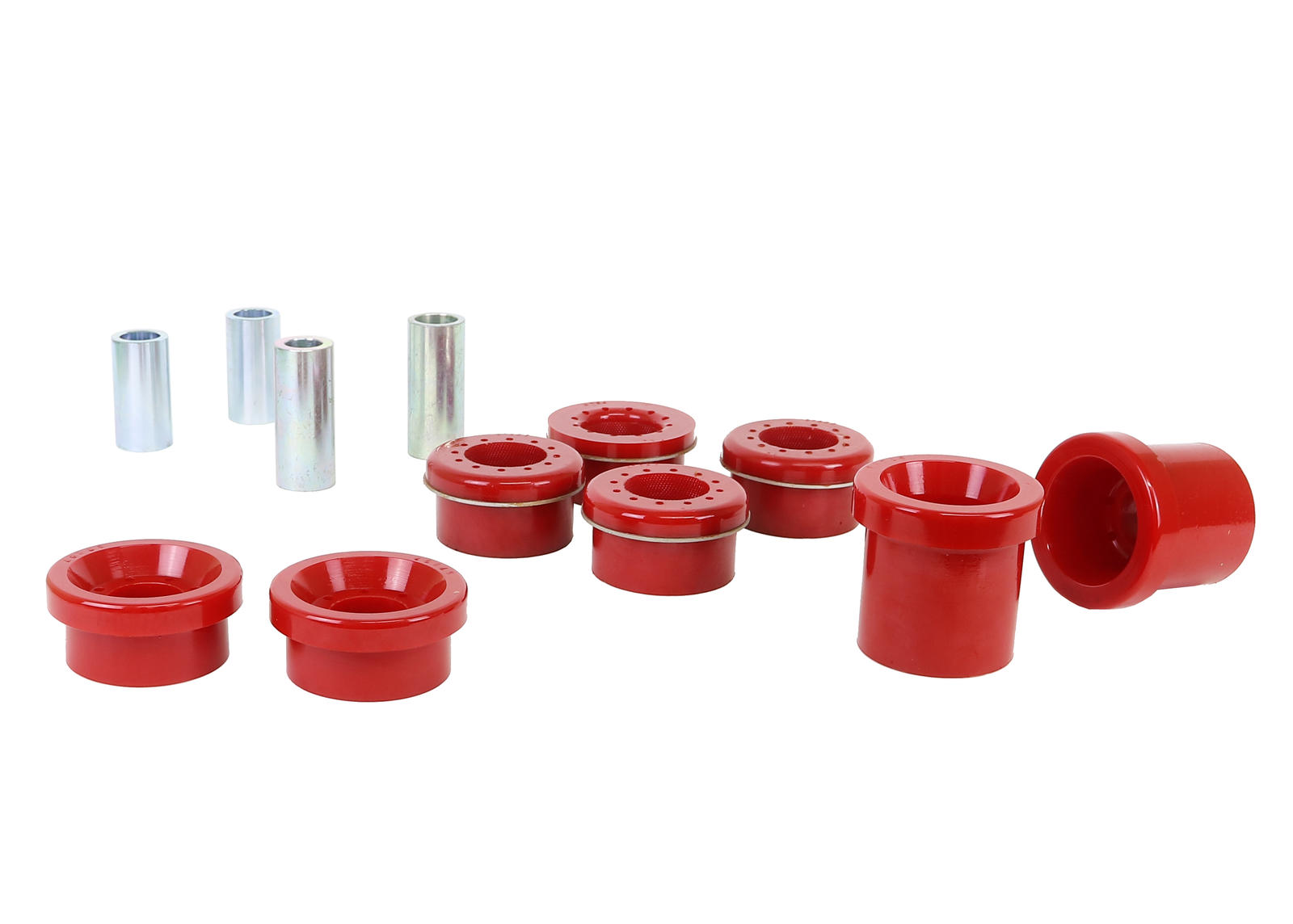

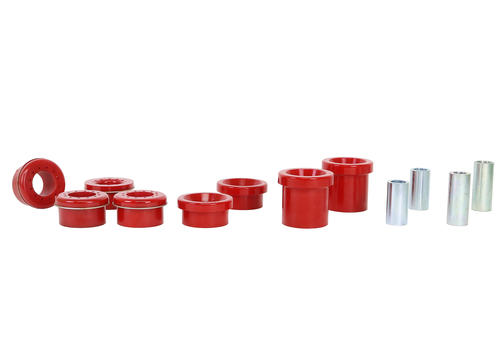

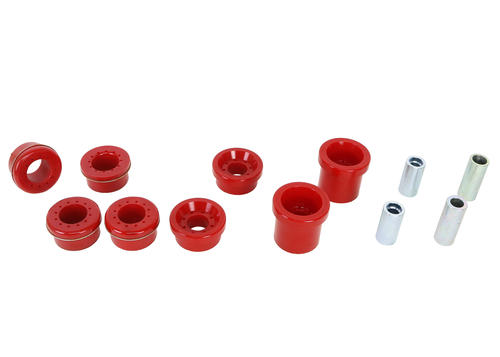

Kit Contents: 8 Bushings, 4 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 8 75 mm 35.2 mm 41 mm 14.5 mm 90 mm 2 / 2 35x22/26x85 / 35x21/25x70 mm click here
1 8 75 mm 35.2 mm 42.2 mm 12.2 mm 80.8 mm 2 / 2 35x22/26x85 / 35x21/25x70 mm click here
1 8 75 mm 35.2 mm 83 mm 17 mm 90 mm 2 / 2 35x22/26x85 / 35x21/25x70 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1 1
Bush Qty 8 8 8
OD (A) 75 mm 75 mm 75 mm
ID (B) 35.2 mm 35.2 mm 35.2 mm
L (C) 41 mm 42.2 mm 83 mm
FL (D) 14.5 mm 12.2 mm 17 mm
FLOD (E) 90 mm 80.8 mm 90 mm
C/Tube QTY 2 / 2 2 / 2 2 / 2
C/Tube Size 35x22/26x85 / 35x21/25x70 mm 35x22/26x85 / 35x21/25x70 mm 35x22/26x85 / 35x21/25x70 mm
Similar Bushing Size click here click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 10 Even A 13 Odd B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 10
Press Plate # (OUT) Even A
Support Sleeve # 13
Press Plate # Odd B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Larko Talks Subframe And Crossmember Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Larko Talks Subframe And Crossmember Bushings

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
49166
Vehicle Applications
49166 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HDT COMMODORE 2006-2013 - COMMODORE VC RETRO
HDT COMMODORE 2006-2013 - COMMODORE VH RETRO
HDT COMMODORE 2006-2013 - COMMODORE INTERCEPTOR RETRO
HDT COMMODORE 2006-2013 - COMMODORE VL RETRO
HDT COMMODORE 2006-2013 - COMMODORE VK RETRO
HDT COMMODORE 2015-2017 - COMMODORE VK RETRO
HOLDEN CALAIS 2006-2013 - CALAIS VE
HOLDEN CALAIS 2013-2017 - CALAIS VF
HOLDEN CAPRICE 2006-2013 - CAPRICE WM
HOLDEN CAPRICE 2013-2017 - CAPRICE WN
HOLDEN COMMODORE 2006-2013 - COMMODORE VE
HOLDEN COMMODORE 2013-2017 - COMMODORE VF
HOLDEN STATESMAN 2006-2010 - STATESMAN WM
HSV CLUBSPORT 2006-2013 - CLUBSPORT E SERIES
HSV GRANGE 2007-2013 - GRANGE WM
HSV GTS 2006-2013 - GTS E SERIES
HSV MALOO 2007-2013 - MALOO E SERIES
HSV MALOO 2013-2017 - MALOO GEN F
HSV SENATOR 2006-2013 - SENATOR E SERIES
HSV W427 2008-2013 - W427 E SERIES
