Nolathane 49151 Front Axle Auxiliary Transfer Shaft - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49151
Front Axle Auxiliary Transfer Shaft - Bushing Kit
*** CONTACT NOLATHANE ***
49151
Front Axle Auxiliary Transfer Shaft - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.
Kits Required: 1
Warranty: lifetime warranty

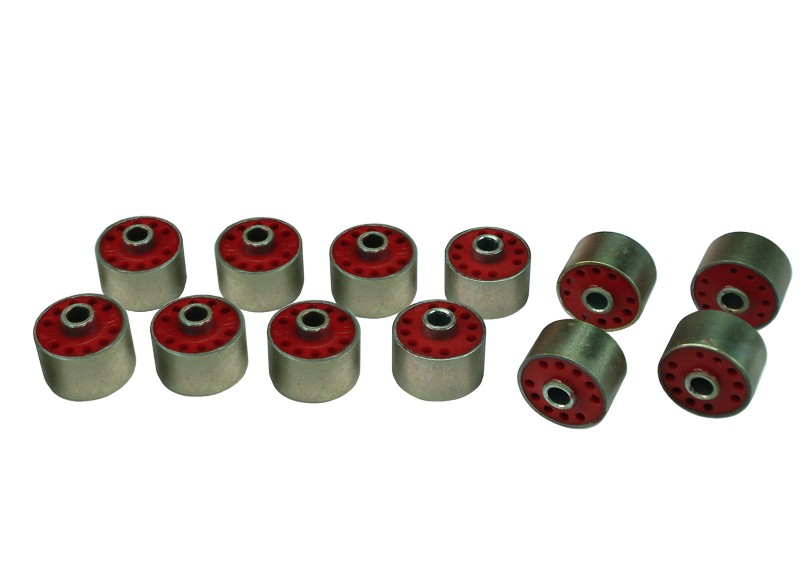

Kit Contents: 12 Shell Bushings
Install Guide: Download Here
Important Notes
  • Shell 33mm OD, crush tube 12mm OD
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Articulation voids deliver necessary suspension articulation and/or compression under loads.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Articulation voids deliver necessary suspension articulation and/or compression under loads.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 12 33.4 mm 7.8 mm 20 mm 5.4 mm 12 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 12
OD (A) 33.4 mm
ID (B) 7.8 mm
L (C) 20 mm
FL (D) 5.4 mm
FLOD (E) 12 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
03 Odd A 02 Even A 05 Odd A Not Applicable NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download
Press Sleeve # (IN) 03
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # Not Applicable
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?
Videos

How Hard Is Nolathane?
49151

Discontinued Product
