Nolathane 49145 Rear Axle Subframe - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49145
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
49145
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.
Kits Required: 1
Warranty: lifetime warranty

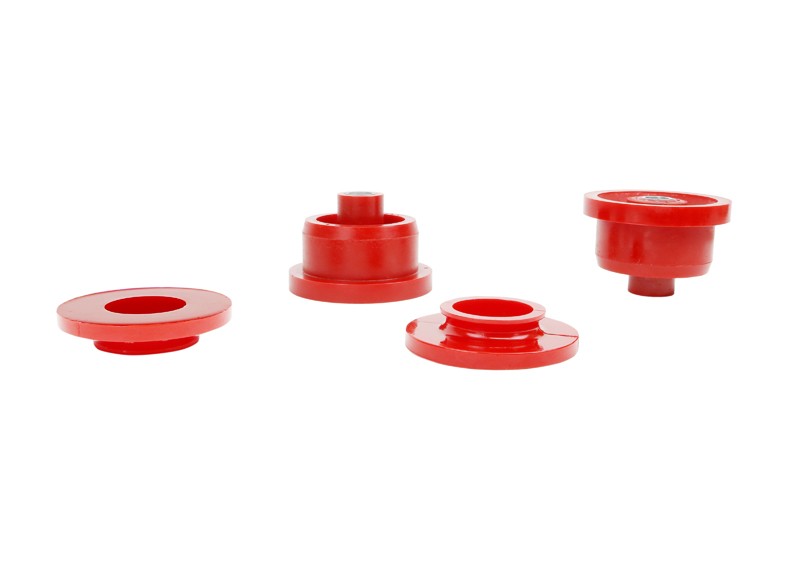

Kit Contents: 4 Bushings
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 96 mm 19.2 mm 77 mm 15 mm 118 mm click here
9 4 110 mm 68 mm 24 mm 9 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 9
Bush Qty 4 4
OD (A) 96 mm 110 mm
ID (B) 19.2 mm 68 mm
L (C) 77 mm 24 mm
FL (D) 15 mm 9 mm
FLOD (E) 118 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 14 Even B 17 Odd B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 14
Press Plate # (OUT) Even B
Support Sleeve # 17
Press Plate # Odd B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Commodore Axle Hop Solutions

Larko Talks Subframe And Crossmember Bushings
Videos

Commodore Axle Hop Solutions

Larko Talks Subframe And Crossmember Bushings
49145
Vehicle Applications
49145 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HDT COMMODORE 2000-2002 - COMMODORE VX AERO SIGNATURE
HOLDEN CALAIS 2000-2002 - CALAIS VX
HOLDEN CALAIS 2002-2004 - CALAIS VY
HOLDEN CALAIS 2004-2006 - CALAIS VZ
HOLDEN CAPRICE 1999-2003 - CAPRICE WH
HOLDEN CAPRICE 2003-2004 - CAPRICE WK
HOLDEN CAPRICE 2004-2006 - CAPRICE WL
HOLDEN COMMODORE 2000-2002 - COMMODORE VX SEDAN AND WAGON
HOLDEN COMMODORE 2000-2002 - COMMODORE VU UTE
HOLDEN COMMODORE 2002-2004 - COMMODORE VY SEDAN AND WAGON
HOLDEN COMMODORE 2002-2004 - COMMODORE VY UTE
HOLDEN COMMODORE 2004-2007 - COMMODORE VZ SEDAN AND WAGON RWD
HOLDEN COMMODORE 2004-2007 - COMMODORE VZ UTE
HOLDEN MONARO 2001-2004 - MONARO V2
HOLDEN MONARO 2004-2006 - MONARO VZ
HOLDEN STATESMAN 1999-2003 - STATESMAN WH
HOLDEN STATESMAN 2003-2004 - STATESMAN WK
HOLDEN STATESMAN 2004-2006 - STATESMAN WL
HSV CLUBSPORT 2000-2002 - CLUBSPORT VX
HSV CLUBSPORT 2002-2004 - CLUBSPORT Y SERIES
HSV CLUBSPORT 2004-2006 - CLUBSPORT Z SERIES
HSV GRANGE 1999-2003 - GRANGE WH
HSV GRANGE 2003-2004 - GRANGE WK
HSV GRANGE 2004-2006 - GRANGE WL
HSV GTO 2001-2004 - GTO V2 COUPE
HSV GTO 2004-2007 - GTO Z SERIES COUPE
HSV GTS 2000-2001 - GTS VX
HSV GTS 2001-2004 - GTS V2 COUPE
HSV GTS 2002-2004 - GTS Y SERIES
HSV MALOO 2001-2002 - MALOO VU
HSV MALOO 2002-2004 - MALOO Y SERIES
HSV MALOO 2004-2007 - MALOO Z SERIES
HSV SENATOR 2000-2002 - SENATOR VX
HSV SENATOR 2002-2004 - SENATOR Y SERIES
HSV SENATOR 2004-2006 - SENATOR Z SERIES
HSV SV300 2001-2001 - SV300 VX
HSV SV6000 2005-2006 - SV6000 Z SERIES
HSV XU6 2000-2002 - XU6 VX
