Nolathane 49008 Rear Axle Subframe - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
49008
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
49008
Rear Axle Subframe - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:

This Nolathane kit replaces the bushings in the rear subframe to dramatically reduce rear cross member misalignment and movement which allows a more positive feel from the rear end during cornering. Recommended for high performance applications.
Kits Required: 1
Warranty: lifetime warranty

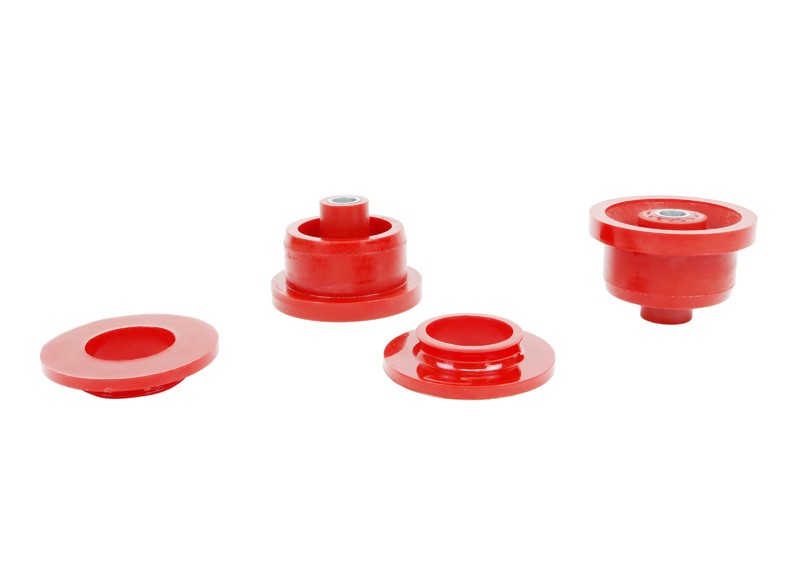

Kit Contents: 4 Bushings
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Engineered to be long-lasting and resistant to oil, heat, and road contaminants; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 96 mm 19.2 mm 77 mm 15 mm 118 mm click here
9 4 110 mm 68 mm 24 mm 9 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 9
Bush Qty 4 4
OD (A) 96 mm 110 mm
ID (B) 19.2 mm 68 mm
L (C) 77 mm 24 mm
FL (D) 15 mm 9 mm
FLOD (E) 118 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 14 Even B 17 Odd B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 14
Press Plate # (OUT) Even B
Support Sleeve # 17
Press Plate # Odd B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Commodore Axle Hop Solutions

Larko Talks Subframe And Crossmember Bushings
Videos

Commodore Axle Hop Solutions

Larko Talks Subframe And Crossmember Bushings
49008
Vehicle Applications
49008 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HDT COMMODORE 1997-2000 - COMMODORE VT SPORT
HOLDEN CALAIS 1991-1993 - CALAIS VP
HOLDEN CALAIS 1993-1997 - CALAIS VR, VS
HOLDEN CALAIS 1997-2000 - CALAIS VT
HOLDEN CAPRICE 1990-1994 - CAPRICE VQ
HOLDEN CAPRICE 1994-1999 - CAPRICE VR, VS
HOLDEN COMMODORE 1991-1993 - COMMODORE VP SEDAN
HOLDEN COMMODORE 1993-1997 - COMMODORE VR, VS SEDAN
HOLDEN COMMODORE 1997-2000 - COMMODORE VT SEDAN AND WAGON
HOLDEN STATESMAN 1990-1994 - STATESMAN VQ
HOLDEN STATESMAN 1994-1999 - STATESMAN VR, VS
HSV CAPRICE 1994-1996 - CAPRICE VR, VS
HSV CLUBSPORT 1991-1993 - CLUBSPORT VP
HSV CLUBSPORT 1993-1997 - CLUBSPORT VR, VS SEDAN
HSV CLUBSPORT 1997-2000 - CLUBSPORT VT
HSV GRANGE 1996-1999 - GRANGE VS
HSV GTS 1994-1997 - GTS VR, VS
HSV GTS 1997-2000 - GTS VT
HSV MANTA 1995-1997 - MANTA VS SEDAN
HSV MANTA 1997-1999 - MANTA VT
HSV SENATOR 1992-1993 - SENATOR VP
HSV SENATOR 1993-1997 - SENATOR VR, VS
HSV SENATOR 1997-2000 - SENATOR VT
HSV STATESMAN 1990-1993 - STATESMAN VQ
HSV STATESMAN 1994-1996 - STATESMAN VR, VS
HSV SV99 1999-2000 - SV99 VT
HSV XU6 1998-2000 - XU6 VT
HSV XU8 1999-1999 - XU8 VT
TOYOTA LEXCEN 1987-1993 - LEXCEN VN, VP SEDAN
TOYOTA LEXCEN 1993-1997 - LEXCEN VR, VS SEDAN
