Nolathane 48151 Front Axle Strut Rod - To Chassis Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
48151
Front Axle Strut Rod - To Chassis Bushing Kit
*** CONTACT NOLATHANE ***
48151
Front Axle Strut Rod - To Chassis Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Not many know but worn suspension bushings have an effect on braking performance. Strut rod bushings in particular tend to absorb most of the loads under braking resulting in severe wear and reduced braking efficiency over time. Replace these worn parts with Nolathane bushings that offer long lasting durability for a safer more predictable vehicle.
Kits Required: 1
Warranty: lifetime warranty

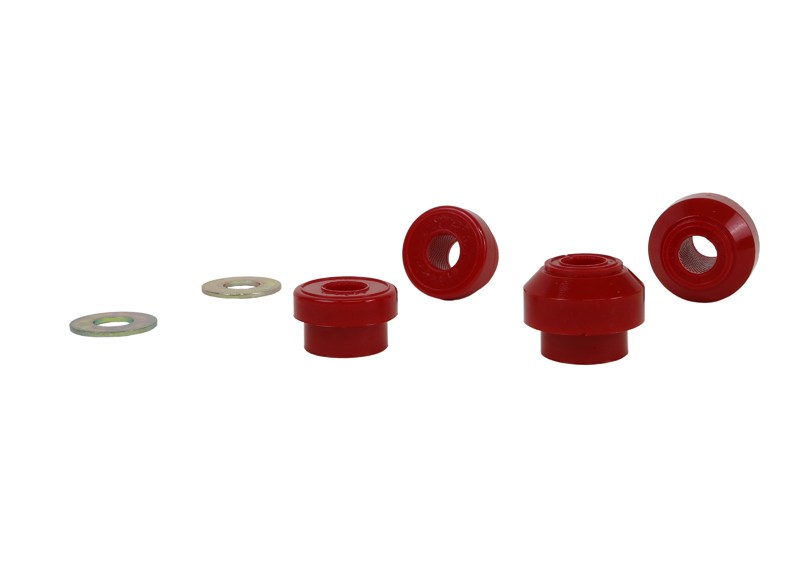

Kit Contents: 4 Bushings, 2 Washers
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 40.3 mm 20 mm 43 mm 27 mm 54 mm click here
1 4 40.2 mm 20.2 mm 29 mm 13 mm 50 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 40.3 mm 40.2 mm
ID (B) 20 mm 20.2 mm
L (C) 43 mm 29 mm
FL (D) 27 mm 13 mm
FLOD (E) 54 mm 50 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 03 Odd A 06 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 03
Press Plate # (OUT) Odd A
Support Sleeve # 06
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
48151
Vehicle Applications
48151 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 1995-1996 - FAIRLANE NF
FORD FAIRLANE 1996-1999 - FAIRLANE NL
FORD FAIRMONT 1994-1996 - FAIRMONT EF WAGON
FORD FAIRMONT 1994-1996 - FAIRMONT EF SEDAN
FORD FAIRMONT 1996-1998 - FAIRMONT EL WAGON
FORD FAIRMONT 1996-1998 - FAIRMONT EL SEDAN
FORD FALCON 1994-1996 - FALCON EF WAGON
FORD FALCON 1994-1996 - FALCON EF SEDAN
FORD FALCON 1996-1998 - FALCON EL SEDAN
FORD FALCON 1996-1999 - FALCON XH UTE AND VAN (STRUT FRONT END)
FORD FALCON 1996-1998 - FALCON EL WAGON
FORD LTD 1995-1996 - LTD DF
FORD LTD 1996-1999 - LTD DL
