Nolathane
47009

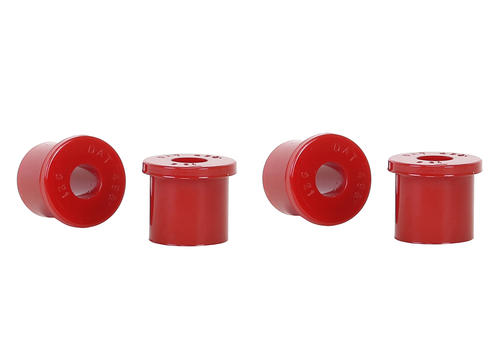

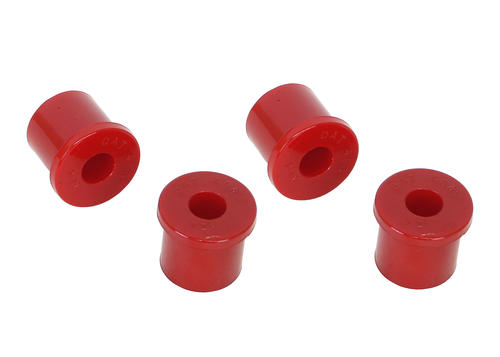

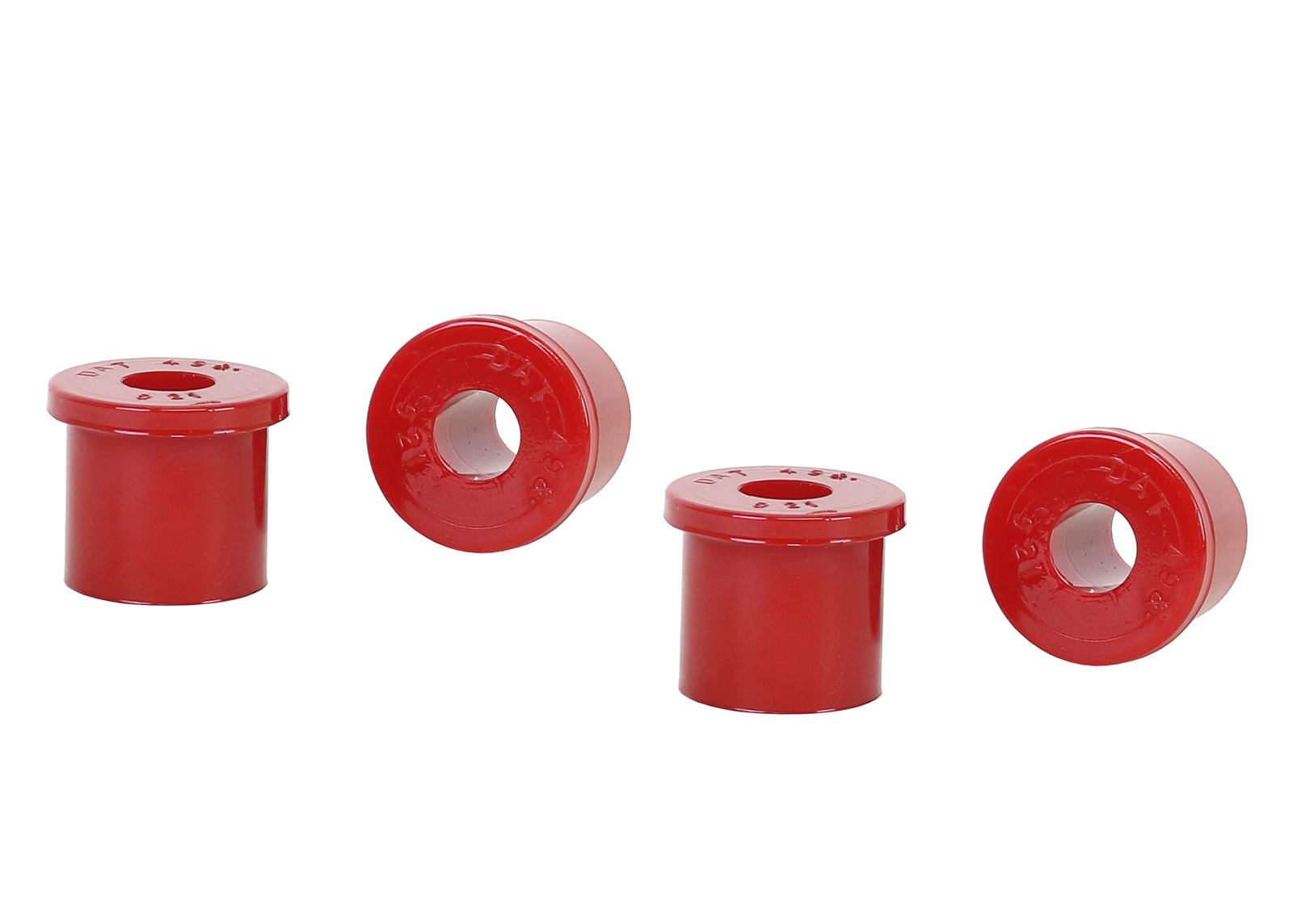

Rear Axle Leaf Spring - Rear Eye Bushing Kit
*** CONTACT NOLATHANE ***
47009
Rear Axle Leaf Spring - Rear Eye Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


A critical service item for any leaf sprung vehicle. High kilometres and heavy load carrying causes excessive wear on rubber bushings. Nolathane's signature red bushings are made tough and offer outstanding abrasion resistance, high load bearing capability (4WD's, utes and towing), flexibility, increased tensile strength and chemical resistance to oil, grease, ozone and weathering.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 4 Bushings
Important Notes
  • Suits models to - 1980
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.

Features
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 33.2 mm 15.2 mm 33.5 mm 5 mm 39.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 33.2 mm
ID (B) 15.2 mm
L (C) 33.5 mm
FL (D) 5 mm
FLOD (E) 39.5 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
1 hrs DIY - Do it yourself
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

47009
Vehicle Applications
47009 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN URVAN 1973-1980 - URVAN E20, E21, E22
NISSAN UTE 1980-1986 - UTE 720 4WD
NISSAN UTE 1980-1986 - UTE 720 RWD
