Nolathane 46683 Rear Axle Beam Axle - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46683
Rear Axle Beam Axle - Bushing Kit
*** CONTACT NOLATHANE ***
46683
Rear Axle Beam Axle - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

A critical rear end bushing for any front wheel drive vehicle as it absorbs all the cornering and braking energy. Over compliance leads to early wear and tear, especially in performance applications. Reduce rear end cornering squirm and improve braking efficiencies with the Nolathane beam axle kit.
Kits Required: 1
Warranty: lifetime warranty

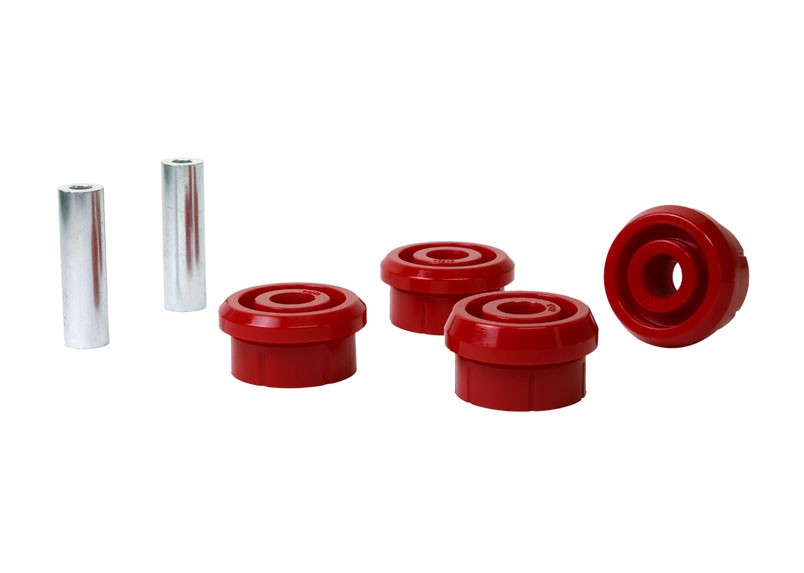

Kit Contents: 4 Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Reduces unwanted suspension movement, keeping tyres and components properly aligned; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 67.3 mm 25.4 mm 38.8 mm 13.2 mm 78.5 mm 2 25.4x12.2x89 mm click here
1 4 67.3 mm 25.4 mm 44 mm 13 mm 78.5 mm 2 25.4x12.2x89 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 67.3 mm 67.3 mm
ID (B) 25.4 mm 25.4 mm
L (C) 38.8 mm 44 mm
FL (D) 13.2 mm 13 mm
FLOD (E) 78.5 mm 78.5 mm
C/Tube QTY 2 2
C/Tube Size 25.4x12.2x89 mm 25.4x12.2x89 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 08 Even A 11 Odd B M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs DIY - With specialist tools
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 08
Press Plate # (OUT) Even A
Support Sleeve # 11
Press Plate # Odd B
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
46683
Vehicle Applications
46683 is suitable for the following vehicles. Select a vehicle for specific fitment details:
DAEWOO LANOS 1997-2003 - LANOS KLAT
HOLDEN ASTRA 2014-2016 - ASTRA PJ
HOLDEN CASCADA 2014-2017 - CASCADA CJ
HOLDEN CRUZE 2009-2011 - CRUZE JG
HOLDEN CRUZE 2011-2016 - CRUZE JH
HOLDEN VOLT 2011-2013 - VOLT EV150
OPEL ASTRA 2009-2018 - ASTRA J P10
OPEL ZAFIRA 2012-2013 - ZAFIRA C P12
