Nolathane 46485 Rear Axle Control Arm Lower - Inner Front Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46485
Rear Axle Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
46485
Rear Axle Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

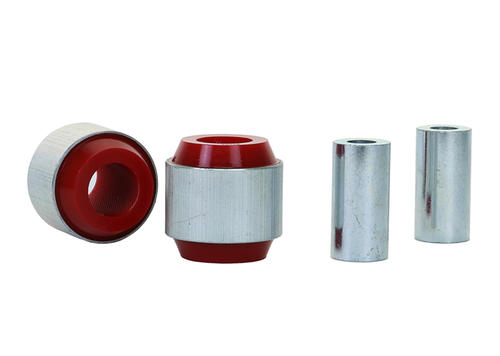

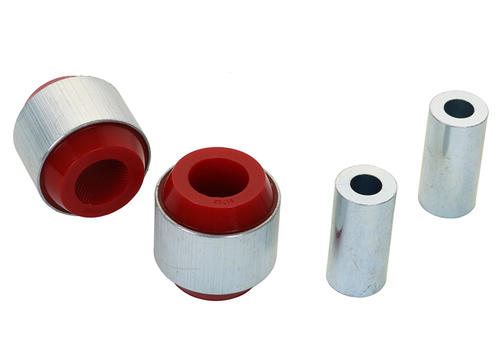

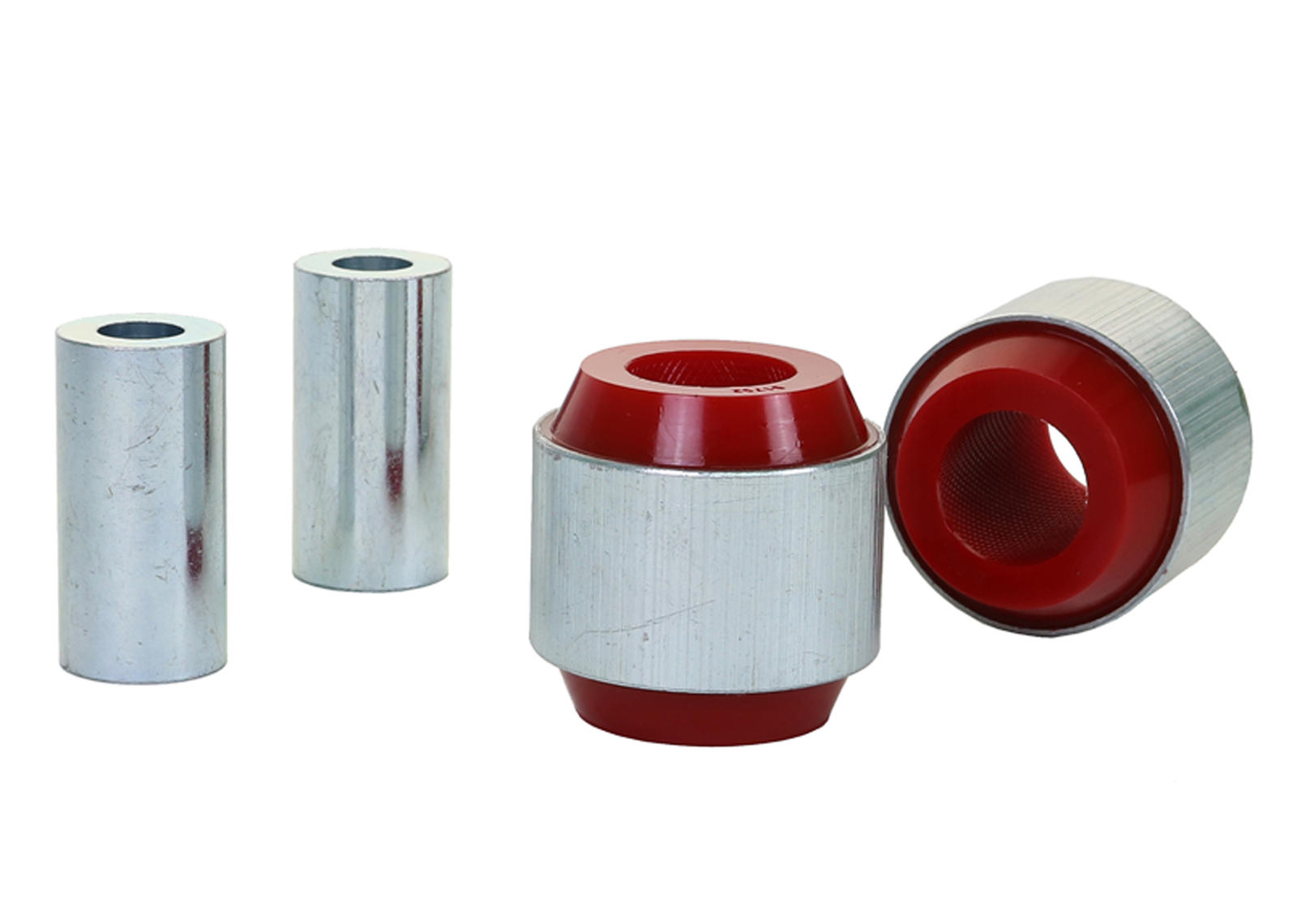

Vehicle Kit Contains:
Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes

Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 2 Shell Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes

Contents
Kit Contains;

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

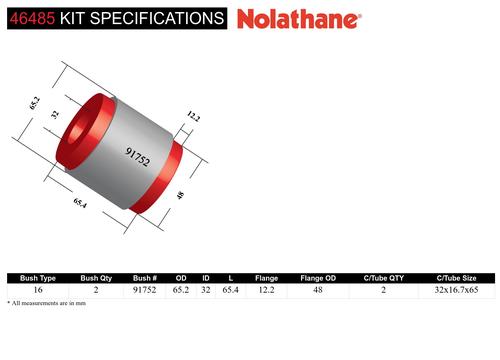

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 65.2 mm 32 mm 65.4 mm 12.2 mm 48 mm 2 32x16.7x65 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 65.2 mm
ID (B) 32 mm
L (C) 65.4 mm
FL (D) 12.2 mm
FLOD (E) 48 mm
C/Tube QTY 2
C/Tube Size 32x16.7x65 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
09 Odd A 08 Even A 11 Odd B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 09
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 08
Press Plate # (OUT) Even A
Support Sleeve # 11
Press Plate # Odd B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
46485
Vehicle Applications
46485 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD MUSTANG 2014-2023 - MUSTANG S550 FM, FN
FORD MUSTANG 2023-ON - MUSTANG S650 FO
