Nolathane 46482 Rear Axle Panhard Rod - Link Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46482
Rear Axle Panhard Rod - Link Bushing Kit
*** CONTACT NOLATHANE ***
46482
Rear Axle Panhard Rod - Link Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes, 2 Washers

Eliminate wheel shimmy and ensure accurate axle location with Nolathane superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability for all forms of driving applications.
Kits Required: 1
Warranty: lifetime warranty

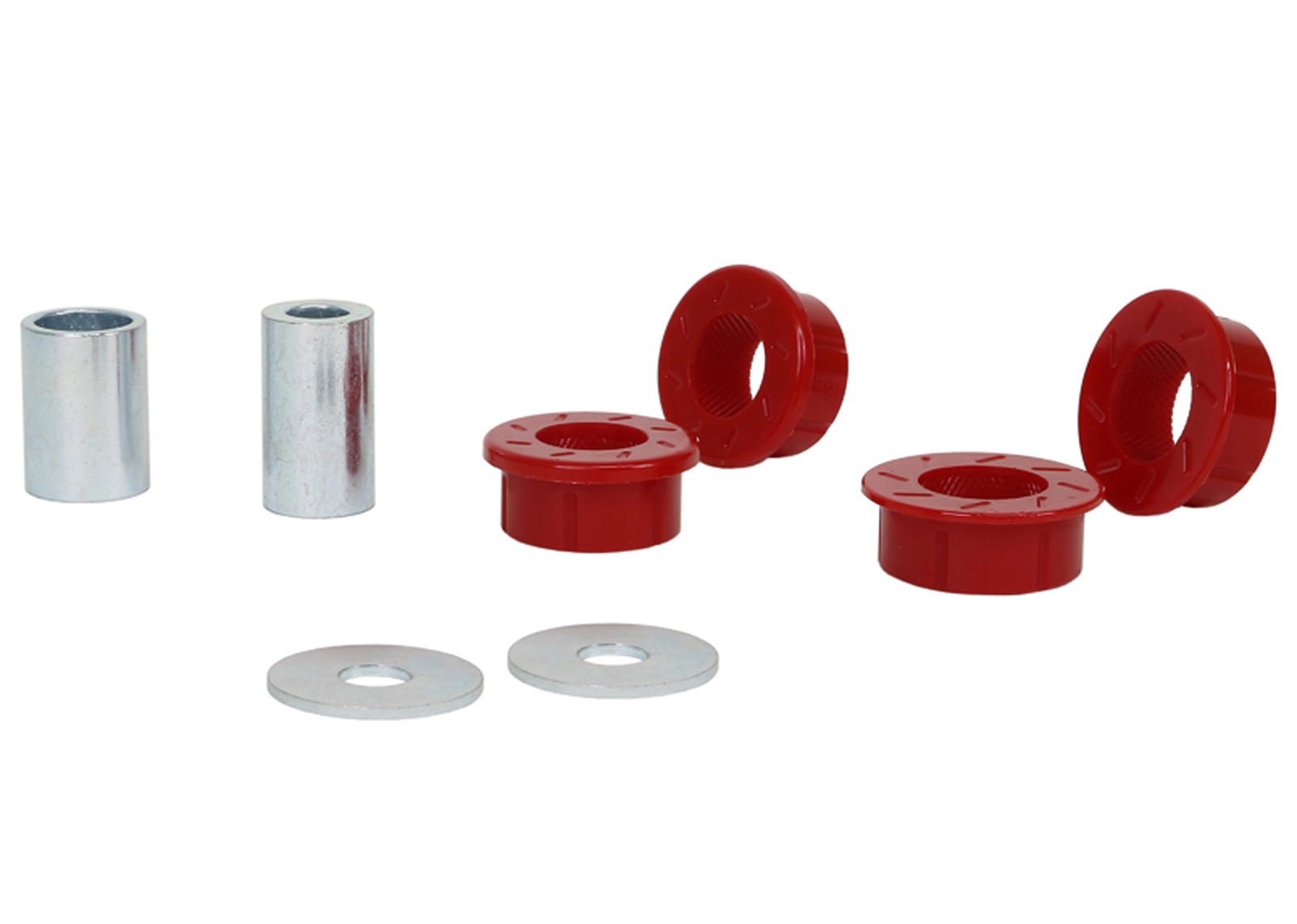

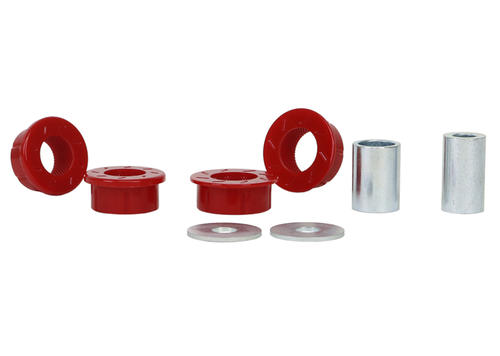

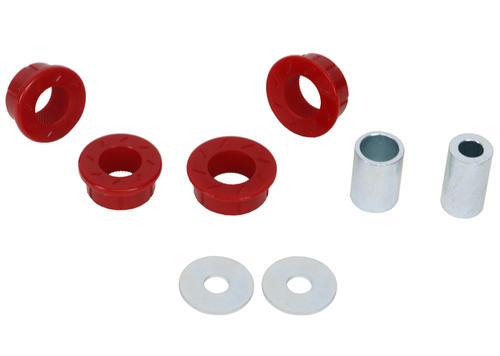

Kit Contents: 4 Bushings, 2 Tubes, 2 Washers
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes, 2 Washers

Contents
Kit Contains;

Enhances vehicle stability and reduces understeer or oversteer; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes, 2 Washers
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

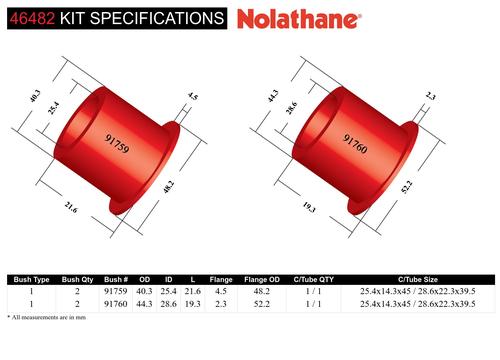

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 44.3 mm 28.6 mm 19.3 mm 2.3 mm 52.2 mm 1 / 1 25.4x14.3x45 / 28.6x22.3x39.5 mm click here
1 4 40.3 mm 25.4 mm 21.6 mm 4.5 mm 48.2 mm 1 / 1 25.4x14.3x45 / 28.6x22.3x39.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 44.3 mm 40.3 mm
ID (B) 28.6 mm 25.4 mm
L (C) 19.3 mm 21.6 mm
FL (D) 2.3 mm 4.5 mm
FLOD (E) 52.2 mm 48.2 mm
C/Tube QTY 1 / 1 1 / 1
C/Tube Size 25.4x14.3x45 / 28.6x22.3x39.5 mm 25.4x14.3x45 / 28.6x22.3x39.5 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 04 Even A 07 Odd A M14/M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 04
Press Plate # (OUT) Even A
Support Sleeve # 07
Press Plate # Odd A
Threaded Rod # M14/M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
46482
Vehicle Applications
46482 is suitable for the following vehicles. Select a vehicle for specific fitment details:
NISSAN ELGRAND 1995-2002 - ELGRAND E50
