Nolathane 46398G Rear Axle Trailing Arm - Centre Pivot Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46398G

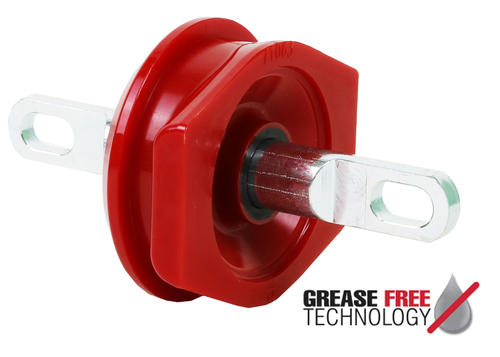

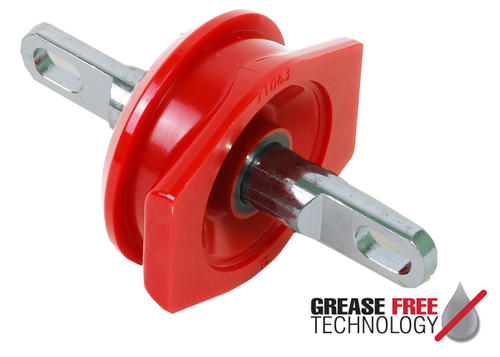

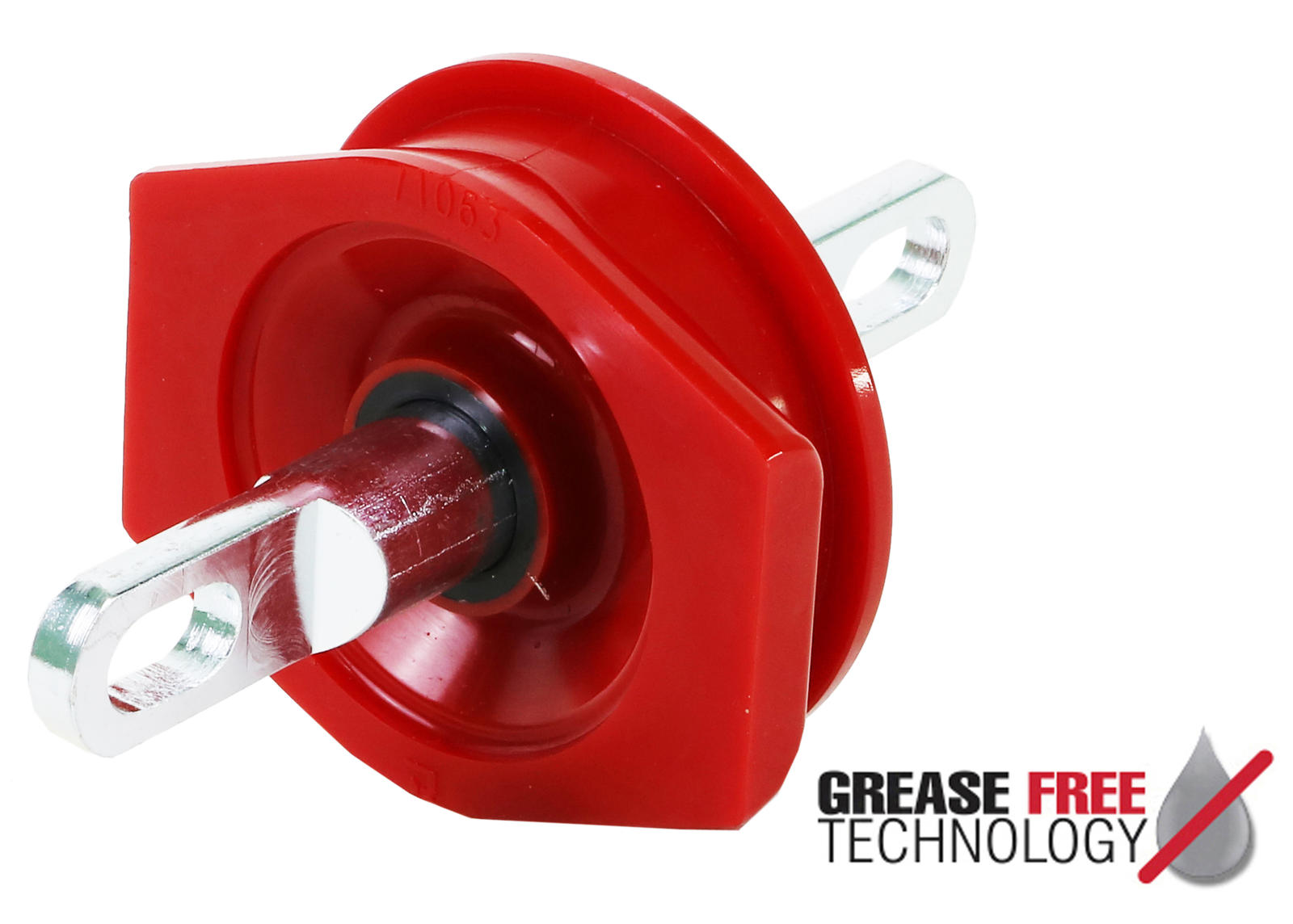

Rear Axle Trailing Arm - Centre Pivot Bushing Kit
*** CONTACT NOLATHANE ***
46398G
Rear Axle Trailing Arm - Centre Pivot Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 1 Bushing, 1 Pin

Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 2
Warranty: lifetime warranty
Kit Contents: 1 Bushing, 1 Pin
Install Guide: Download Here
Important Notes
  • Single
  • 80mm OD
  • Fitter friendly design
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 1 Bushing, 1 Pin

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 1 Bushing, 1 Pin
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
10 1 80 mm 22.3 mm 37.75 mm 13 mm 100 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 1
OD (A) 80 mm
ID (B) 22.3 mm
L (C) 37.75 mm
FL (D) 13 mm
FLOD (E) 100 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Odd B 11 Odd B 14 Even B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Odd B
Press Sleeve # (OUT) 11
Press Plate # (OUT) Odd B
Support Sleeve # 14
Press Plate # Even B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?
Videos

Uneven Tyre Wear

How Hard Is Nolathane?
46398G
Vehicle Applications
46398G is suitable for the following vehicles. Select a vehicle for specific fitment details:
HONDA CIVIC 1987-1993 - CIVIC 4TH GEN EC, ED, EE
HONDA CIVIC 1991-1995 - CIVIC 5TH GEN EG, EH
HONDA CIVIC 1994-2001 - CIVIC 6TH GEN EJ, EK, EM
HONDA CR-V 1995-2002 - CR-V RD1-RD3
HONDA CRX 1987-1992 - CRX ED, EE
HONDA CRX 1992-1998 - CRX EG, EH
HONDA INTEGRA 1993-2001 - INTEGRA DC2, DC4
HONDA INTEGRA 1993-2001 - INTEGRA DC2 TYPE R
