Nolathane 46348 Rear Axle Control Arm Upper - Outer Bushing Kit-Double Offset
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46348
Rear Axle Control Arm Upper - Outer Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
46348
Rear Axle Control Arm Upper - Outer Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

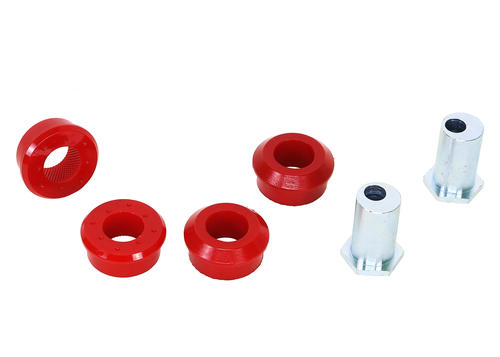

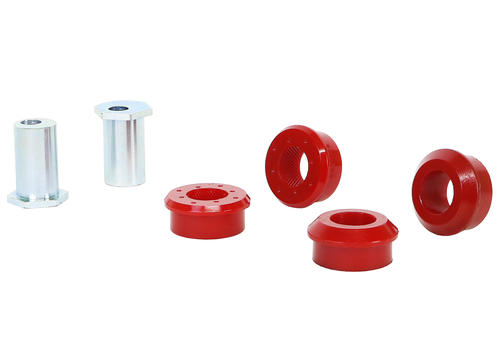

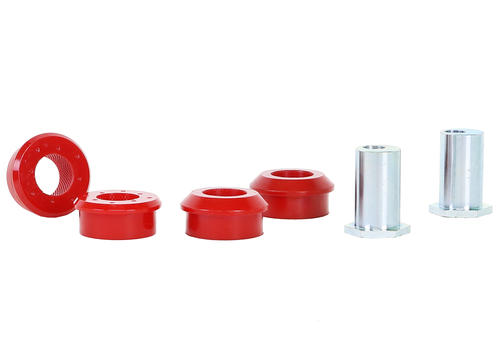

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes

Nolathane adjustable camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit includes Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 4 Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
  • Performance Alignment
  • Adds +/- 1.0deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes

Contents
Kit Contains;

Delivers a smoother ride while maintaining firmness for high-performance driving; the best, replacement upgrade. Includes: 4 Bushings, 2 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓

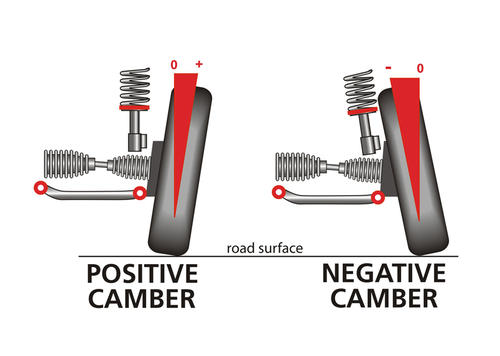

Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 4 42 mm 24 mm 19.5 mm 5 mm 48 mm 2 25.1x12.2x47 mm click here
1 4 42 mm 24 mm 22 mm 6.5 mm 48 mm 2 25.1x12.2x47 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 4 4
OD (A) 42 mm 42 mm
ID (B) 24 mm 24 mm
L (C) 19.5 mm 22 mm
FL (D) 5 mm 6.5 mm
FLOD (E) 48 mm 48 mm
C/Tube QTY 2 2
C/Tube Size 25.1x12.2x47 mm 25.1x12.2x47 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 03 Odd A 06 Even A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 03
Press Plate # (OUT) Odd A
Support Sleeve # 06
Press Plate # Even A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

Mark Larkham Talks Camber

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

Mark Larkham Talks Camber

Larko Talks Bushing Lubrication
46348
Vehicle Applications
46348 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HONDA CIVIC 2000-2006 - CIVIC 7TH GEN EM, EP, ES, EU
HONDA CIVIC 1999-2005 - CIVIC 7TH GEN EP3 TYPE R
HONDA CR-V 1995-2002 - CR-V RD1-RD3
HONDA CR-V 2001-2007 - CR-V RD4-RD7
HONDA INTEGRA 2001-2007 - INTEGRA DC5
HONDA INTEGRA 2001-2007 - INTEGRA DC5 TYPE R, TYPE S
