Nolathane 46346 Rear Axle Control Arm/Trailing Arm Lower - Outer Bushing Kit-Double Offset
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46346
Rear Axle Control Arm/Trailing Arm Lower - Outer Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
46346
Rear Axle Control Arm/Trailing Arm Lower - Outer Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

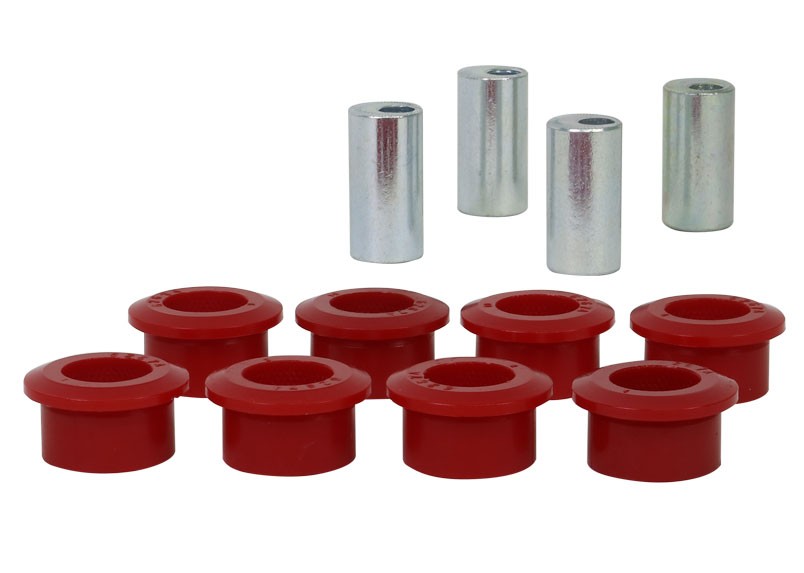

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes

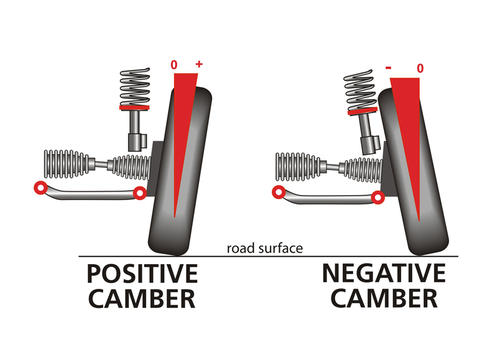

Providing +/- 1.5º camber adjustment (on car), Nolathane's kit is the economical solution for correcting alignment and prolonging tyre life especially on vehicles which are lowered, load carrying and/ or running expensive low profile tyres.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 8 Bushings, 4 Tubes
Install Guide: Download Here
Important Notes
  • Performance Alignment
  • Suits models to - 06/2009 without bearing in hub
  • Adds +/- 1.5deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

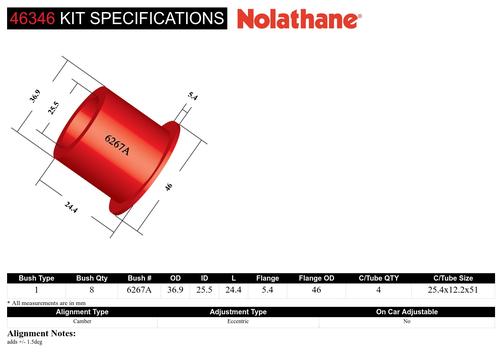

Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 8 36.9 mm 25.5 mm 24.4 mm 5.4 mm 46 mm 4 25.4x12.2x51 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 8
OD (A) 36.9 mm
ID (B) 25.5 mm
L (C) 24.4 mm
FL (D) 5.4 mm
FLOD (E) 46 mm
C/Tube QTY 4
C/Tube Size 25.4x12.2x51 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

Mark Larkham Talks Camber

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

Mark Larkham Talks Camber

Larko Talks Bushing Lubrication
46346
Vehicle Applications
46346 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHEVROLET CAMARO 2009-2015 - CAMARO 5TH GEN
HDT COMMODORE 2006-2013 - COMMODORE VC RETRO
HDT COMMODORE 2006-2013 - COMMODORE VH RETRO
HDT COMMODORE 2006-2013 - COMMODORE INTERCEPTOR RETRO
HDT COMMODORE 2006-2013 - COMMODORE VL RETRO
HDT COMMODORE 2006-2013 - COMMODORE VK RETRO
HOLDEN CALAIS 2006-2013 - CALAIS VE
HOLDEN CAPRICE 2006-2013 - CAPRICE WM
HOLDEN COMMODORE 2006-2013 - COMMODORE VE
HOLDEN STATESMAN 2006-2010 - STATESMAN WM
HSV CLUBSPORT 2006-2013 - CLUBSPORT E SERIES
HSV GRANGE 2007-2013 - GRANGE WM
HSV GTS 2006-2013 - GTS E SERIES
HSV MALOO 2007-2013 - MALOO E SERIES
HSV SENATOR 2006-2013 - SENATOR E SERIES
HSV W427 2008-2013 - W427 E SERIES
