Nolathane
46213

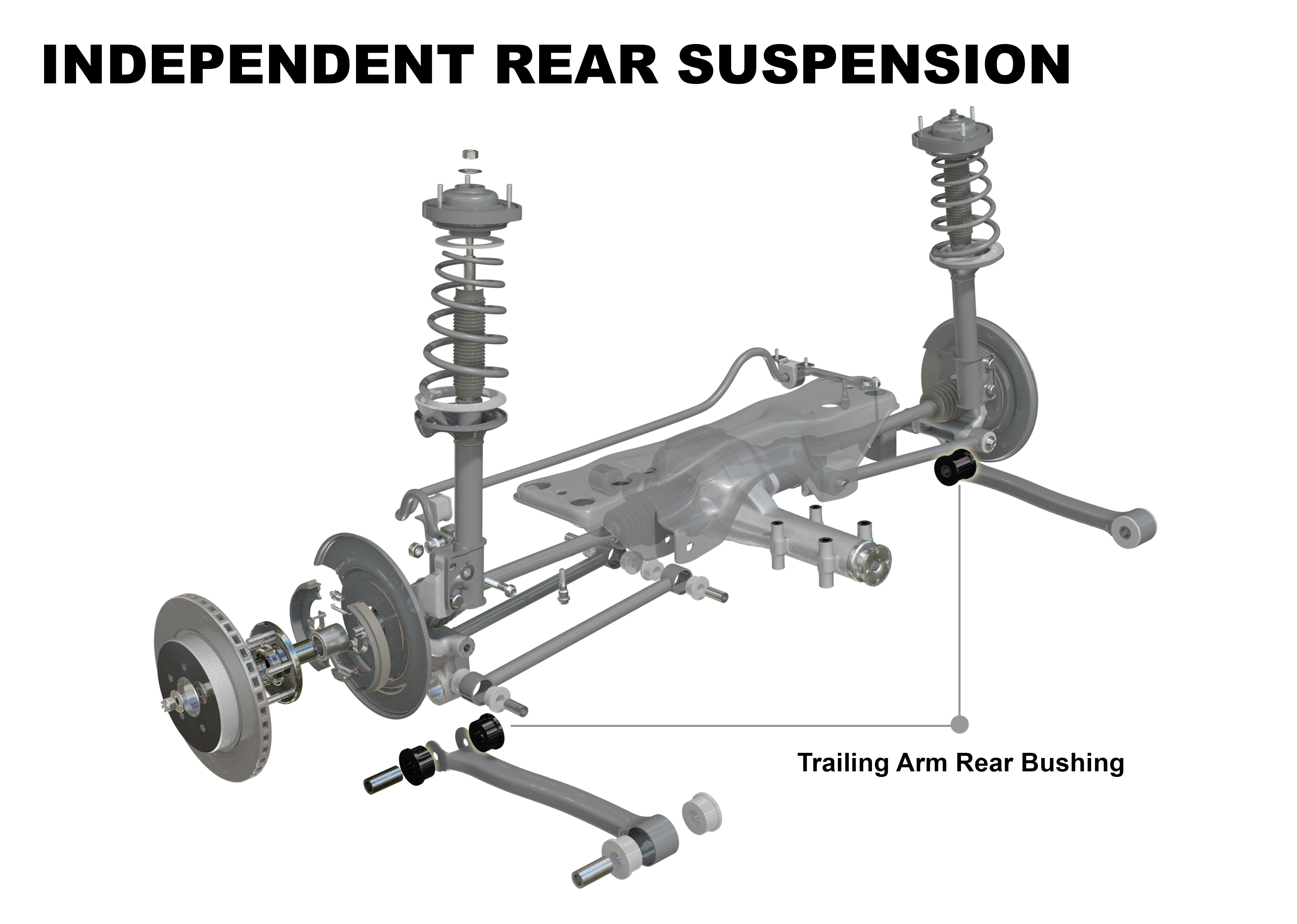

Rear Trailing Arm - Rear Bushing Kit
*** CONTACT NOLATHANE ***
46213
Rear Trailing Arm - Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Suffering uneven tyre wear, unbalanced braking or a less predictable rear end while cornering. It could be your trailing arm bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: Limited Lifetime Warranty

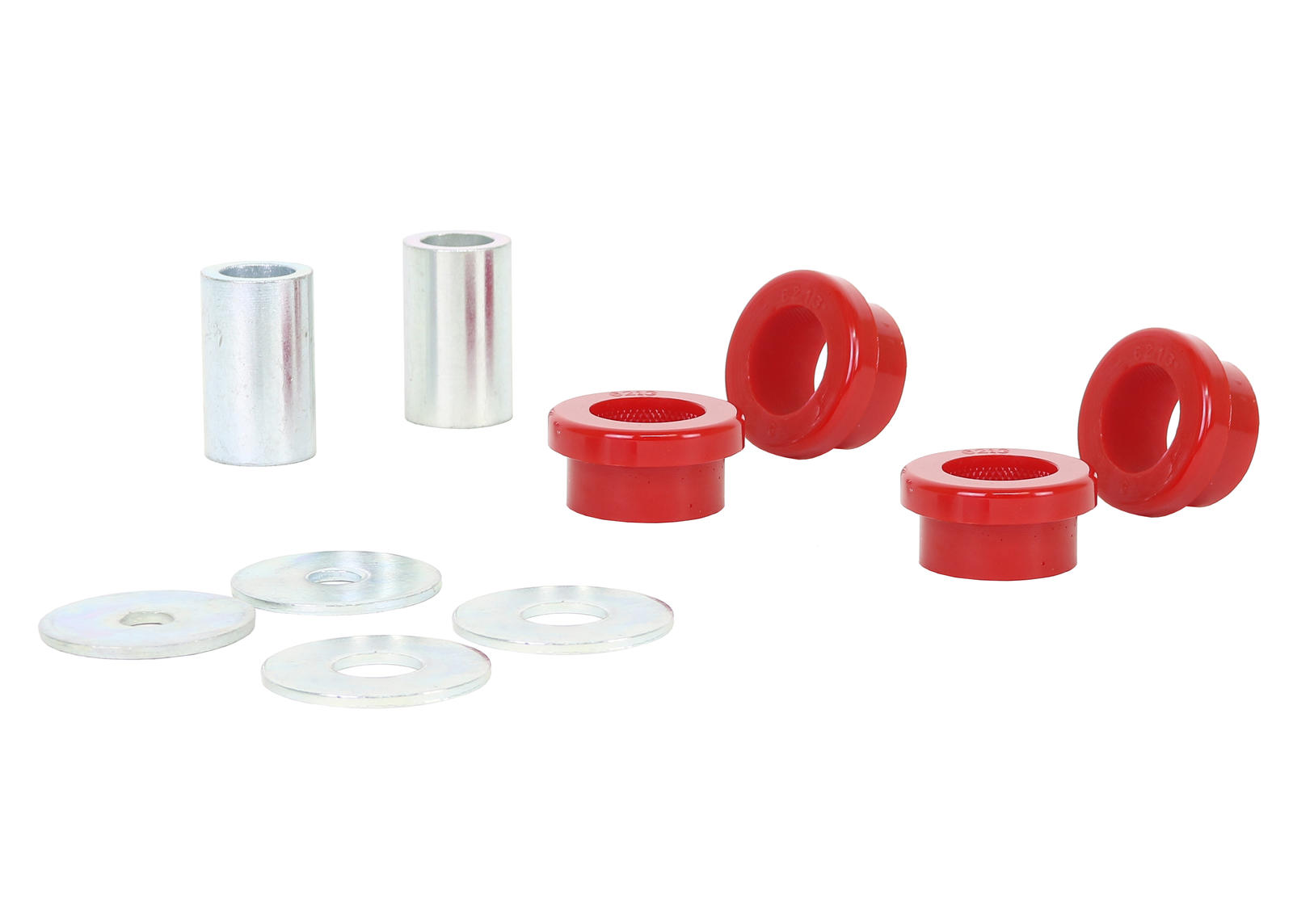

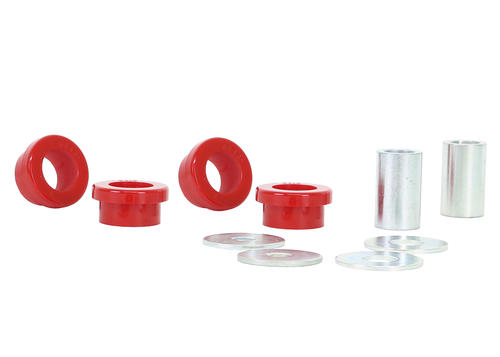

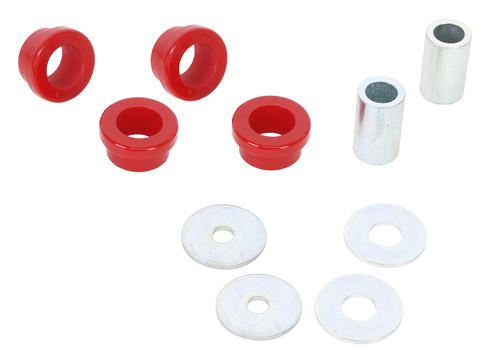

Kit Contents: 4 Bushings, 2 Tubes, 4 Washers, Install Guide, Grease
Install Guide: Download Here
Important Notes
40mm OD
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 40.2 mm 30 mm 25 mm 9 mm 50 mm 2 30x20.3x50 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 40.2 mm
ID (B) 30 mm
L (C) 25 mm
FL (D) 9 mm
FLOD (E) 50 mm
C/Tube QTY 2
C/Tube Size 30x20.3x50 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 03 ODD A 06 EVEN A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 03
Press Plate # (OUT) ODD A
Support Sleeve # 06
Press Plate # EVEN A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham talks small cars
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham talks small cars
46213
Vehicle Applications
46213 is suitable for the following vehicles. Select a vehicle for specific fitment details:
EUNOS 30X 1991-1995 - 30X EC
FORD CAPRI 1989-1995 - CAPRI SA, SC, SE
FORD LASER 1990-1993 - LASER KF, KH AWD
FORD LASER 1990-1994 - LASER KF, KH FWD
FORD LASER 1994-1999 - LASER KJ
FORD LASER 1999-2002 - LASER KN, KQ
HYUNDAI ELANTRA 2000-2006 - ELANTRA XD
HYUNDAI ELANTRA LAVITA 2001-2004 - ELANTRA LAVITA FC
MAZDA 323 1989-1994 - 323 BG FWD
MAZDA 323 ASTINA 1988-1994 - 323 ASTINA BG FWD
MAZDA 323 ASTINA 1994-1998 - 323 ASTINA BA
MAZDA 323 ASTINA 1998-2004 - 323 ASTINA BJ
MAZDA 323 PROTEGÉ 1994-1998 - 323 PROTEGÉ BA
MAZDA 323 PROTEGÉ 1998-2003 - 323 PROTEGÉ BJ
MAZDA EUNOS 30X 1991-1995 - EUNOS 30X EC
MAZDA FAMILIA 1990-1994 - FAMILIA BG AWD
MAZDA PREMACY 1999-2003 - PREMACY CP
