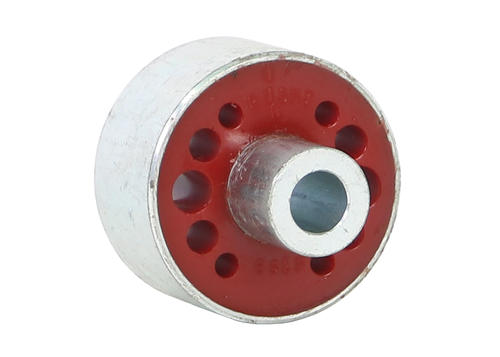

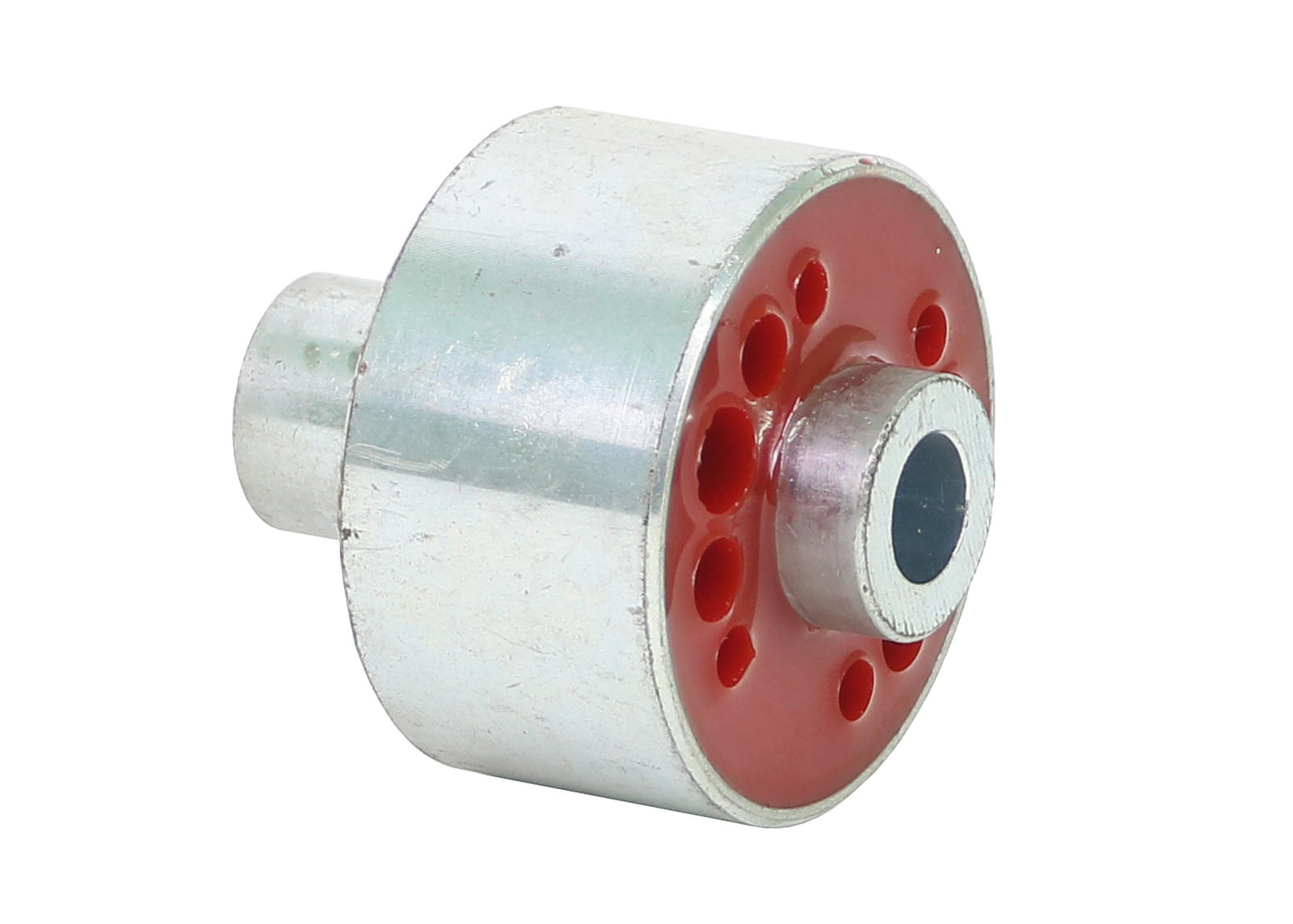

Nolathane 46199 Rear Axle Differential Mount - Location Rod Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46199
Rear Axle Differential Mount - Location Rod Bushing Kit
*** CONTACT NOLATHANE ***
46199
Rear Axle Differential Mount - Location Rod Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Nolathane's differential bushing solutions ensure pinion angles are maintained while delivering an improved gear shift resulting in reduced initial torque loss and greater power transfer to the wheels.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 1 Shell Bushing
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Minimises vibrations and harshness while delivering better responsiveness and feedback; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 1 64.3 mm 14.3 mm 70.5 mm 24 mm 25.4 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 1
OD (A) 64.3 mm
ID (B) 14.3 mm
L (C) 70.5 mm
FL (D) 24 mm
FLOD (E) 25.4 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
09 Odd A 08 Even A 11 Odd B M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve # (IN) 09
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 08
Press Plate # (OUT) Even A
Support Sleeve # 11
Press Plate # Odd B
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Diff Solutions
Videos

How Hard Is Nolathane?

Diff Solutions
46199
Vehicle Applications
46199 is suitable for the following vehicles. Select a vehicle for specific fitment details:
TOYOTA GRANVIA / GRAND HIACE 1995-2004 - GRANVIA CH10, CH11, CH16
TOYOTA HIACE SBV 1995-2004 - HIACE SBV RCH12, 22, RZH10
