Nolathane 46183 Rear Axle Trailing Arm Lower - Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46183
Rear Axle Trailing Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
46183
Rear Axle Trailing Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

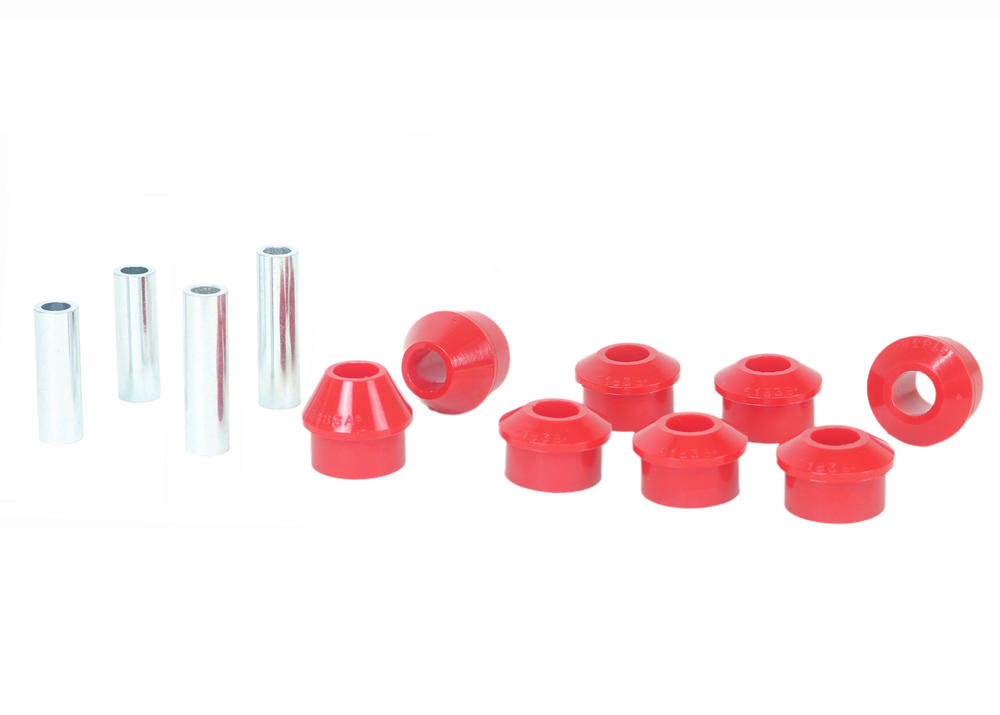

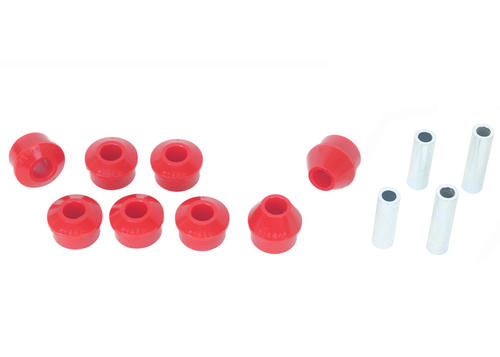

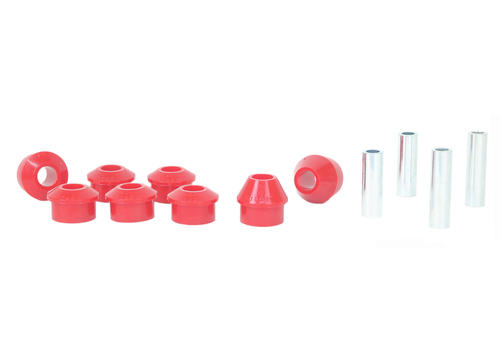

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes

Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 8 Bushings, 4 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes

Contents
Kit Contains;

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 8 Bushings, 4 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 8 34 mm 16 mm 24 mm 8.5 mm 39 mm 2 / 2 16x10.2x50 / 16x10.2x60 mm click here
1 8 34 mm 16.1 mm 35.3 mm 18.5 mm 38.8 mm 2 / 2 16x10.2x49.5 / 16x10.2x59.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 8 8
OD (A) 34 mm 34 mm
ID (B) 16 mm 16.1 mm
L (C) 24 mm 35.3 mm
FL (D) 8.5 mm 18.5 mm
FLOD (E) 39 mm 38.8 mm
C/Tube QTY 2 / 2 2 / 2
C/Tube Size 16x10.2x50 / 16x10.2x60 mm 16x10.2x49.5 / 16x10.2x59.5 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 02 Even A 05 Odd A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
46183
Vehicle Applications
46183 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD CAPRI 1989-1994 - CAPRI SA, SC, SE
FORD LASER 1981-1985 - LASER KA, KB
FORD LASER 1985-1990 - LASER KC, KE
FORD METEOR 1982-1985 - METEOR GA, GB
FORD METEOR 1985-1987 - METEOR GC
MAZDA 323 1981-1985 - 323 BD FWD
MAZDA 323 1985-1989 - 323 BF FWD
MAZDA 323 1985-1989 - 323 BF AWD
