Nolathane 46180 Rear Axle Trailing Arm - Centre Pivot Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46180

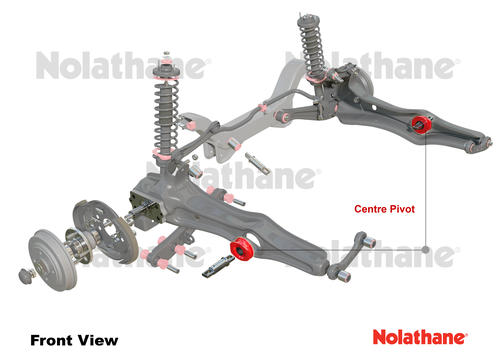

Rear Axle Trailing Arm - Centre Pivot Bushing Kit
*** CONTACT NOLATHANE ***
46180
Rear Axle Trailing Arm - Centre Pivot Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

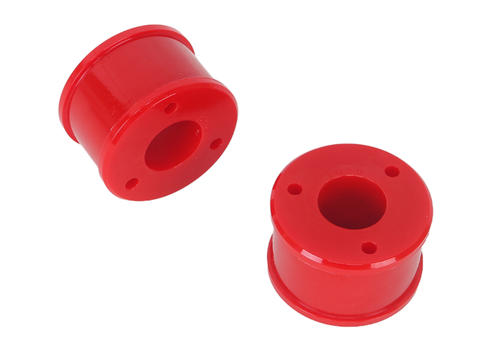

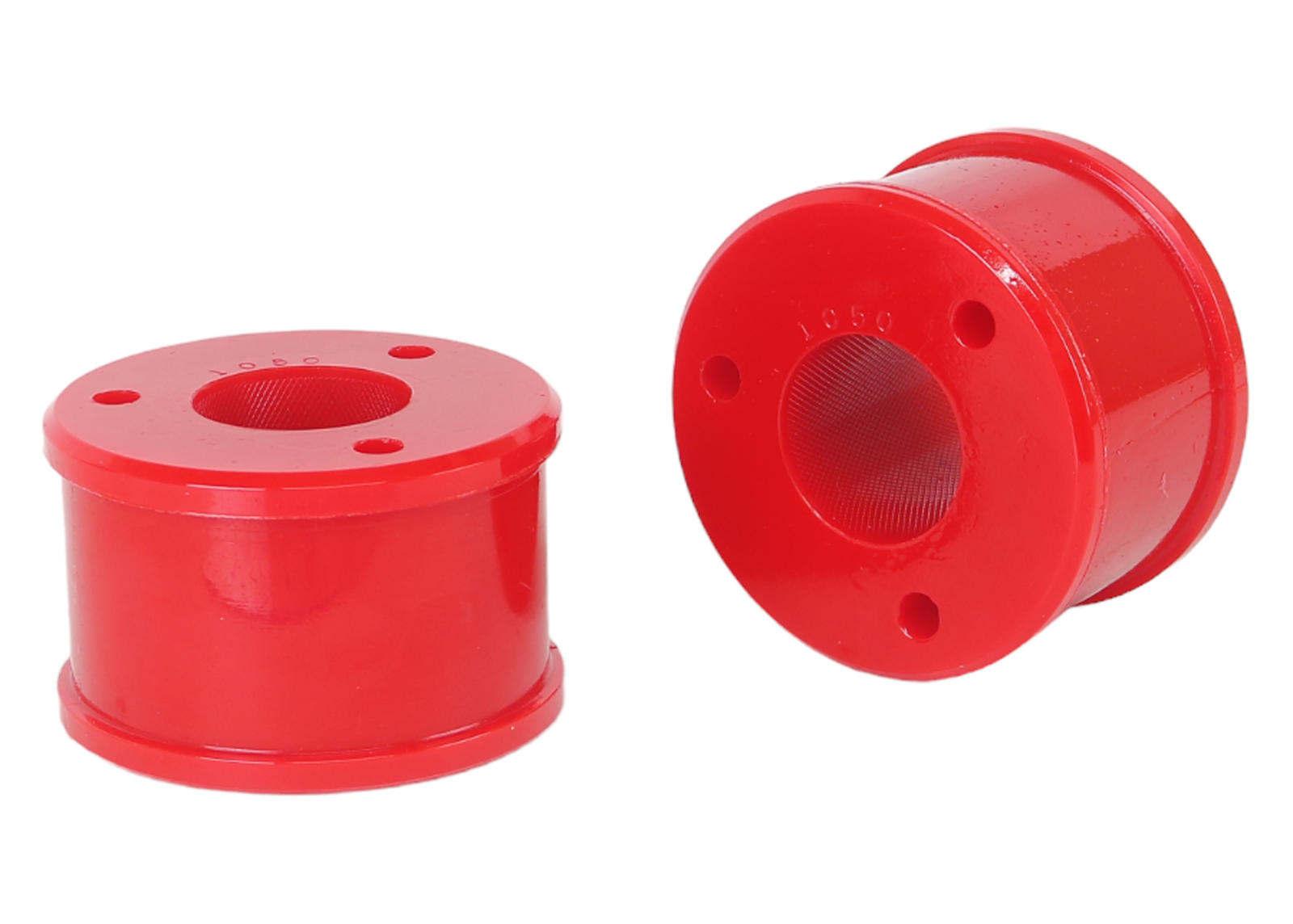

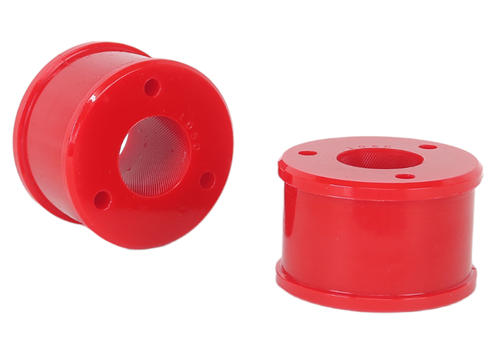

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Pins, 2 Washers, 2 Circlips

Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 2 Shell Bushings, 2 Pins, 2 Washers, 2 Circlips
Install Guide: Download Here
Important Notes
  • Pair - 85mm OD
  • Installs into original shell
  • Reuse original mounting pin
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Pins, 2 Washers, 2 Circlips

Contents
Kit Contains;

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Pins, 2 Washers, 2 Circlips
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
10 2 85.8 mm 36.5 mm 54 mm 7 mm 85 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) 85.8 mm
ID (B) 36.5 mm
L (C) 54 mm
FL (D) 7 mm
FLOD (E) 85 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Odd B 11 Odd B 14 Even B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 4 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Odd B
Press Sleeve # (OUT) 11
Press Plate # (OUT) Odd B
Support Sleeve # 14
Press Plate # Even B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
46180
Vehicle Applications
46180 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HONDA INTEGRA 1986-1993 - INTEGRA DA, DB
HONDA INTEGRA 1993-2001 - INTEGRA DC2, DC4
HONDA INTEGRA 1993-2001 - INTEGRA DC2 TYPE R
