| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |

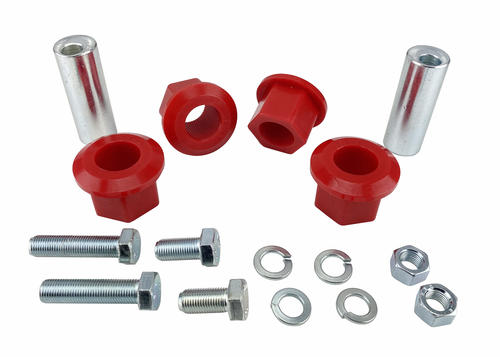

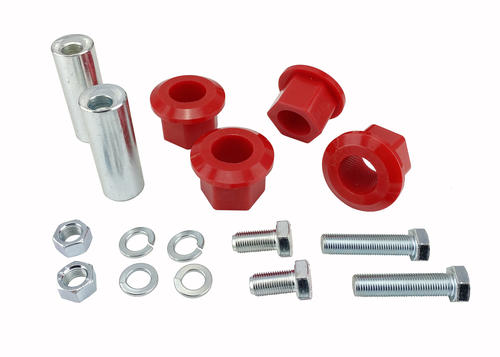

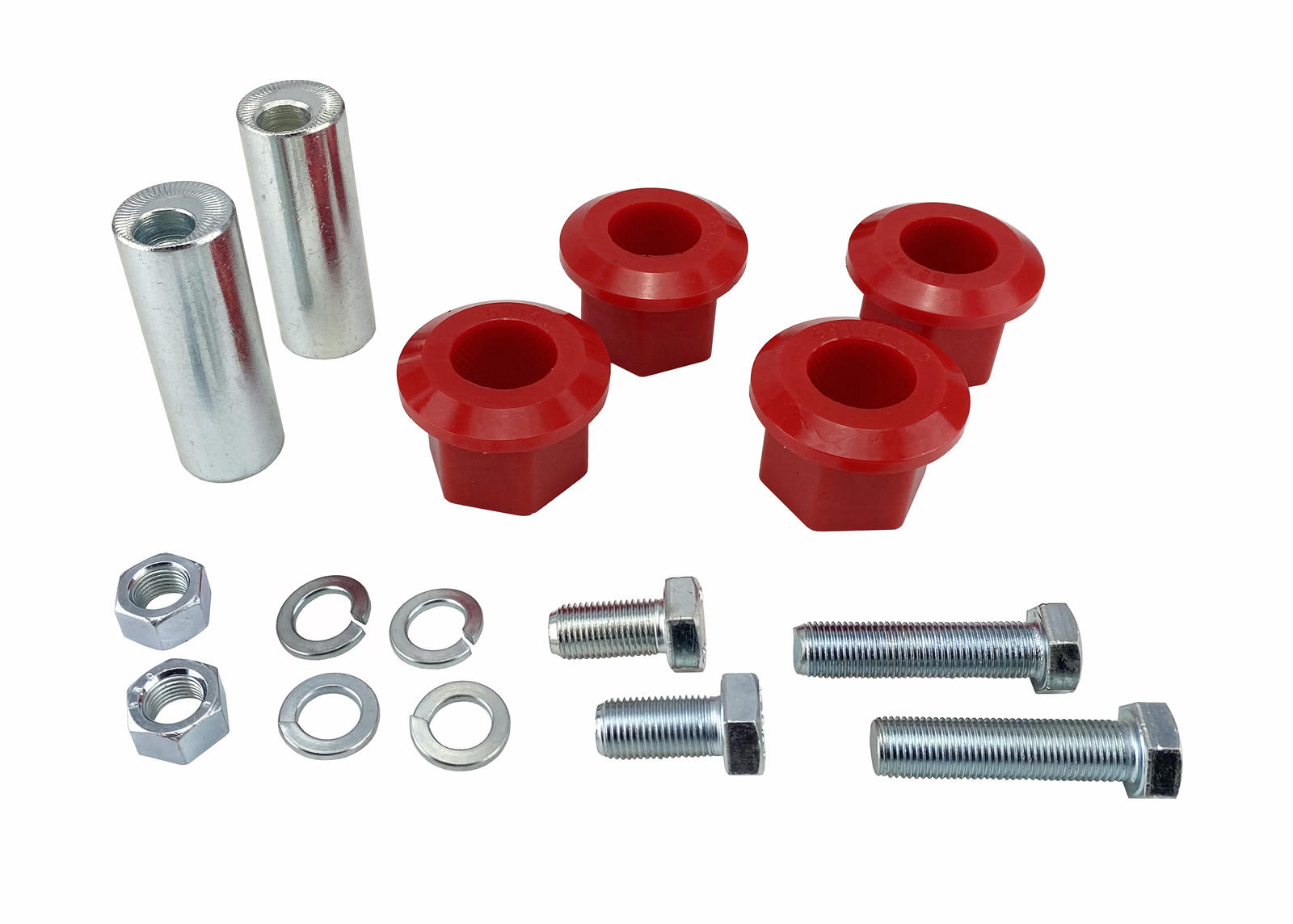

| Kit Contents: | 4 Bushings, 4 Tubes, 4 Bolts, 4 Washers, 2 Nuts, Install Guide, Grease |
| Install Guide: | Download Here |
| Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
| 1 | 4 | 36.8 (HEX) mm | 25.4 mm | 34.8 mm | 8 mm | 50 mm | 2 | 25.4x12.5x70.8 mm | click here |

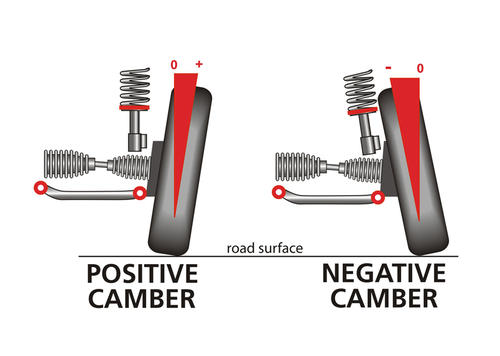

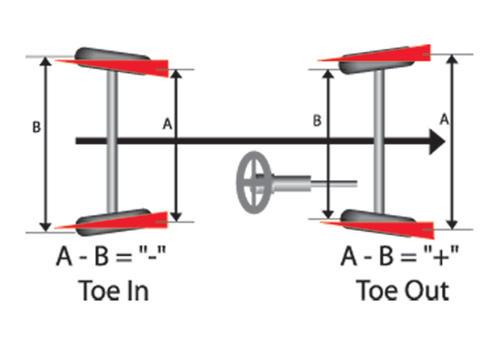

| Alignment Type | Adjustment Type | On Car Adjustable | Adjustment Notes |
| Camber/ Toe | Eccentric | Yes | Offers 6-8mm Tooe |
| Bush Type | 1 |
| Bush Qty | 4 |
| OD (A) | 36.8 (HEX) mm |
| ID (B) | 25.4 mm |
| L (C) | 34.8 mm |
| FL (D) | 8 mm |
| FLOD (E) | 50 mm |
| C/Tube QTY | 2 |
| C/Tube Size | 25.4x12.5x70.8 mm |
| Similar Bushing Size | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
| Alignment Type | Camber/ Toe |
| Adjustment Type | Eccentric |
| On Car Adjustable | Yes |
| Adjustment Notes | Offers 6-8mm Tooe |
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 4 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
| N/A | N/A | 02 | EVEN A | 05 | ODD A | M12 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 4 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) | N/A |
| Press Plate # (IN) | N/A |
| Press Sleeve # (OUT) | 02 |
| Press Plate # (OUT) | EVEN A |
| Support Sleeve # | 05 |
| Press Plate # | ODD A |
| Threaded Rod # | M12 |
| Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
