Nolathane 46004 Rear Axle Trailing Arm Lower - Front Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
46004
Rear Axle Trailing Arm Lower - Front Bushing Kit
*** CONTACT NOLATHANE ***
46004
Rear Axle Trailing Arm Lower - Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Suffering uneven tyre wear, unbalanced braking or a less predictable vehicle while cornering. It could be your suspension bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: lifetime warranty

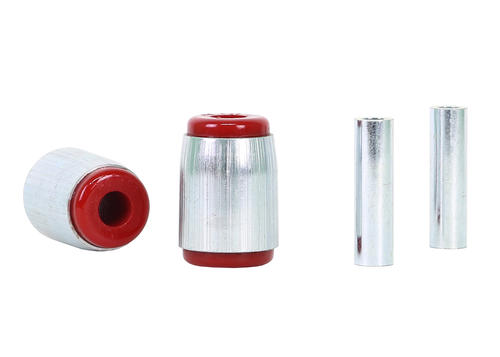

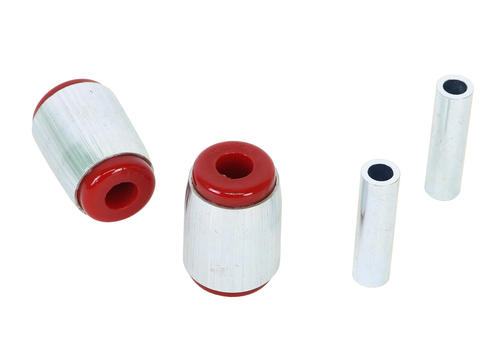

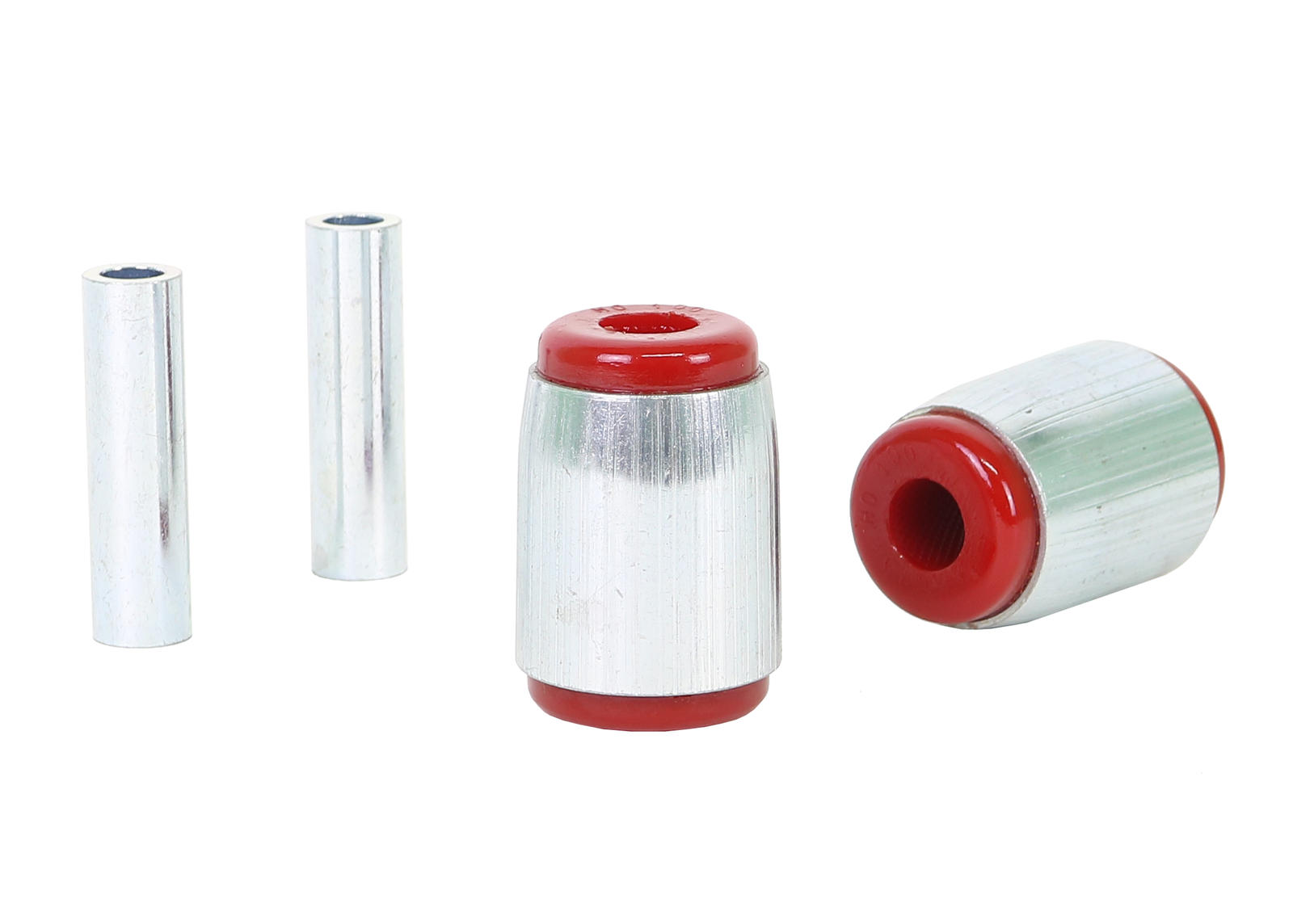

Kit Contents: 2 Shell Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:

Contents
Kit Contains;

Improves chassis response by reducing flex and play in suspension components; the best, replacement upgrade. Includes:
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 AI=49.1 AII=44 mm 19 mm 71.5 mm 9.4 mm 42.2 mm 2 19x12.6x71 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) AI=49.1 AII=44 mm
ID (B) 19 mm
L (C) 71.5 mm
FL (D) 9.4 mm
FLOD (E) 42.2 mm
C/Tube QTY 2
C/Tube Size 19x12.6x71 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
05 Odd A 04 Even A 07 Odd A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools
Press Sleeve # (IN) 05
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 04
Press Plate # (OUT) Even A
Support Sleeve # 07
Press Plate # Odd A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
46004
Vehicle Applications
46004 is suitable for the following vehicles. Select a vehicle for specific fitment details:
DAEWOO 1.5i 1994-1995 - 1.5I 1C4
DAEWOO CIELO 1995-1997 - CIELO KLETN
DAEWOO ESPERO 1995-1999 - ESPERO KLEJ
HDT CALAIS 1984-1986 - CALAIS VK, VL
HDT COMMODORE 1980-1987 - COMMODORE VC, VH, VK, VL
HDT COMMODORE 1988-1991 - COMMODORE VN AERO, GROUP 3
HDT COMMODORE 1995-1997 - COMMODORE VS MAGNUM
HDT COMMODORE 1995-1997 - COMMODORE VS AERO
HOLDEN CALAIS 1984-1988 - CALAIS VK, VL SEDAN
HOLDEN CALAIS 1988-1988 - CALAIS VL WAGON
HOLDEN CALAIS 1988-1991 - CALAIS VN
HOLDEN CAMIRA 1982-1989 - CAMIRA JB, JD, JE
HOLDEN COMMODORE 1978-1988 - COMMODORE VB, VC, VH, VK, VL WAGON (INCL HDT)
HOLDEN COMMODORE 1978-1988 - COMMODORE VB, VC, VH, VK, VL SEDAN (INCL HDT)
HOLDEN COMMODORE 1988-1993 - COMMODORE VN, VP, VG WAGON AND UTE
HOLDEN COMMODORE 1988-1991 - COMMODORE VN SEDAN
HOLDEN COMMODORE 1991-1993 - COMMODORE VP SEDAN
HOLDEN COMMODORE 1993-2000 - COMMODORE VR, VS WAGON AND UTE
HOLDEN COMMODORE 1993-1997 - COMMODORE VR, VS SEDAN
HSV CLUBSPORT 1989-1991 - CLUBSPORT VN
HSV CLUBSPORT 1993-1997 - CLUBSPORT VR, VS WAGON
HSV COMMODORE 1988-1989 - COMMODORE VL GROUP A
HSV COMMODORE 1989-1993 - COMMODORE VN, VP
HSV COMMODORE 1990-1991 - COMMODORE VN GROUP A
HSV LS 1991-1993 - LS VG, VP
HSV MALOO 1990-1993 - MALOO VG, VP
HSV MALOO 1993-2000 - MALOO VR, VS
HSV MANTA 1995-1997 - MANTA VS WAGON
TOYOTA LEXCEN 1989-1993 - LEXCEN VN, VP WAGON
TOYOTA LEXCEN 1987-1993 - LEXCEN VN, VP SEDAN
TOYOTA LEXCEN 1993-1997 - LEXCEN VR, VS WAGON
TOYOTA LEXCEN 1993-1997 - LEXCEN VR, VS SEDAN
