Nolathane 45976 Front Axle Control Arm Upper - Arm Assembly
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
45976

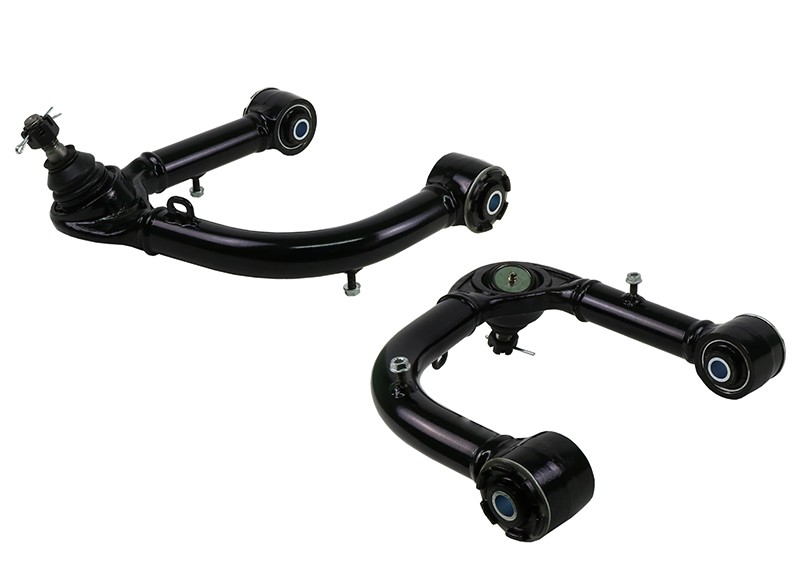

Front Axle Control Arm Upper - Arm Assembly
*** CONTACT NOLATHANE ***
45976
Front Axle Control Arm Upper - Arm Assembly
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 2 Arms

A short fall of the modern day IFS 4wd is the adjustment range provided for successful wheel alignments, this becomes even more of an issue when the vehicle is lifted by more than 1 inch. Not only does the vehicle run into camber and caster issues, but ball joint articulation and clearance issues to the coil over strut at ride and droop height. The new Nolathane offset UCA (Upper Control Arm) is an all-in-one solution for any vehicle that has been lifted between 30mm and 70mm. Providing an increase between +2.5 and +3.5 degrees of caster and up to 1.5 degrees of negative camber increase (figures quoted are based off an approximate 50mm/ 2 inch) along with greater clearance to the coil over strut and more articulation of the arm by virtue of new maintenance free GIIRO bushing technology.
Kits Required: 1
Warranty: 3 years warranty or up to 60,000km
Kit Contents: 2 Arms
Install Guide: Download Here
Important Notes
  • Performance
  • Fixed offset alignment correction arms
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 2 Arms

Contents
Kit Contains;

Improve vehicle stability during cornering; the best, replacement upgrade. Includes: 2 Arms
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
PTFE lining provides an extraordinary low coefficient of friction eliminating the need to lubricate the bushing.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective powder coating acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Not Shown

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs DIY - With specialist tools Yes
Videos

Nolathane UCAs And ADR Compliance

How Hard Is Nolathane?

Nolathane 4x4 Control Arms - Making Suspension Servicing Easy!
Videos

Nolathane UCAs And ADR Compliance

How Hard Is Nolathane?

Nolathane 4x4 Control Arms - Making Suspension Servicing Easy!
45976
Vehicle Applications
45976 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD EVEREST 2015-2018 - EVEREST UA 2WD
FORD EVEREST 2015-2018 - EVEREST UA 4WD
FORD EVEREST 2018-2022 - EVEREST UAII 2WD
FORD EVEREST 2018-2022 - EVEREST UAII 4WD
FORD RANGER 2011-2015 - RANGER PX I 4WD
FORD RANGER 2015-2018 - RANGER PXII 4WD
FORD RANGER 2018-2022 - RANGER PXIII 4WD
MAZDA BT-50 2011-2020 - BT-50 UP, UR 4WD
