Kits Required: | 1 |
Warranty: | Limited Lifetime Warranty |

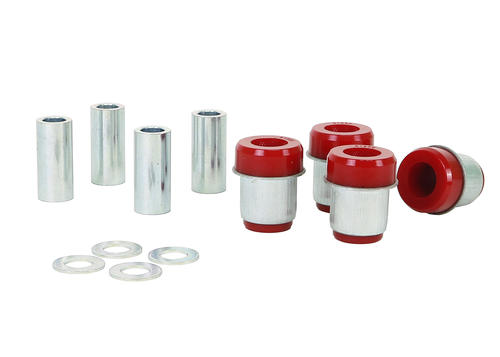

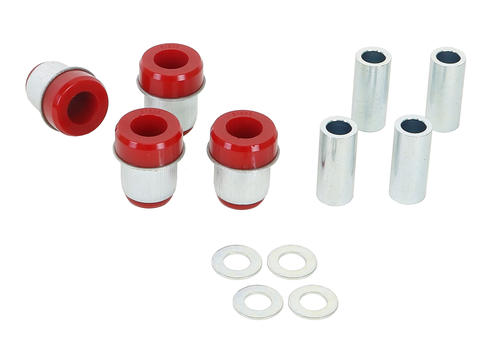

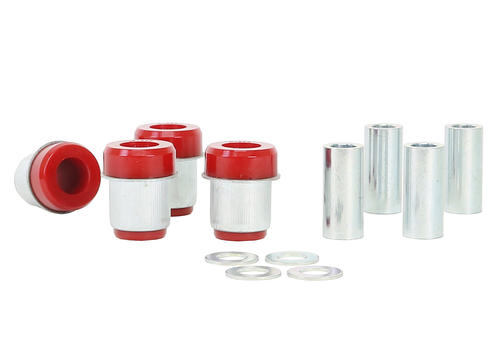

Kit Contents: | 4 Shell Bushings, 4 Tubes, 4 Washers, Install Guide, Grease |
Install Guide: | Download Here |
Important Notes
US $ NAN

Kits Required: | 1 |
Warranty: | Limited Lifetime Warranty |
Kit Contents: | 4 Shell Bushings, 4 Tubes, 4 Washers, Install Guide, Grease |
Install Guide: | Download Here |
Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |

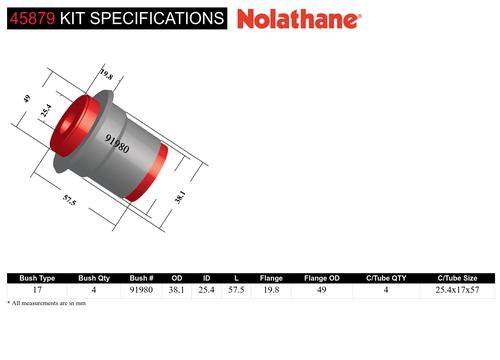

17 | 4 | 38.1 mm | 25.4 mm | 57.5 mm | 19.8 mm | 49 mm | 4 | 25.4x17x57 mm | click here |
Bush Type | 17 |
Bush Qty | 4 |
OD (A) | 38.1 mm |
ID (B) | 25.4 mm |
L (C) | 57.5 mm |
FL (D) | 19.8 mm |
FLOD (E) | 49 mm |
C/Tube QTY | 4 |
C/Tube Size | 25.4x17x57 mm |
Similar Bushing Size | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
Click to Download | 2 hrs | Trade Specialist | Yes |
Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
04 | EVEN A | 03 | ODD A | 06 | EVEN A | M16 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
Click to Download | 2 hrs | Trade Specialist | Yes |
Press Sleeve # (IN) | 04 |
Press Plate # (IN) | EVEN A |
Press Sleeve # (OUT) | 03 |
Press Plate # (OUT) | ODD A |
Support Sleeve # | 06 |
Press Plate # | EVEN A |
Threaded Rod # | M16 |
Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
