Nolathane
45857
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45857
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

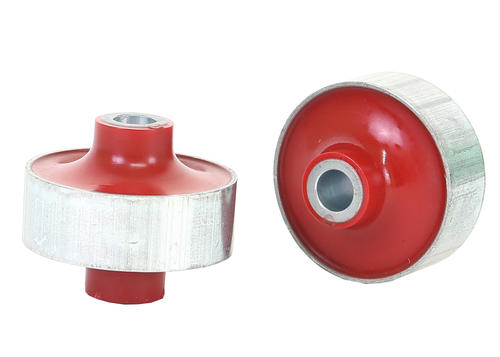

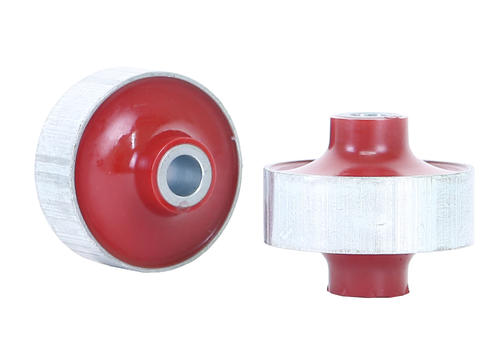

Kit Contents: 2 Shell bushings, 2 Spacers, Install Guide
Important Notes
Suits steel arm - standard replacement
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a 3 Year / 60,000kms warranty including parts and labour.
This kit is covered by a limited lifetime warranty including parts and labour.

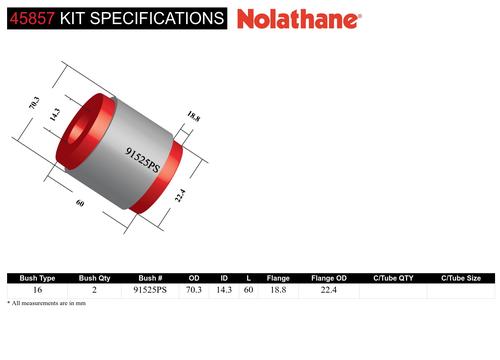

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 2 70.3 mm 14.3 mm 60 mm 18.8 mm 22.4 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 70.3 mm
ID (B) 14.3 mm
L (C) 60 mm
FL (D) 18.8 mm
FLOD (E) 22.4 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
10 EVEN A 09 ODD A 12 EVEN B M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) 10
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 09
Press Plate # (OUT) ODD A
Support Sleeve # 12
Press Plate # EVEN B
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45857
Vehicle Applications
45857 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HYUNDAI ELANTRA 2006-2011 - ELANTRA HD
HYUNDAI ELANTRA 2015-ON - ELANTRA AD
HYUNDAI ELANTRA 2016-ON - ELANTRA AD SR
HYUNDAI I30 2016-ON - I30 PD
HYUNDAI I30 N 2017-ON - I30 N PD HATCH AND FASTBACK
HYUNDAI KONA 2017-ON - KONA OS
HYUNDAI VELOSTER 2018-ON - VELOSTER JS
KIA CERATO 2019-ON - CERATO BD GT
KIA CERATO 2018-ON - CERATO BD EXCL GT
