45838
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
45838
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Kits Required: 1
Warranty: Limited Lifetime Warranty

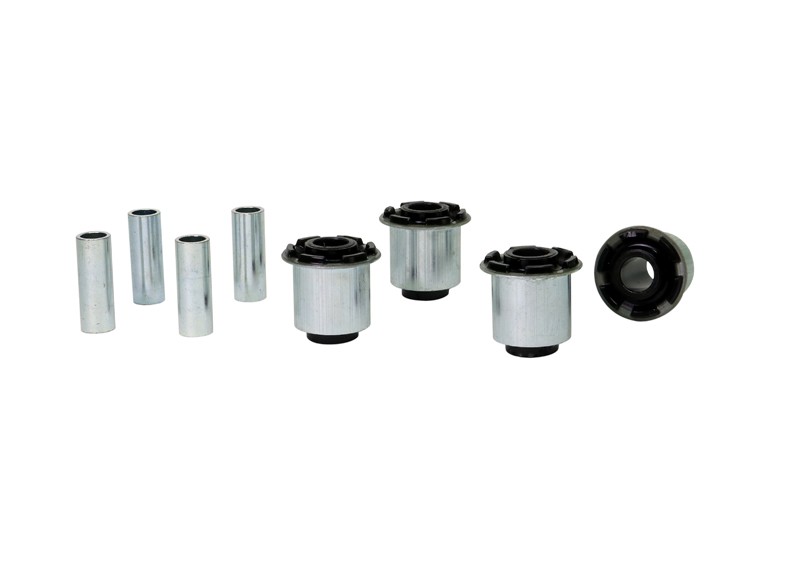

Kit Contents: 4 Shell Bushings, 4 Tubes
Important Notes
Service bushing kit - suits Nolathane 45976 arms only
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
17 4 41.5 mm 14.3 mm 53 mm 7.4 mm 28 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 17
Bush Qty 4
OD (A) 41.5 mm
ID (B) 14.3 mm
L (C) 53 mm
FL (D) 7.4 mm
FLOD (E) 28 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
04 EVEN A 03 ODD A 06 EVEN A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 04
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 03
Press Plate # (OUT) ODD A
Support Sleeve # 06
Press Plate # EVEN A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven tyre wear

How hard is Nolathane?

Mark Larkham talks Dual Cab Utes
Videos

Uneven tyre wear

How hard is Nolathane?

Mark Larkham talks Dual Cab Utes
45838
Vehicle Applications
45838 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD EVEREST 2015-ON - EVEREST UA, UAII 2WD
FORD EVEREST 2015-ON - EVEREST UA, UAII 4WD
FORD RANGER 4WD 2011-2015 - RANGER PX I 4WD
FORD RANGER 4WD 2015-2018 - RANGER PX II 4WD
FORD RANGER 4WD 2018-ON - RANGER PX III 4WD
MAZDA BT-50 4WD 2011-2020 - BT-50 UP, UR 4WD
