Nolathane
45824

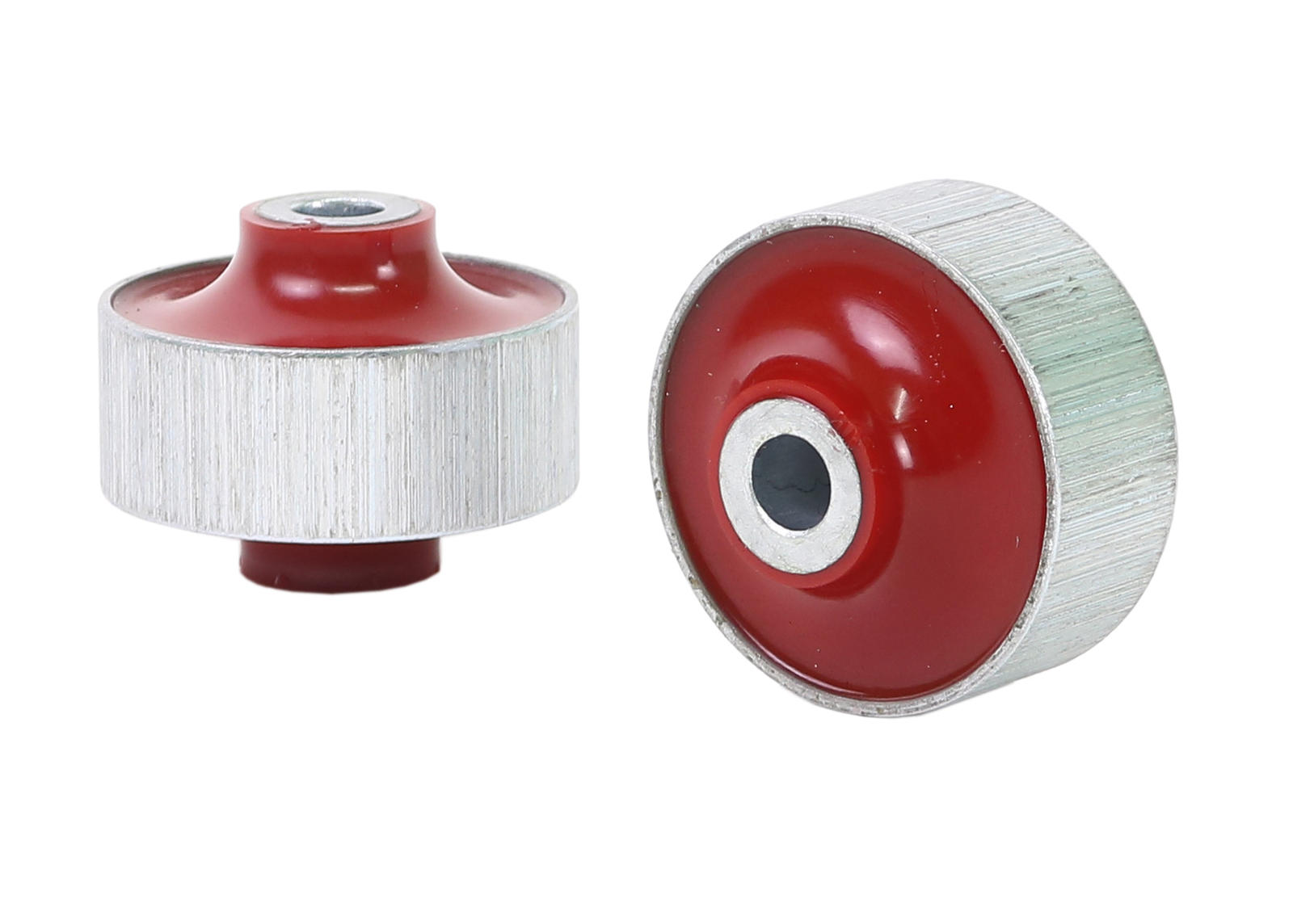

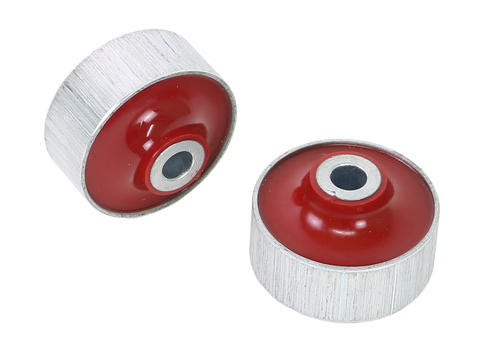

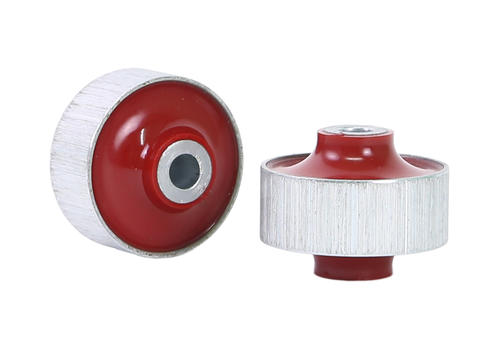

Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45824
Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge


Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Shell Bushings
Important Notes
  • Standard Alignment
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 2 64.4 mm 12.2 mm 26 mm 12 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16
Bush Qty 2
OD (A) 64.4 mm
ID (B) 12.2 mm
L (C) 26 mm
FL (D) 12 mm
FLOD (E)
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
4 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
09 Odd A 08 Even A 11 Odd B M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
4 hrs Trade Specialist Yes
Press Sleeve # (IN) 09
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 08
Press Plate # (OUT) Even A
Support Sleeve # 11
Press Plate # Odd B
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

45824
Vehicle Applications
45824 is suitable for the following vehicles. Select a vehicle for specific fitment details:
AUDI A3 2012-2020 - A3 8V FWD
AUDI A3 2012-2020 - A3 8V QUATTRO
AUDI A3 2012-2020 - S3 8V
AUDI A3 2015-2020 - RS3 8V
AUDI A3 2020-ON - S3 8Y
AUDI A3 2020-ON - A3 8Y FWD
AUDI A3 2021-ON - RS3 8Y
AUDI A3 2021-ON - A3 8Y QUATTRO
AUDI Q2 2016-ON - Q2 GA QUATTRO
AUDI Q2 2016-ON - Q2 GA FWD
AUDI Q2 2018-ON - SQ2 GA
AUDI TT 2014-ON - TT FV QUATTRO
AUDI TT 2014-ON - TT FV FWD
SKODA OCTAVIA 2012-2019 - OCTAVIA 5E FWD
SKODA OCTAVIA 2012-2019 - OCTAVIA 5E AWD
SKODA OCTAVIA 2019-ON - OCTAVIA NX FWD
VW CADDY 2004-2015 - CADDY MK3 TYP 2K FWD
VW CADDY 2004-2015 - CADDY MK3 TYP 2K 4MOTION
VW CADDY 2015-2021 - CADDY MK4 TYP SA FWD
VW GOLF 2012-2020 - GOLF MK7 TYP 5G, BA, BV FWD
VW GOLF 2013-2020 - GOLF MK7 R TYP 5G, BA, BV
VW GOLF 2013-2020 - GOLF MK7 GTI, GTD TYP 5G
VW GOLF 2020-ON - GOLF MK8 R CD, CG
VW GOLF 2020-ON - GOLF MK8 GTI TYP CD
VW GOLF 2019-ON - GOLF MK8 CD, CG FWD
VW GOLF ALLTRACK 2014-2020 - GOLF ALLTRACK MK7 BA, BV
VW JETTA 2010-2018 - JETTA MK6 TYP 162, 163, AV
VW T-ROC 2017-ON - T-ROC A1, D1 4MOTION
VW T-ROC 2020-ON - T-ROC A1, D1 FWD
