45819
Front Leading Arm - To Differential Bushing Kit
*** CONTACT NOLATHANE ***
45819
Front Leading Arm - To Differential Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

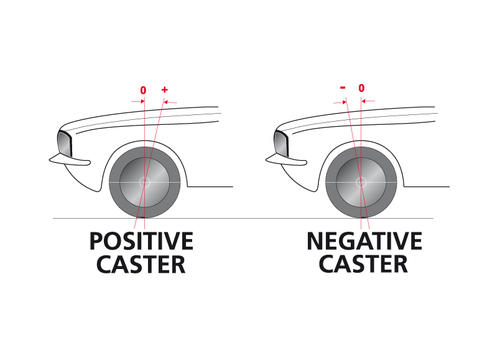

Raised your 4x4 and suffering vague steering or worse high speed tyre vibration's? Nolathane's caster correction kit features offset mounting points providing improved caster geometry for high precision steering and improved tyre performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 4 Shell Bushings, Install Guide, Grease
Install Guide: Download Here
Important Notes
2.5deg caster adjustment - suits vehicles raised to 2 inch
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 4 61.45 mm 16 mm 40.3 mm 5.4 mm 22.4 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Caster Offset No Adds + 2.5deg
Kit Specifications
Bush Type 16
Bush Qty 4
OD (A) 61.45 mm
ID (B) 16 mm
L (C) 40.3 mm
FL (D) 5.4 mm
FLOD (E) 22.4 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Caster
Adjustment Type Offset
On Car Adjustable No
Adjustment Notes Adds + 2.5deg
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
08 EVEN A 07 ODD A 10 EVEN A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) 08
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 07
Press Plate # (OUT) ODD A
Support Sleeve # 10
Press Plate # EVEN A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven tyre wear

Larko talks Bushing Lubrication

Why Nolathane your 4x4
Videos

Uneven tyre wear

Larko talks Bushing Lubrication

Why Nolathane your 4x4
45819
Vehicle Applications
45819 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD MAVERICK 1988-1994 - MAVERICK DA WAGON
NISSAN PATROL 1988-1997 - PATROL GQ Y60 WAGON
NISSAN PATROL 1988-1997 - PATROL GQ Y60 CAB CHASSIS (COIL SPRING FRONT AND REAR)
NISSAN PATROL 1997-2016 - PATROL GU Y61 WAGON
NISSAN PATROL 1999-2016 - PATROL GU Y61 CAB CHASSIS (COIL SPRING FRONT AND LEAF SPRING REAR)
NISSAN PATROL 1999-2016 - PATROL GU Y61 CAB CHASSIS (COIL SPRING FRONT AND REAR)
TOYOTA LAND CRUISER 1990-1996 - LAND CRUISER 70 SERIES KZJ, PZJ
TOYOTA LAND CRUISER 1990-1998 - LAND CRUISER 80 SERIES
TOYOTA LAND CRUISER 1998-2007 - LAND CRUISER 105 SERIES
