| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |

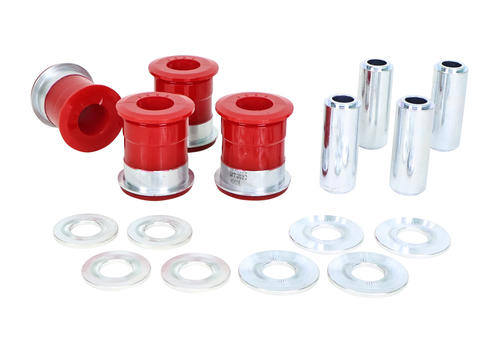

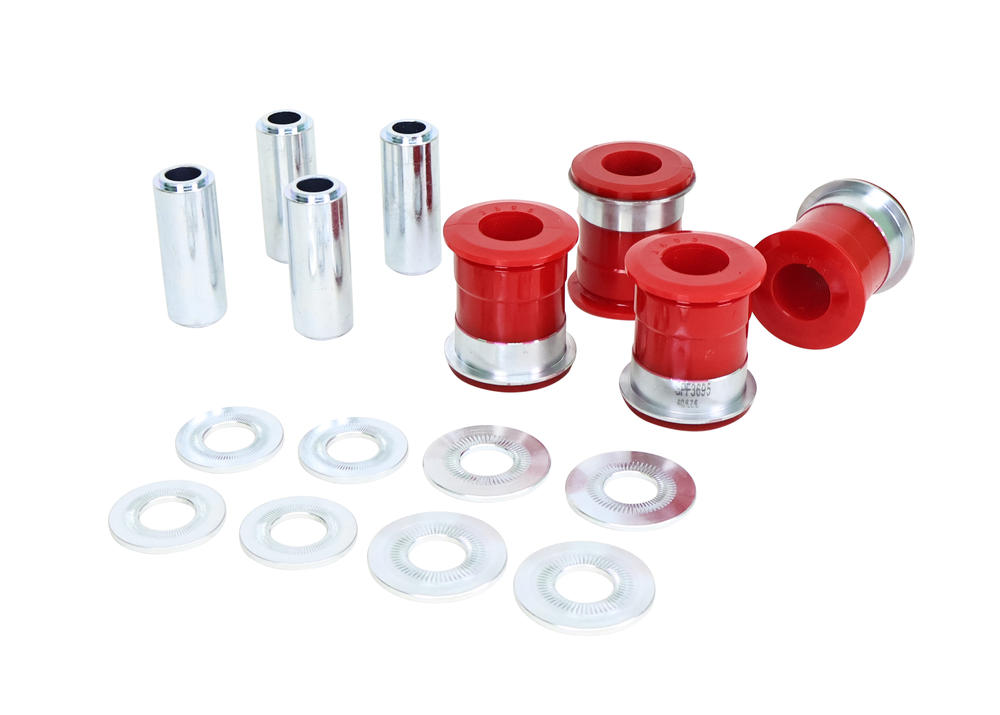

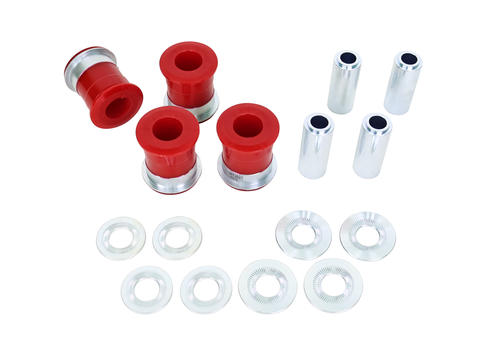

| Kit Contents: | 4 Bushings, 4 Tubes, 8 Washers, Install Guide, Grease |
| Install Guide: | Download Here |
Important Notes
US $ NAN
| Kits Required: | 1 |
| Warranty: | Limited Lifetime Warranty |
| Kit Contents: | 4 Bushings, 4 Tubes, 8 Washers, Install Guide, Grease |
| Install Guide: | Download Here |
| Bush Type |
Bush Qty |
OD (A) |
ID (B) |
L (C) |
FL (D) |
FLOD (E) |
C/Tube QTY |
C/Tube Size |
Similar Bushing Size |
| 1 | 2 | 49.9 mm | 25.3 mm | 70 mm | 8.8 mm | 58 mm | 4 | 25.4x16.2x70 mm | click here |
| Bush Type | 1 |
| Bush Qty | 2 |
| OD (A) | 49.9 mm |
| ID (B) | 25.3 mm |
| L (C) | 70 mm |
| FL (D) | 8.8 mm |
| FLOD (E) | 58 mm |
| C/Tube QTY | 4 |
| C/Tube Size | 25.4x16.2x70 mm |
| Similar Bushing Size | click here |
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 2 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) |
Press Plate # (IN) |
Press Sleeve # (OUT) |
Press Plate # (OUT) |
Support Sleeve # |
Press Plate # |
Threaded Rod # |
Press In/Out Kit |
| N/A | N/A | 05 | ODD A | 08 | EVEN A | M16 | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
| Install Guide |
Fitment Time |
Degree of Difficulty |
Recommend Wheel Alignment |
| Click to Download | 2 hrs | Trade Specialist | Yes |
| Press Sleeve # (IN) | N/A |
| Press Plate # (IN) | N/A |
| Press Sleeve # (OUT) | 05 |
| Press Plate # (OUT) | ODD A |
| Support Sleeve # | 08 |
| Press Plate # | EVEN A |
| Threaded Rod # | M16 |
| Press In/Out Kit | NTK001 |
Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.
