45752

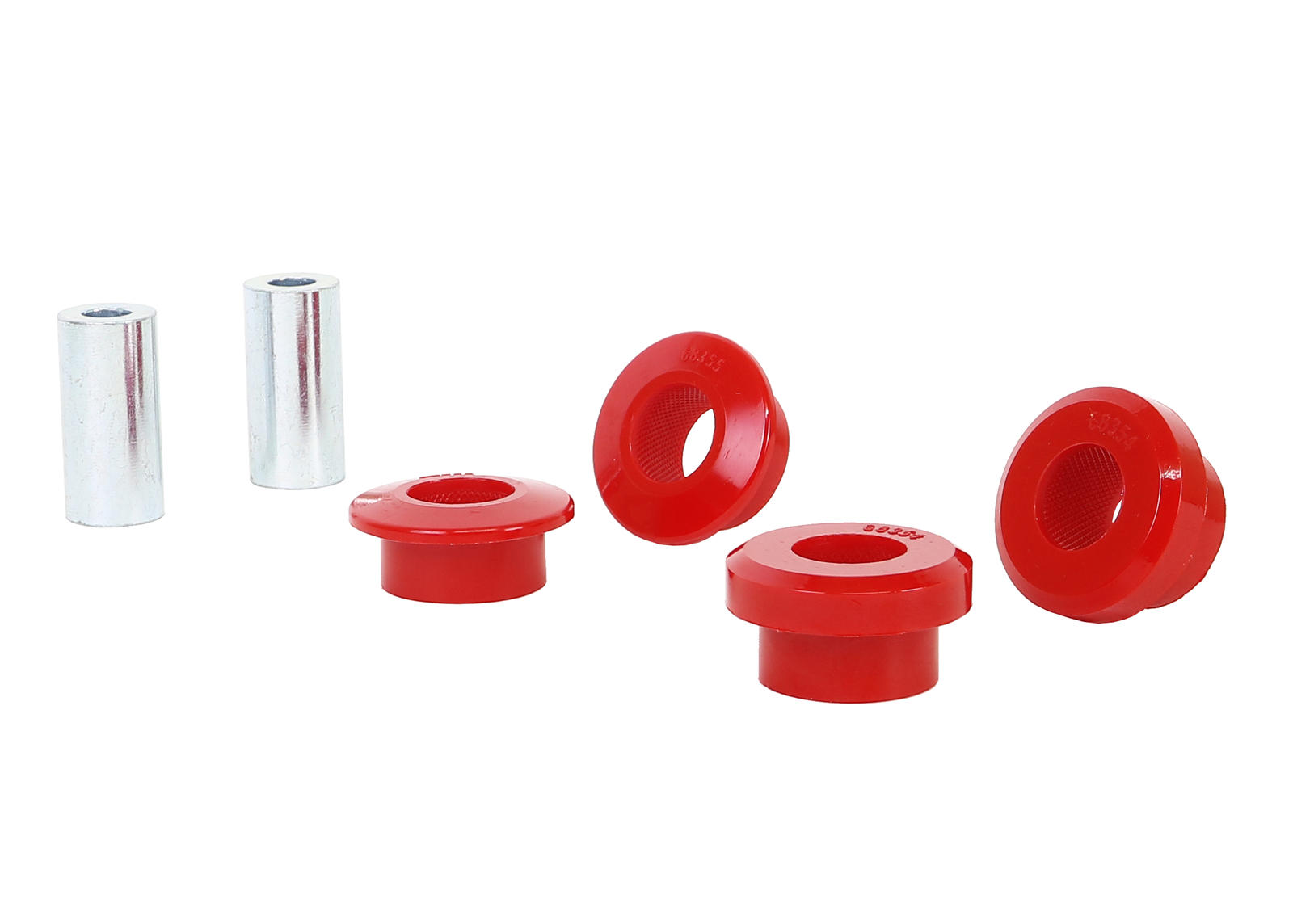

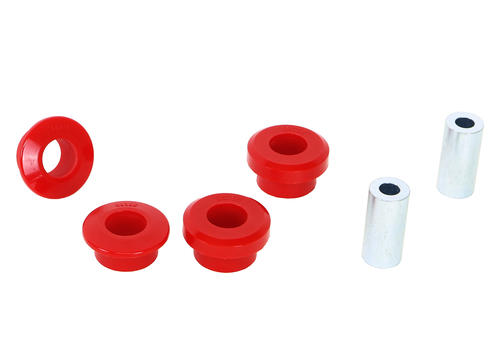

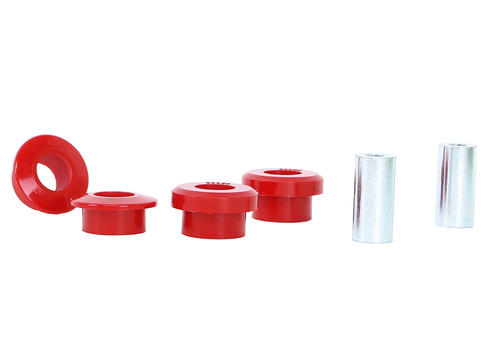

Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45752
Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 4 Bushings, 2 Tubes
Install Guide: Download Here
Important Notes
  • Fitter friendly design
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 2 44.9 mm 28.6 mm 33.4 mm 14 mm 61.2 mm 2 28.6x14.3x60 mm click here
1 2 44.9 mm 28.6 mm 25.3 mm 7 mm 61.2 mm 2 28.6x14.3x60 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1 1
Bush Qty 2 2
OD (A) 44.9 mm 44.9 mm
ID (B) 28.6 mm 28.6 mm
L (C) 33.4 mm 25.3 mm
FL (D) 14 mm 7 mm
FLOD (E) 61.2 mm 61.2 mm
C/Tube QTY 2 2
C/Tube Size 28.6x14.3x60 mm 28.6x14.3x60 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 04 EVEN A 07 ODD A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 04
Press Plate # (OUT) EVEN A
Support Sleeve # 07
Press Plate # ODD A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

45752
Vehicle Applications
45752 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD FAIRLANE 1999-2002 - AU
FORD FAIRLANE 2003-2007 - BA, BF
FORD FAIRMONT 1998-2002 - AU SEDAN SOLID REAR AXLE
FORD FAIRMONT 1998-2002 - AU WAGON, UTE AND CAB CHASSIS
FORD FAIRMONT 1998-2002 - AU SEDAN IRS
FORD FAIRMONT 2002-2008 - BA, BF SEDAN
FORD FALCON 1998-2002 - AU SEDAN IRS
FORD FALCON 1998-2002 - AU SEDAN SOLID REAR AXLE
FORD FALCON 1998-2002 - AU WAGON, UTE AND CAB CHASSIS
FORD FALCON 2002-2008 - BA, BF WAGON, UTE AND CAB CHASSIS
FORD FALCON 2002-2008 - BA, BF SEDAN
FORD LTD 1999-2002 - AU
FORD LTD 2003-2007 - BA, BF
FORD TICKFORD TE 50 1998-2002 - AU SEDAN IRS
FORD TICKFORD TL 50 1998-2002 - AU SEDAN IRS
FORD TICKFORD TS 50 1998-2002 - AU SEDAN IRS
FPV FALCON 2003-2008 - PURSUIT / SUPER PURSUIT BA, BF
FPV FALCON 2003-2008 - GT / GT-E / GT-P / COBRA BA, BF SEDAN
FPV FALCON 2004-2008 - F6 TORNADO BA, BF
FPV FALCON 2004-2006 - F6 TYPHOON BA
FPV FALCON 2005-2007 - COBRA BF UTE
FPV FALCON 2005-2007 - FORCE 6 BF
FPV FALCON 2005-2007 - FORCE 8 BF
