Nolathane 45736 Front Axle Control Arm Lower - Inner Rear Bushing Kit-Double Offset
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
45736
Front Axle Control Arm Lower - Inner Rear Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
45736
Front Axle Control Arm Lower - Inner Rear Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

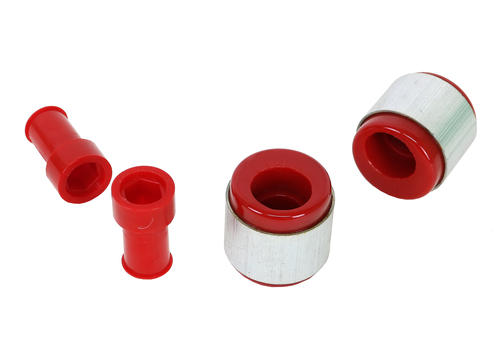

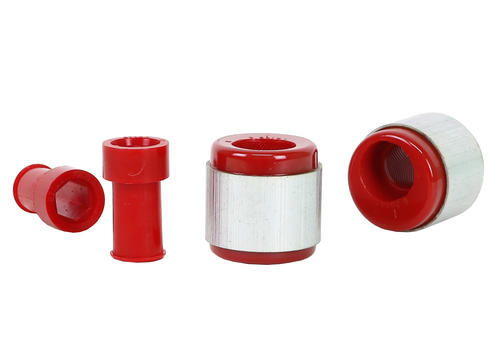

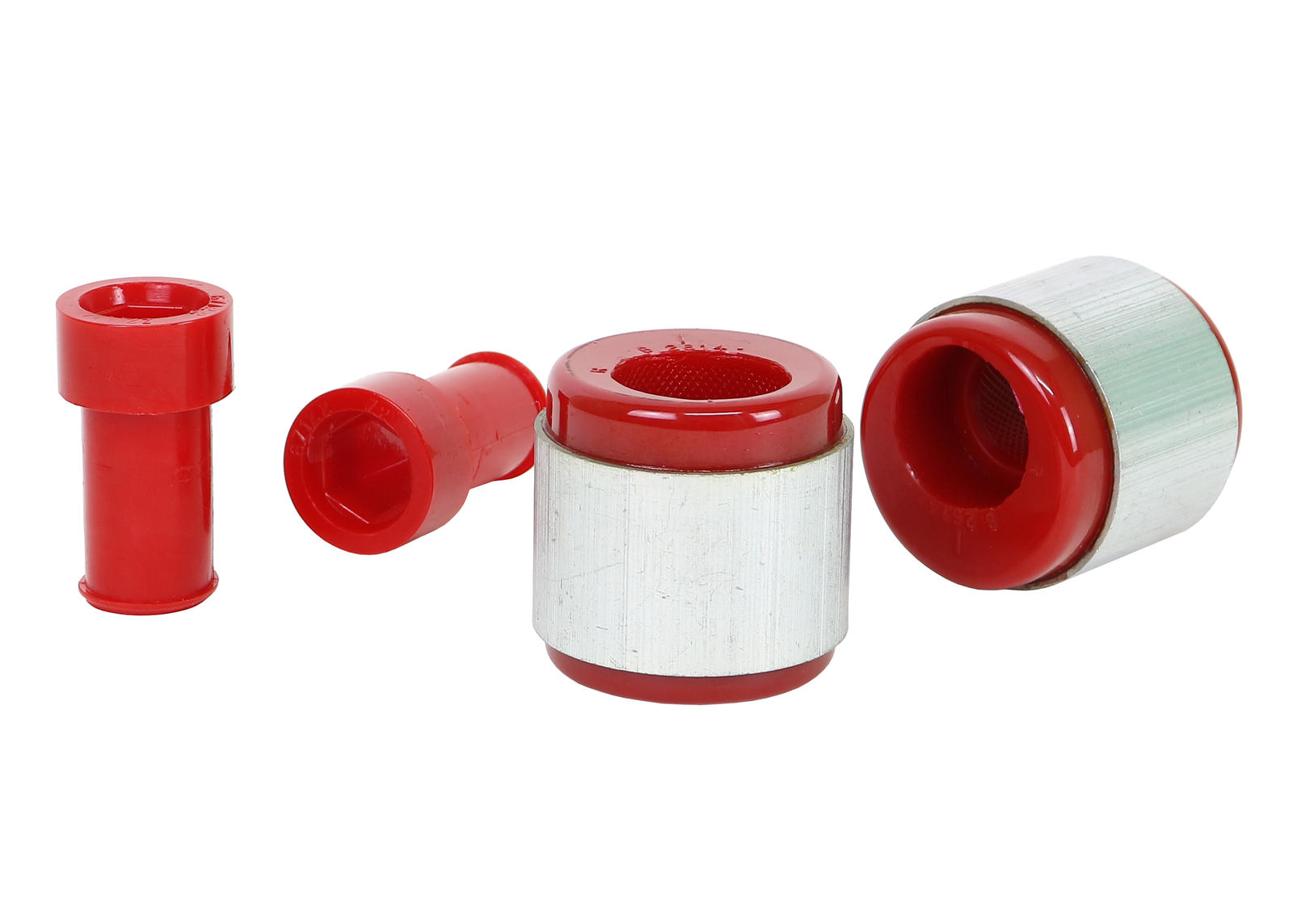

Vehicle Kit Contains:
Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Bushings

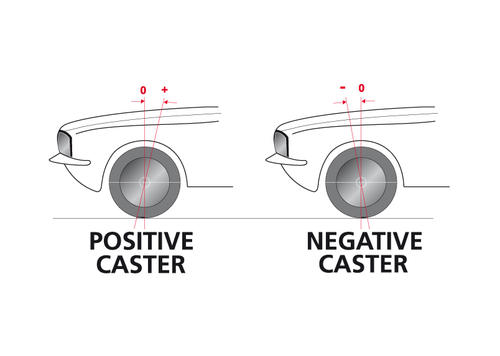

Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability. This kit is supplied with dual offset bushings to give greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved braking performance, and less under load alignment change.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 2 Shell Bushings, 2 Bushings
Install Guide: Download Here
Important Notes
  • Performance Alignment
  • Adds +0.5deg caster
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Bushings

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Shell Bushings, 2 Bushings
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Offset mounting point to rectify vehicles with poor wheel alignment.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Offset mounting point to rectify vehicles with poor wheel alignment.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 4 66.3 mm 28 mm 66.5 mm 12.8 mm 61 mm click here
1 4 28 mm 21 (Hex) mm 67 mm 20 mm 38 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16 1
Bush Qty 4 4
OD (A) 66.3 mm 28 mm
ID (B) 28 mm 21 (Hex) mm
L (C) 66.5 mm 67 mm
FL (D) 12.8 mm 20 mm
FLOD (E) 61 mm 38 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
09 Odd A 08 Even A 11 Odd B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) 09
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 08
Press Plate # (OUT) Even A
Support Sleeve # 11
Press Plate # Odd B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
45736
Vehicle Applications
45736 is suitable for the following vehicles. Select a vehicle for specific fitment details:
MINI MINI 2001-2008 - MINI COOPER R50, R52, R53
MINI MINI 2006-2015 - MINI COOPER R56, R57, R58, R59
MINI MINI CLUBMAN 2007-2014 - MINI CLUBMAN R55
