Nolathane
45716
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
45716
Front Control Arm Upper - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

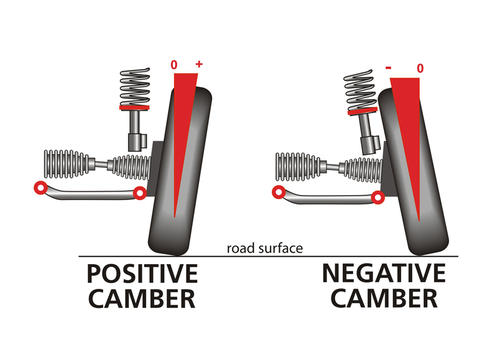

Nolathane camber kits provide additional camber angle resulting in increased grip during cornering and traction under power. The kit includes Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which maintain preferred alignment settings as well as enhanced steering response.
Kits Required: 1
Warranty: Limited Lifetime Warranty

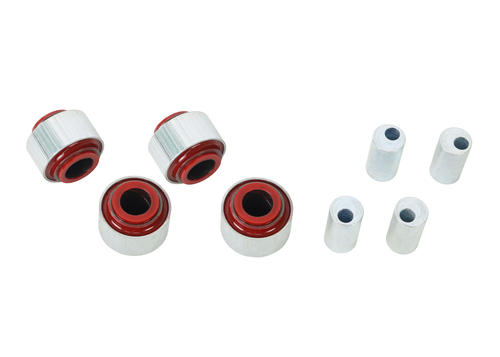

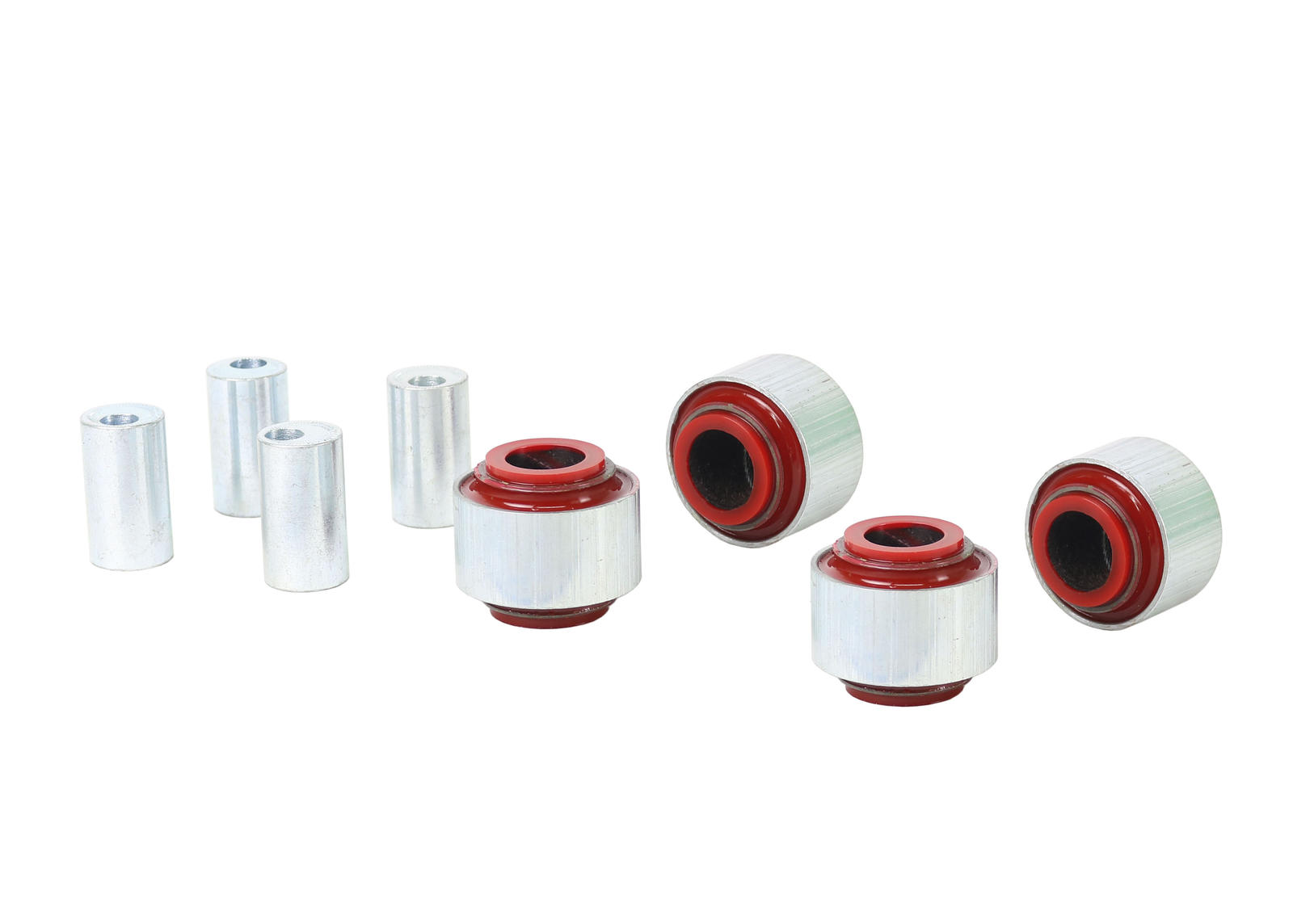

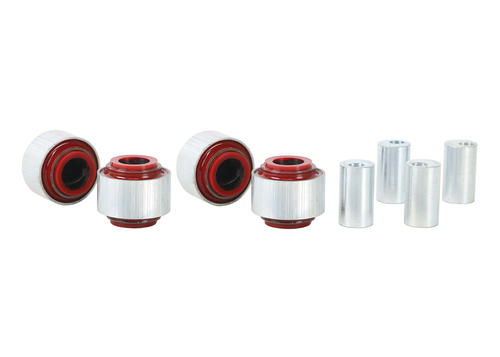

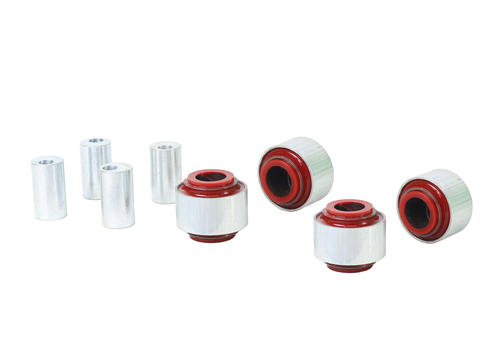

Kit Contents: 4 Shell Bushings, 4 Tubes, Grease
Important Notes
Adds +/- 0.5deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Specially bonded design for optimised strength typically required in high load bearing applications.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 4 46.2 mm 22.3 mm 40.2 mm 7.1 mm 27.4 mm 4 22.2x10.2x40 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Camber Fixed Offset No Adds +/- 0.5deg
Kit Specifications
Bush Type 16
Bush Qty 4
OD (A) 46.2 mm
ID (B) 22.3 mm
L (C) 40.2 mm
FL (D) 7.1 mm
FLOD (E) 27.4 mm
C/Tube QTY 4
C/Tube Size 22.2x10.2x40 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Camber
Adjustment Type Fixed Offset
On Car Adjustable No
Adjustment Notes Adds +/- 0.5deg
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
05 ODD A 04 EVEN A 07 ODD A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 05
Press Plate # (IN) ODD A
Press Sleeve # (OUT) 04
Press Plate # (OUT) EVEN A
Support Sleeve # 07
Press Plate # ODD A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham talks camber

Uneven tyre wear

Larko talks Family Movers
Videos

Mark Larkham talks camber

Uneven tyre wear

Larko talks Family Movers
45716
Vehicle Applications
45716 is suitable for the following vehicles. Select a vehicle for specific fitment details:
AUDI A4 1995-2001 - A4 B5 (TYP 8D) QUATTRO
AUDI A4 1995-2001 - A4 B5 (TYP 8D) FWD
AUDI A4 2000-2004 - A4 B6 (TYP 8E AND 8H) QUATTRO
AUDI A4 2000-2004 - A4 B6 (TYP 8E AND 8H) FWD
AUDI A4 2003-2009 - A4 B7 (TYP 8E AND 8H) FWD
AUDI A4 2003-2009 - A4 B7 (TYP 8E AND 8H) QUATTRO
AUDI A4 2007-2015 - A4 B8 (TYP 8K) FWD
AUDI A4 2007-2015 - A4 B8 (TYP 8K) QUATTRO
AUDI A4 2013-2016 - A4 ALLROAD B8 (TYP 8K)
AUDI A5 2007-2016 - A5 MK1 (TYP 8F, 8T) QUATTRO
AUDI A5 2007-2016 - A5 MK1 (TYP 8F, 8T) FWD
AUDI A6 1997-2005 - A6 C5 (TYP 4B) QUATTRO
AUDI A6 1997-2005 - A6 C5 (TYP 4B) FWD
AUDI A6 2000-2005 - A6 ALLROAD C5 (TYP 4B)
AUDI A6 2004-2011 - A6 C6 (TYP 4F) FWD
AUDI A6 2004-2011 - A6 C6 (TYP 4F) QUATTRO
AUDI A6 2006-2011 - A6 ALLROAD C6 (TYP 4F)
AUDI A6 2011-2018 - A6 C7 (TYP 4G) QUATTRO
AUDI A6 2011-2018 - A6 C7 (TYP 4G) FWD
AUDI A6 2012-2020 - A6 ALLROAD C7 (TYP 4G)
AUDI A7 2010-2018 - A7 C7 (TYP 4G) QUATTRO
AUDI A8 1995-2005 - A8 D2 (TYP 4D) QUATTRO
AUDI A8 1995-2000 - A8 D2 (TYP 4D) FWD
AUDI A8 2003-2010 - A8 D3 (TYP 4E) QUATTRO
AUDI A8 2003-2010 - A8 D3 (TYP 4E) FWD
AUDI A8 2010-2018 - A8 D4 (TYP 4H) QUATTRO
AUDI S4 1997-2001 - S4 B5 (TYP 8D)
AUDI S4 2000-2001 - S4 B5 RS4 (TYP 8D)
AUDI S4 2003-2004 - S4 B6 (TYP 8E AND 8H)
AUDI S4 2004-2009 - S4 B7 (TYP 8E AND 8H)
AUDI S4 2005-2009 - S4 B7 RS4 (TYP 8E AND 8H)
AUDI S4 2008-2015 - S4 B8 (TYP 8K)
AUDI S4 2012-2015 - S4 B8 RS4 (TYP 8K)
AUDI S5 2007-2016 - S5 MK1 (TYP 8F, 8T)
AUDI S5 2010-2017 - S5 MK1 RS5 (TYP 8F, 8T)
AUDI S6 2002-2005 - S6 C5 (TYP 4B)
AUDI S6 2002-2005 - S6 C5 RS6 (TYP 4B)
AUDI S6 2006-2011 - S6 C6 (TYP 4F)
AUDI S6 2008-2010 - S6 C6 RS6 (TYP 4F)
AUDI S6 2012-2018 - S6 C7 (TYP 4G)
