Nolathane 45714 Front Axle Control Arm Upper - Bushing Kit-Double Offset
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
45714
Front Axle Control Arm Upper - Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
45714
Front Axle Control Arm Upper - Bushing Kit-Double Offset
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:

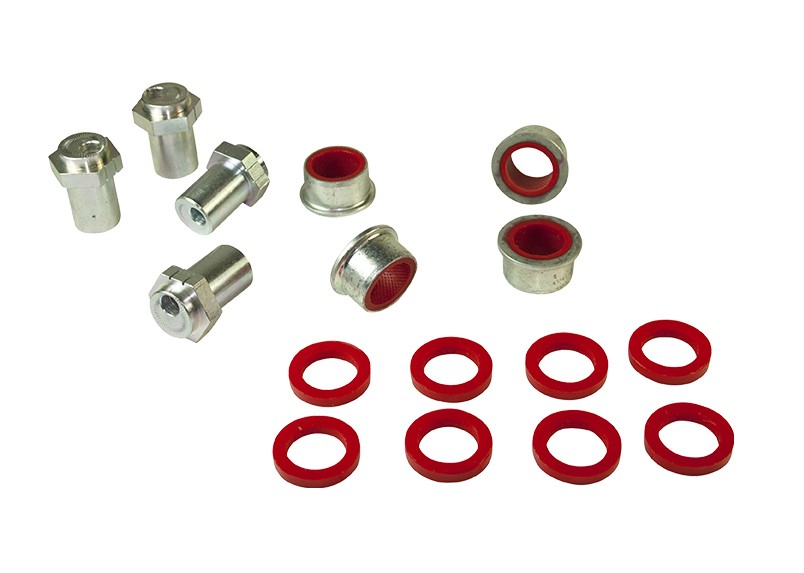

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 8 Bushings, 4 Tubes

Nolathane camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. Whilst the caster kits are designed to improve cornering grip and vehicle straight line stability, greater steering feel, more steering weight, greater precision all through increased static caster and dynamic negative camber gain. In addition, The kit is supplied with dual offset Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help provide enhanced steering response, improved braking performance and less under load alignment change.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 4 Shell Bushings, 8 Bushings, 4 Tubes
Install Guide: Download Here
Important Notes
  • Performance Alignment

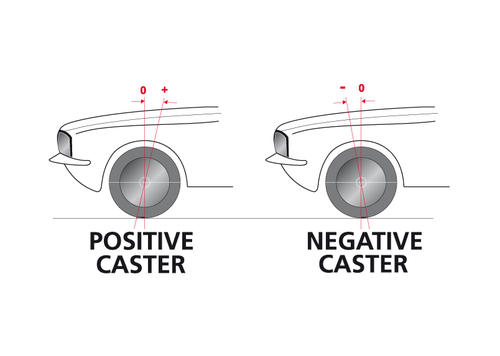

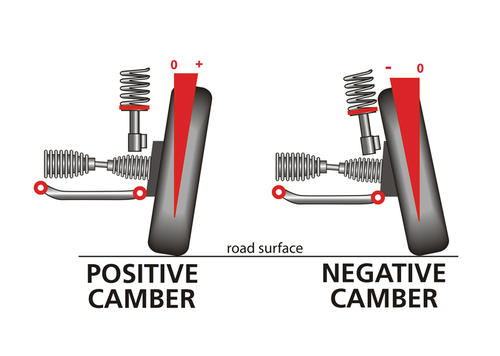

  • Adds +0.66deg caster +/- 0.66deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 8 Bushings, 4 Tubes

Contents
Kit Contains;

Boosts handling and traction, while creating a smoother ride; the best, replacement upgrade. Includes: 4 Shell Bushings, 8 Bushings, 4 Tubes
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
7 12 35.5 mm 24.5 mm 20.2 mm 4 24.5x10.3x47.3 mm click here
17 12 34.2 mm 24.5 mm 6.2 mm 3.2 mm 40 mm 4 24.5x10.3x47.3 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 7 17
Bush Qty 12 12
OD (A) 35.5 mm 34.2 mm
ID (B) 24.5 mm 24.5 mm
L (C) 20.2 mm 6.2 mm
FL (D) 3.2 mm
FLOD (E) 40 mm
C/Tube QTY 4 4
C/Tube Size 24.5x10.3x47.3 mm 24.5x10.3x47.3 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
03 Odd A 02 Even A 05 Odd A M10 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) 03
Press Plate # (IN) Odd A
Press Sleeve # (OUT) 02
Press Plate # (OUT) Even A
Support Sleeve # 05
Press Plate # Odd A
Threaded Rod # M10
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

Mark Larkham Talks Camber

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

Mark Larkham Talks Camber

Larko Talks Bushing Lubrication
45714
Vehicle Applications
45714 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HONDA CIVIC 1994-2001 - CIVIC 6TH GEN EJ, EK, EM
HONDA CR-V 1995-2002 - CR-V RD1-RD3
