Nolathane
45711
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
45711
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

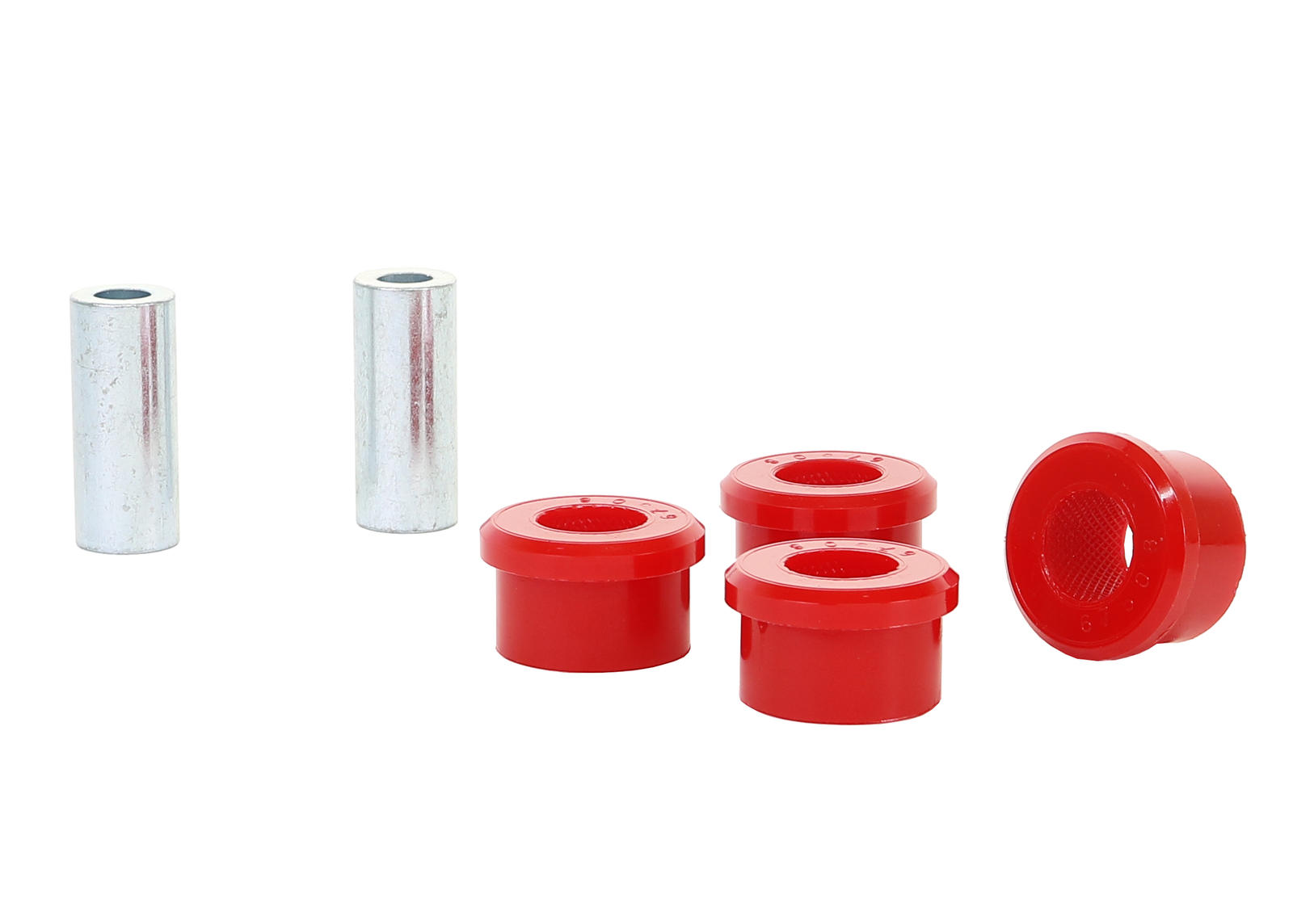

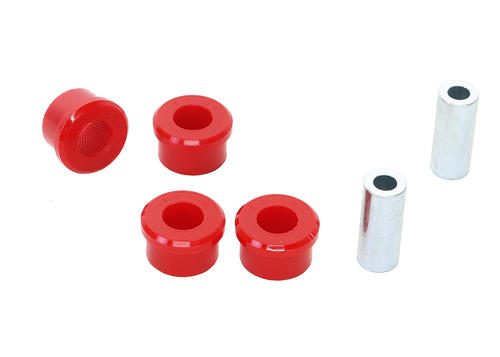

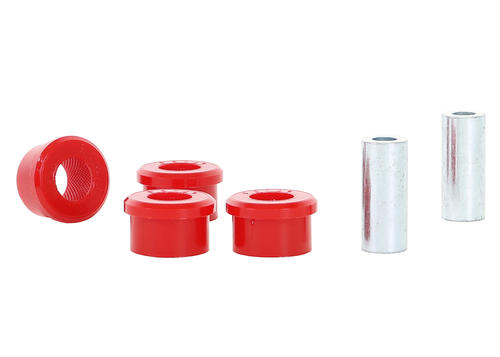

Kit Contents: 4 Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 37.7 mm 21.8 mm 27.3 mm 7.3 mm 43.6 mm 2 22.2x12.2x54 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 37.7 mm
ID (B) 21.8 mm
L (C) 27.3 mm
FL (D) 7.3 mm
FLOD (E) 43.6 mm
C/Tube QTY 2
C/Tube Size 22.2x12.2x54 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45711
Vehicle Applications
45711 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HYUNDAI ELANTRA 2011-2016 - ELANTRA MD
HYUNDAI ELANTRA 2015-ON - ELANTRA AD
HYUNDAI ELANTRA 2016-ON - ELANTRA AD SR
HYUNDAI I30 2011-2016 - I30 GD
HYUNDAI I30 2016-ON - I30 PD
HYUNDAI I30 N 2017-ON - I30 N PD HATCH AND FASTBACK
HYUNDAI I40 2011-ON - I40 VF
HYUNDAI IX35 2010-2015 - IX35 LM
HYUNDAI KONA 2017-ON - KONA OS
HYUNDAI SANTA FE 2012-2018 - SANTA FE DM
HYUNDAI VELOSTER 2011-2017 - VELOSTER FS
HYUNDAI VELOSTER 2018-ON - VELOSTER JS
KIA CERATO 2013-2018 - CERATO YD
KIA CERATO 2019-ON - CERATO BD GT
KIA CERATO 2018-ON - CERATO BD EXCL GT
KIA CERATO KOUP 2014-2018 - CERATO KOUP YD
KIA SORENTO 2015-2020 - SORENTO UM
KIA SPORTAGE 2010-2015 - SPORTAGE SL
