Nolathane
45710

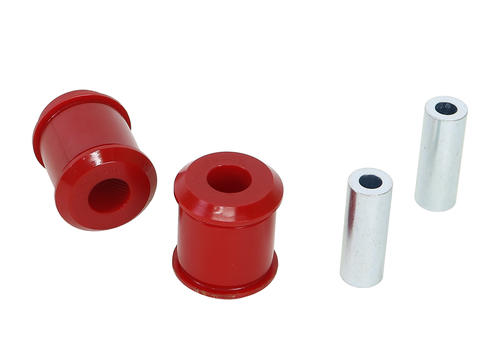

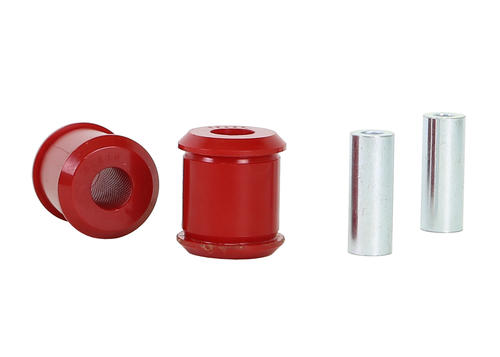

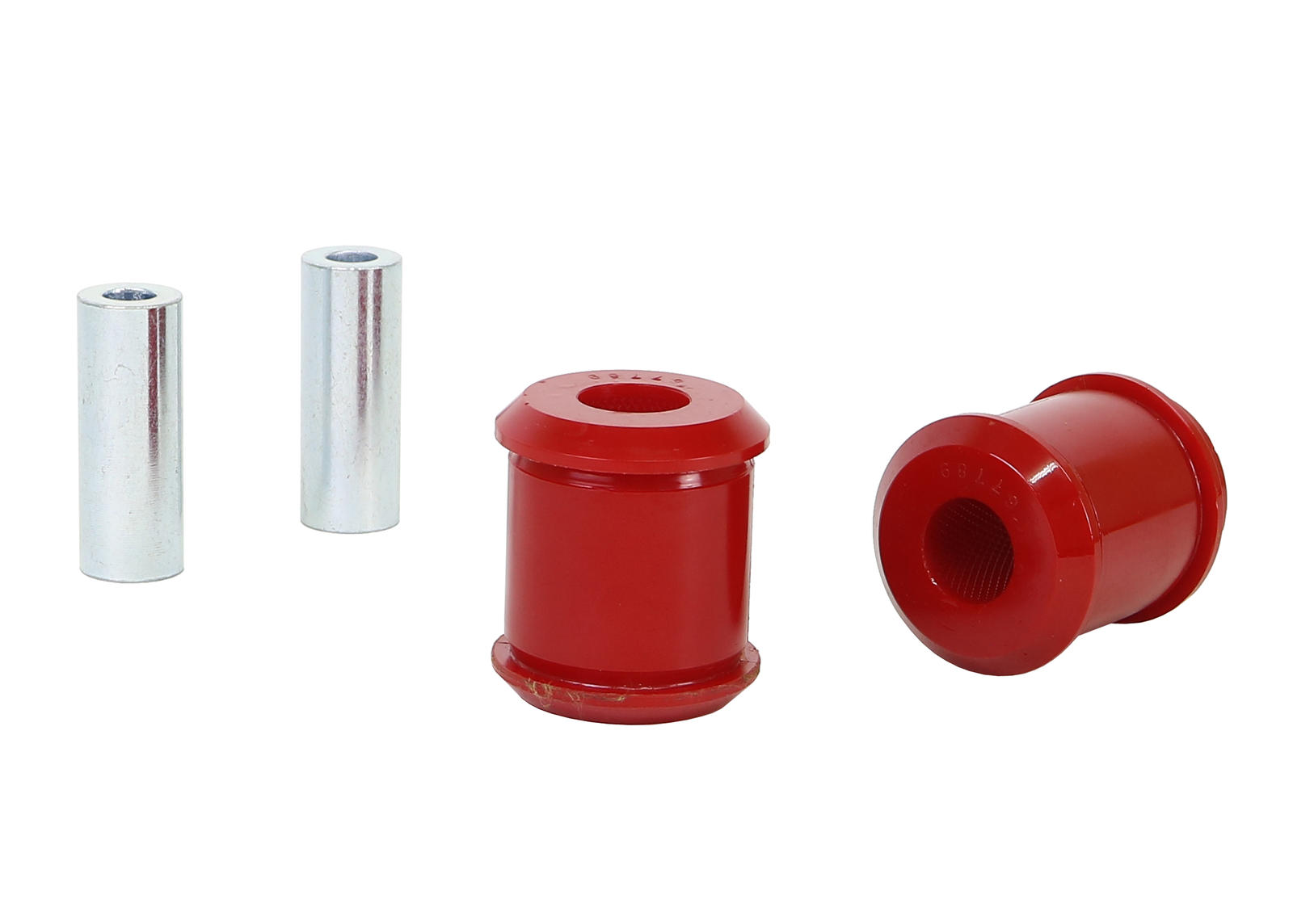

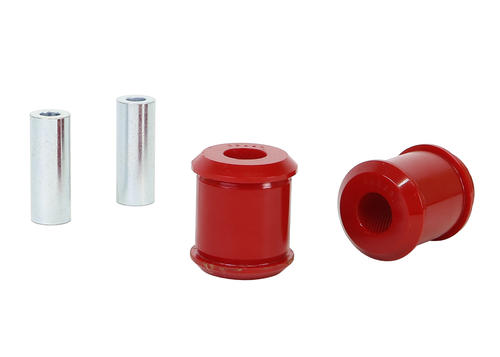

Front Leading Arm - To Chassis Bushing Kit
*** CONTACT NOLATHANE ***
45710
Front Leading Arm - To Chassis Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Suffering uneven tyre wear, unbalanced braking or a less predictable front end while cornering. It could be your leading arm bushings have failed. Replace these worn parts with Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability that offer a safer more predictable vehicle.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
10 2 52 mm 23.4 mm 64.4 mm 8.7 mm 57.3 mm 2 24x12.5x65 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) 52 mm
ID (B) 23.4 mm
L (C) 64.4 mm
FL (D) 8.7 mm
FLOD (E) 57.3 mm
C/Tube QTY 2
C/Tube Size 24x12.5x65 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
2 hrs DIY - With specialist tools Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
N/A EVEN B 05 ODD A 08 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
2 hrs DIY - With specialist tools Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) EVEN B
Press Sleeve # (OUT) 05
Press Plate # (OUT) ODD A
Support Sleeve # 08
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Why Nolathane your 4x4
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Why Nolathane your 4x4
45710
Vehicle Applications
45710 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUZUKI JIMNY 1998-2018 - JIMNY JB23, JB33, JB43, JB53
SUZUKI JIMNY 2018-ON - JIMNY A6G
SUZUKI SIERRA 1995-1998 - SIERRA SJ413 (COIL SPRING)
