Nolathane
45709
Front Leading Arm - To Differential Bushing Kit
*** CONTACT NOLATHANE ***
45709
Front Leading Arm - To Differential Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Raised your 4x4 and suffering vague steering or worse high speed tyre vibration's? Nolathane's caster correction kit features offset mounting points providing improved caster geometry for high precision steering and improved tyre performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty

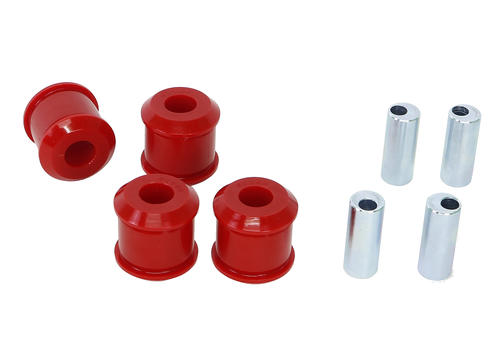

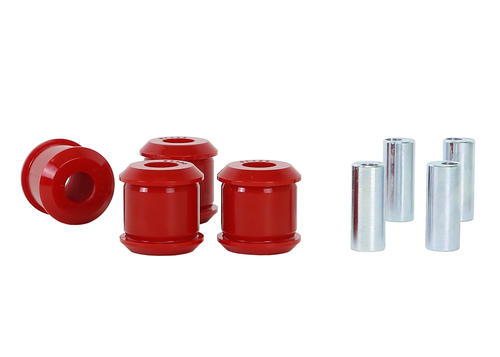

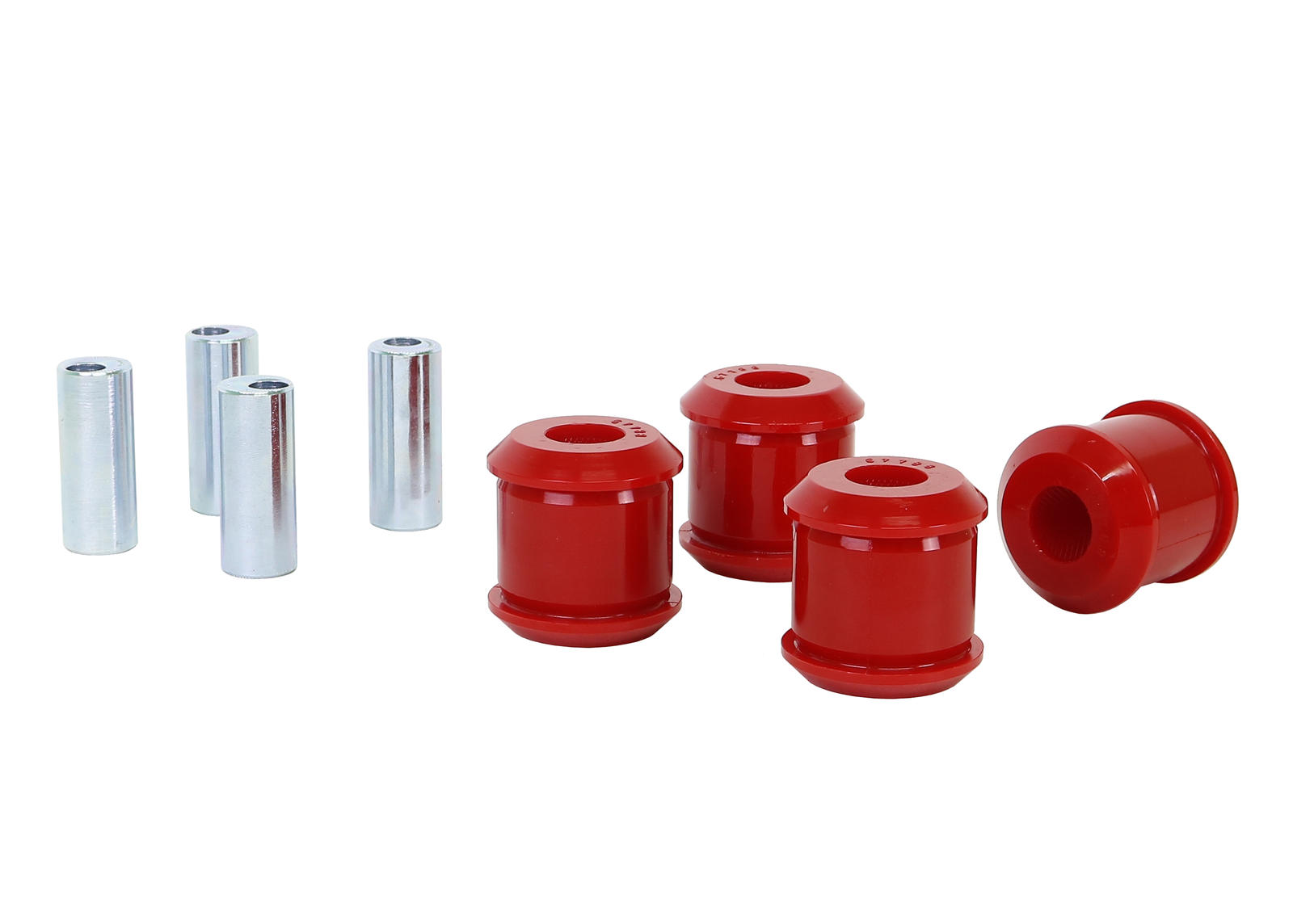

Kit Contents: 4 Bushings, 4 Tubes, Install Guide, Grease
Install Guide: Download Here
Important Notes
2.5deg caster adjustment
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.

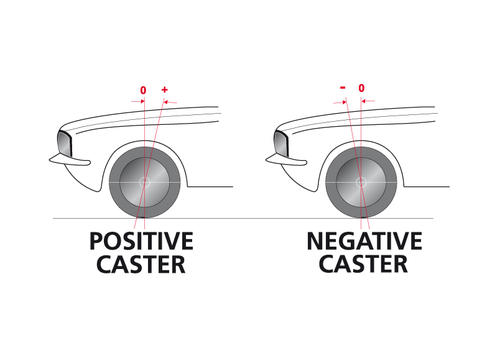

Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
10 4 51.9 mm 23.8 mm 59.2 mm 7 mm 57.5 mm 4 24x12.5x60 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Caster Fixed Offset No Adds + 2.5deg
Kit Specifications
Bush Type 10
Bush Qty 4
OD (A) 51.9 mm
ID (B) 23.8 mm
L (C) 59.2 mm
FL (D) 7 mm
FLOD (E) 57.5 mm
C/Tube QTY 4
C/Tube Size 24x12.5x60 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Caster
Adjustment Type Fixed Offset
On Car Adjustable No
Adjustment Notes Adds + 2.5deg
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A EVEN B 05 ODD A 08 EVEN A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) EVEN B
Press Sleeve # (OUT) 05
Press Plate # (OUT) ODD A
Support Sleeve # 08
Press Plate # EVEN A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven tyre wear

Larko talks Bushing Lubrication

Why Nolathane your 4x4
Videos

Uneven tyre wear

Larko talks Bushing Lubrication

Why Nolathane your 4x4
45709
Vehicle Applications
45709 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUZUKI JIMNY 1998-2018 - JIMNY JB23, JB33, JB43, JB53
SUZUKI JIMNY 2018-ON - JIMNY A6G
SUZUKI SIERRA 1995-1998 - SIERRA SJ413 (COIL SPRING)
