45700
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
45700
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge

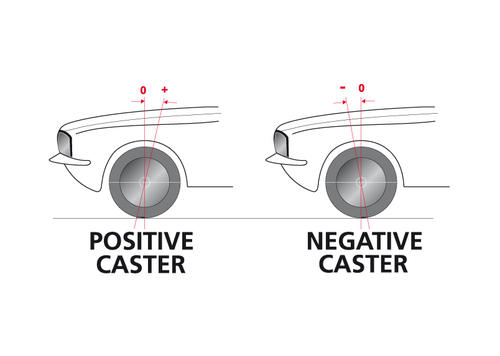

Nolathane caster kits are designed to improve cornering grip and vehicle straight line stability through increased static caster and dynamic negative camber gain. In addition, Nolathane bushings provide improved steering feedback and braking performance.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 2 Shell Bushings, Install Guide
Install Guide: Download Here
Important Notes
Suits 65mm OD - single offset - adds +0.5deg caster - rectify vehicle pulling to the left/ off centre steering wheel
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Offset mounting point to rectify vehicles with poor wheel alignment.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Specially bonded design for optimised strength typically required in high load bearing applications.
Offset mounting point to rectify vehicles with poor wheel alignment.
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
Precisely placed dampening voids further reduces harshness from sudden road inputs.
Articulation voids deliver necessary suspension articulation and/or compression under loads.
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
16 1 65.3 mm 14.3 mm 32 mm 31 mm 40 mm click here
16 1 65 mm 14.3 mm 32 mm 31 mm 40 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Caster Fixed Offset No Adds + 0.5deg
Kit Specifications
Bush Type 16 16
Bush Qty 1 1
OD (A) 65.3 mm 65 mm
ID (B) 14.3 mm 14.3 mm
L (C) 32 mm 32 mm
FL (D) 31 mm 31 mm
FLOD (E) 40 mm 40 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Caster
Adjustment Type Fixed Offset
On Car Adjustable No
Adjustment Notes Adds + 0.5deg
Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
09 ODD A 08 EVEN A 11 ODD B M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) 09
Press Plate # (IN) ODD A
Press Sleeve # (OUT) 08
Press Plate # (OUT) EVEN A
Support Sleeve # 11
Press Plate # ODD B
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven tyre wear

How hard is Nolathane?

Nolathane Technical Ambassador Mark Larkham talks small cars
Videos

Uneven tyre wear

How hard is Nolathane?

Nolathane Technical Ambassador Mark Larkham talks small cars
45700
Vehicle Applications
45700 is suitable for the following vehicles. Select a vehicle for specific fitment details:
HONDA CIVIC 2000-2005 - CIVIC VII EP, ES, EU
HONDA CIVIC 2005-2012 - CIVIC VIII FD
HONDA CIVIC TYPE R 1999-2005 - CIVIC VII EP3 TYPE R
HONDA CR-V 2001-2006 - CR-V RD4-RD7
HONDA INTEGRA 2001-2007 - INTEGRA DC5
HONDA INTEGRA 2001-2007 - INTEGRA DC5 TYPE R, TYPE S
