Nolathane
45697
Front Control Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
45697
Front Control Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Nolathane camber kits provide the ability to fine tune camber settings for optimum tyre contact resulting in improved vehicle handling and increased tyre life. The kit is supplied with dual offset Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability which help maintain preferred alignment settings as well as providing enhanced steering response.
Kits Required: 1
Warranty: Limited Lifetime Warranty

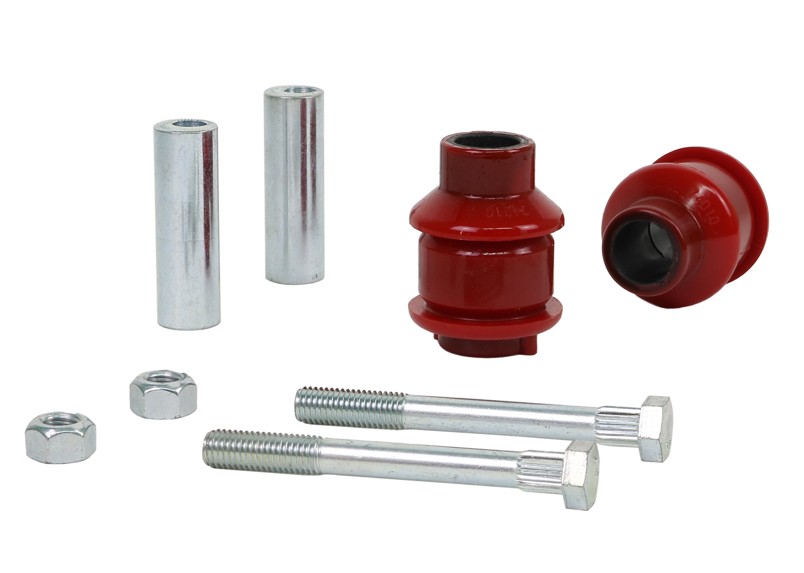

Kit Contents: 2 Bushings, 2 Tubes, 2 Bolts, 2 Nuts, Install Guide
Install Guide: Download Here
Important Notes

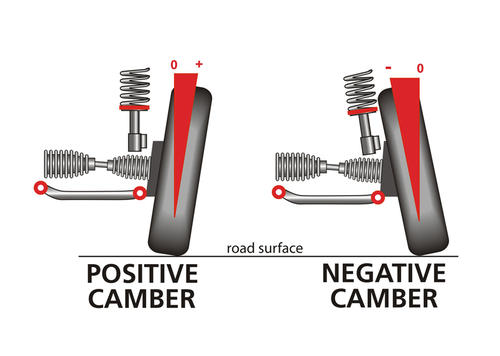

Performance Alignment Kit - adds +/- 0.5deg camber
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Engineered to alter/ optimise camber alignment to compensate for body roll, body distortion and tyre roll when cornering.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
10 2 46.1 mm 22.3 mm 71 mm 28 mm 52.5 mm 2 22x12x71 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Camber Eccentric Yes Adds +/- 0.5deg
Kit Specifications
Bush Type 10
Bush Qty 2
OD (A) 46.1 mm
ID (B) 22.3 mm
L (C) 71 mm
FL (D) 28 mm
FLOD (E) 52.5 mm
C/Tube QTY 2
C/Tube Size 22x12x71 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Camber
Adjustment Type Eccentric
On Car Adjustable Yes
Adjustment Notes Adds +/- 0.5deg
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
N/A EVEN B 04 EVEN A 07 ODD A M12 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) EVEN B
Press Sleeve # (OUT) 04
Press Plate # (OUT) EVEN A
Support Sleeve # 07
Press Plate # ODD A
Threaded Rod # M12
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Mark Larkham Talks Camber

Uneven Tyre Wear

Nolathane Technical Ambassador Mark Larkham Talks Small Cars
Videos

Mark Larkham Talks Camber

Uneven Tyre Wear

Nolathane Technical Ambassador Mark Larkham Talks Small Cars
45697
Vehicle Applications
45697 is suitable for the following vehicles. Select a vehicle for specific fitment details:
BMW 1 SERIES 2004-2011 - 1 SERIES E81, E82, E87, E88
BMW 3 SERIES 2004-2013 - 3 SERIES E90, E91, E92, E93
BMW M SERIES 2007-2013 - M3 E90, E92, E93
BMW M SERIES 2011-2012 - M SERIES E82
BMW X1 2009-2015 - X1 E84 RWD
BMW Z4 2009-2016 - Z4 E89
