45650
Front Control Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
45650
Front Control Arm Lower - Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

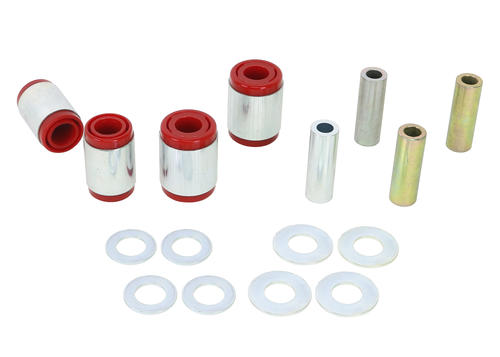

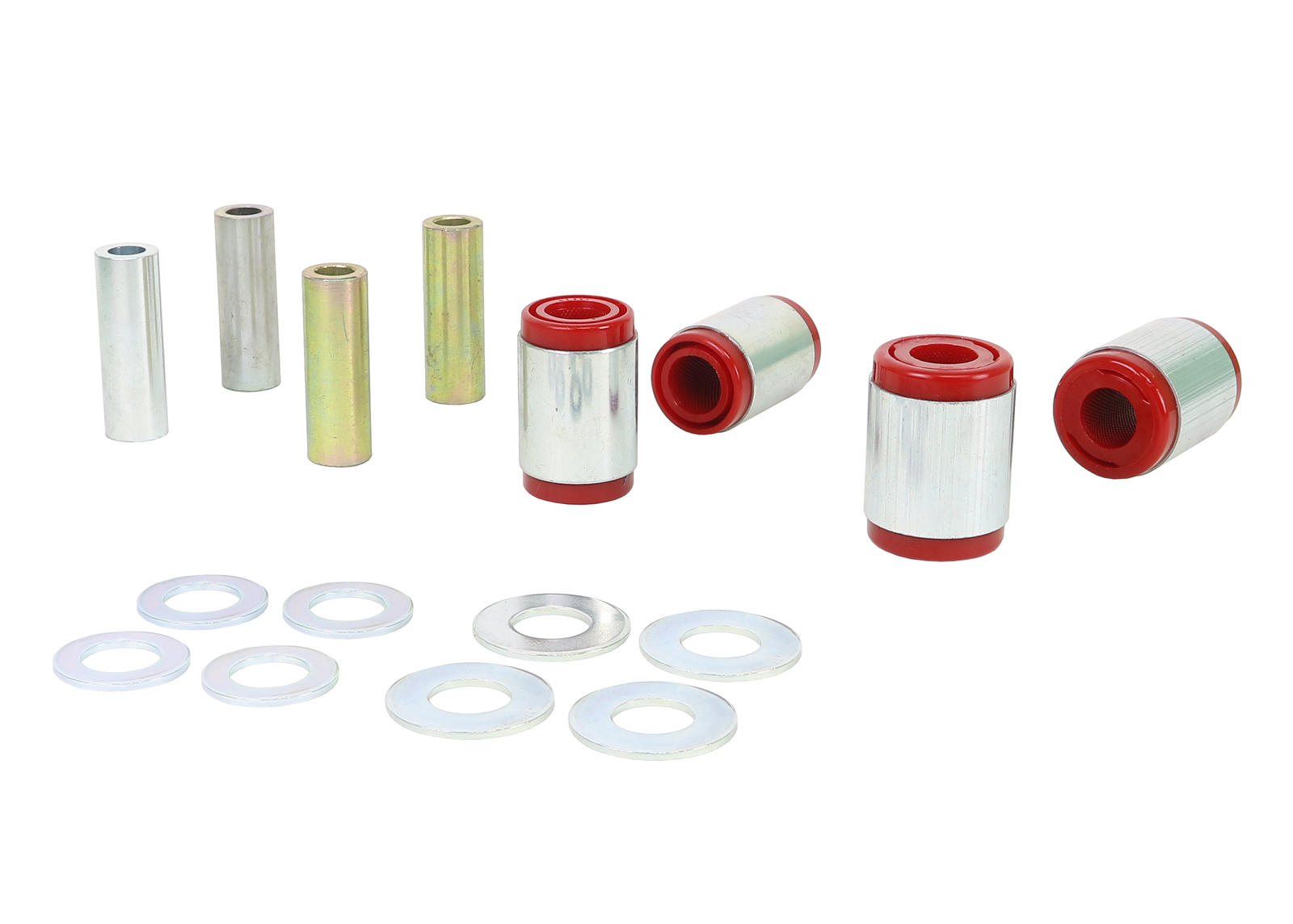

Kit Contents: 4 Shell Bushings, 4 Tubes, 8 Washers, Install Guide, Grease
Install Guide: Download Here
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 48.1 mm 26.6 mm 75.5 mm 10.2 mm 45 mm 4 27x16.2x81 mm click here
16 2 56.1 mm 27 mm 75.5 mm 10.6 mm 53.1 mm 4 27x16.2x81 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 16 16
Bush Qty 2 2
OD (A) 48.1 mm 56.1 mm
ID (B) 26.6 mm 27 mm
L (C) 75.5 mm 75.5 mm
FL (D) 10.2 mm 10.6 mm
FLOD (E) 45 mm 53.1 mm
C/Tube QTY 4 4
C/Tube Size 27x16.2x81 mm 27x16.2x81 mm
Similar Bushing Size click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
06 EVEN A 05 ODD A 08 EVEN A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2 hrs Trade Specialist Yes
Press Sleeve # (IN) 06
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 05
Press Plate # (OUT) ODD A
Support Sleeve # 08
Press Plate # EVEN A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Mark Larkham talks Dual Cab Utes
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Mark Larkham talks Dual Cab Utes
45650
Vehicle Applications
45650 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FOTON TUNLAND 2012-ON - TUNLAND P201 2WD
TOYOTA HILUX 2WD 2005-2015 - HILUX GGN15R, KUN16R, TGN15R, 16R 2WD (IFS FRONT AND LEAF SPRING REAR)
TOYOTA HILUX 2WD 2015-ON - HILUX GGN120R, GUN122R,123R, 136R, TGN121R 2WD (IFS FRONT AND LEAF SPRING REAR)
