45628
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45628
Front Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Not all roads are flat – believe it or not sometimes the road can cause the car to pull either left or right – This Nolathane Kit is supplied with a passenger side offset bushing to increase caster and a drivers side standard bushing to maintain OEM caster. This will allow the wheel alignment geometry to be adjusted accordingly to rectify the pull in the car by staggering the offset of the caster. This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight.
Kits Required: 1
Warranty: Limited Lifetime Warranty

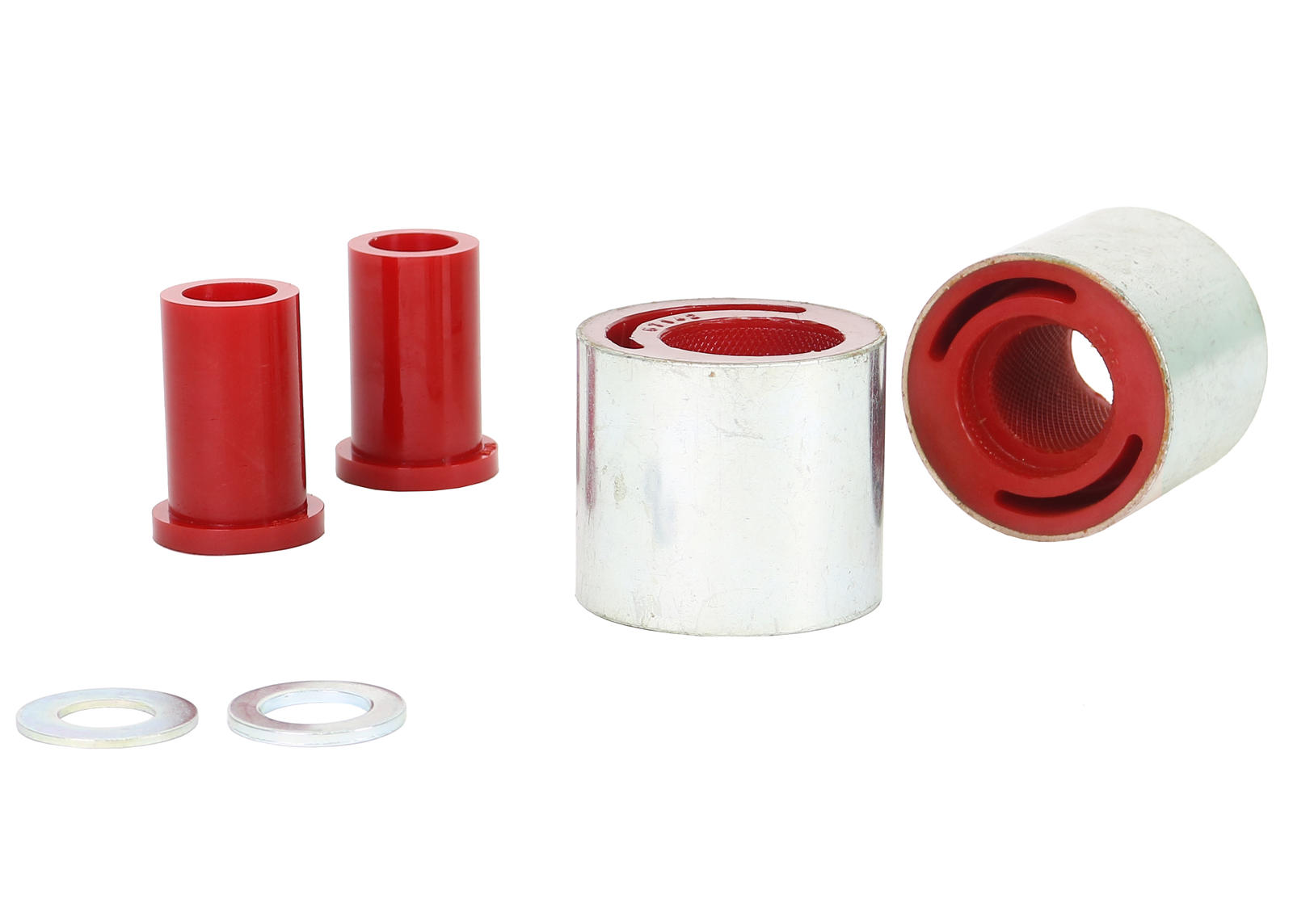

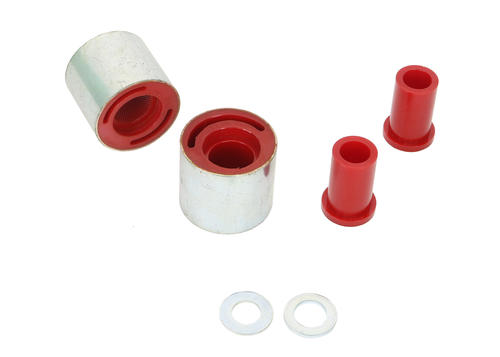

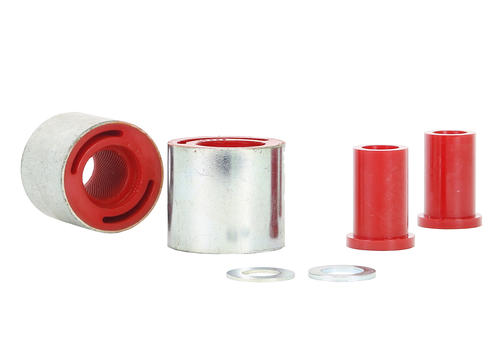

Kit Contents: 2 Shell Bushings, 2 Bushings, 2 Washers, Install Guide, Grease
Install Guide: Download Here
Important Notes

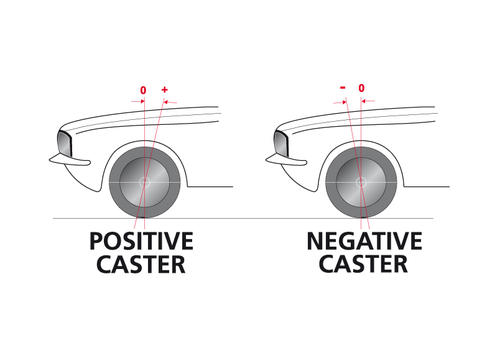

Steering-Pull Correction Kit - adds +0.5deg caster
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Offset mounting point to rectify vehicles with poor wheel alignment.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Specially bonded design for optimised strength typically required in high load bearing applications.
✓
Offset mounting point to rectify vehicles with poor wheel alignment.
✓
Provides a window of adjustment to rectify or optimise a vehicles wheel alignment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
Engineered to alter/ optimise caster alignment to maximize tyre contact patch during roll, improve turn-in response & increase directional stability.
✓
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
16 2 68 mm 32 mm 60 mm click here
1 2 31.8 mm 21.8 mm 57.2 mm 6.2 mm 39.7 mm click here
16 2 68 mm 32 mm 60 mm 6 mm 40 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Alignment Type Adjustment Type On Car Adjustable Adjustment Notes
Caster Fixed Offset No Adds + 0.5deg
Kit Specifications
Bush Type 16 1 16
Bush Qty 2 2 2
OD (A) 68 mm 31.8 mm 68 mm
ID (B) 32 mm 21.8 mm 32 mm
L (C) 60 mm 57.2 mm 60 mm
FL (D) 6.2 mm 6 mm
FLOD (E) 39.7 mm 40 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here click here click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Alignment Type Caster
Adjustment Type Fixed Offset
On Car Adjustable No
Adjustment Notes Adds + 0.5deg
Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
10 EVEN A 09 ODD A 12 EVEN B M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) 10
Press Plate # (IN) EVEN A
Press Sleeve # (OUT) 09
Press Plate # (OUT) ODD A
Support Sleeve # 12
Press Plate # EVEN B
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham Talks Small Cars
Videos

How Hard Is Nolathane?

Larko Talks Bushing Lubrication

Nolathane Technical Ambassador Mark Larkham Talks Small Cars
45628
Vehicle Applications
45628 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD ESCAPE 2016-2020 - ESCAPE ZG
FORD FOCUS 2011-2018 - FOCUS LW, LZ
FORD FOCUS RS 2015-2018 - FOCUS LZ RS
FORD FOCUS ST/XR5 2012-2018 - FOCUS LW, LZ ST
MAZDA MAZDA3 2009-2014 - MAZDA3 BL
MAZDA MAZDA3 MPS 2009-2014 - MAZDA3 BL MPS
