Nolathane
45626
Front Axle Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
45626
Front Axle Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge


Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty

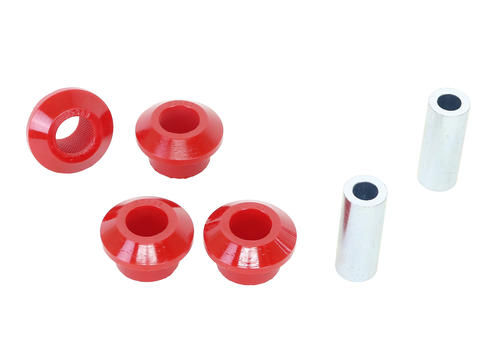

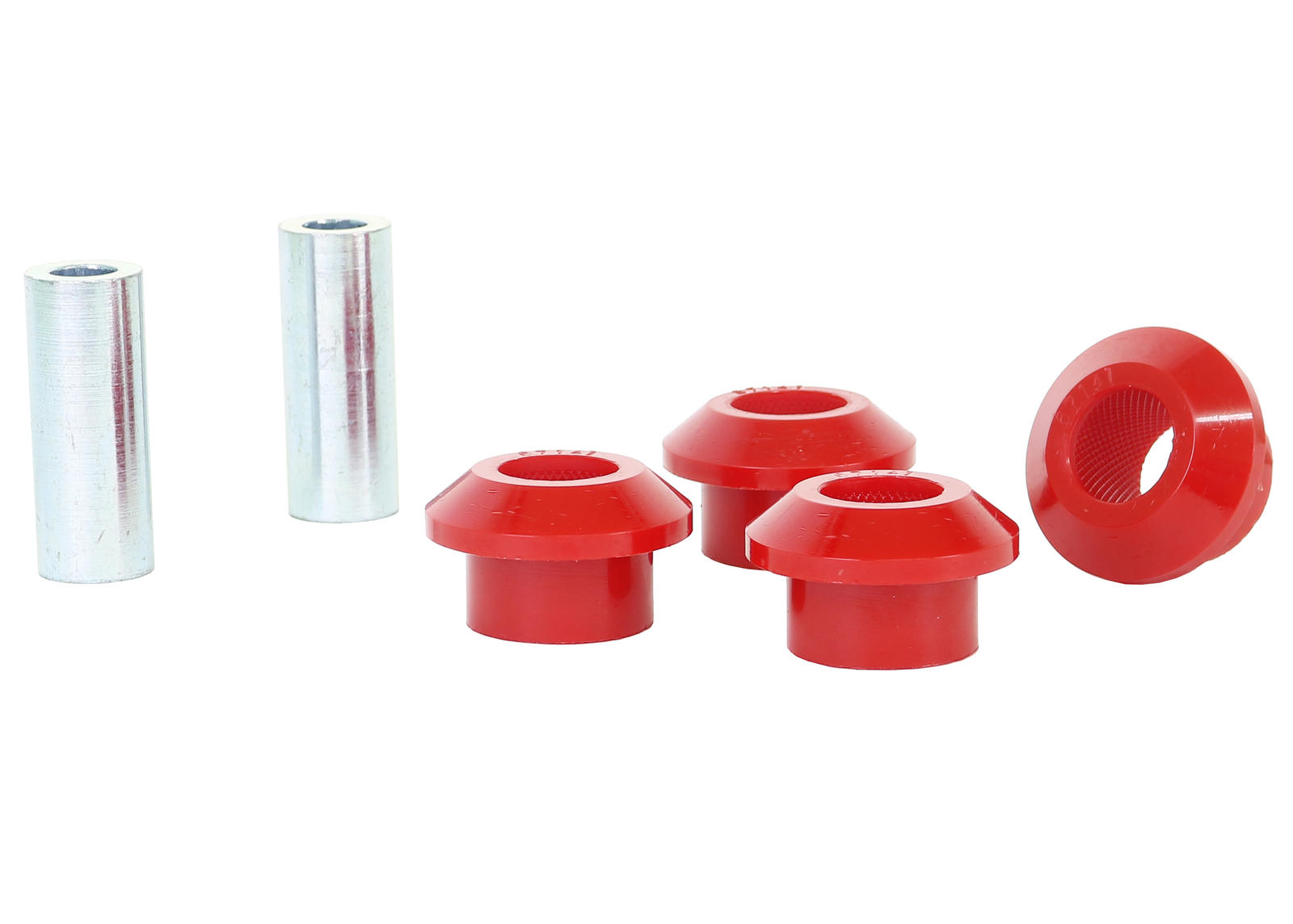

Kit Contents: 4 Bushings, 2 Tubes
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.
Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 38 mm 24.8 mm 32.5 mm 13.5 mm 54.2 mm 2 25x14.3x65 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 38 mm
ID (B) 24.8 mm
L (C) 32.5 mm
FL (D) 13.5 mm
FLOD (E) 54.2 mm
C/Tube QTY 2
C/Tube Size 25x14.3x65 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
Not Applicable Not Applicable 03 Odd A 06 Even A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 03
Press Plate # (OUT) Odd A
Support Sleeve # 06
Press Plate # Even A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

45626
Vehicle Applications
45626 is suitable for the following vehicles. Select a vehicle for specific fitment details:
FORD ESCAPE 2016-2020 - ESCAPE ZG
FORD FOCUS 2005-2011 - FOCUS LS, LT, LV
FORD FOCUS 2006-2011 - FOCUS LS, LT, LV XR5
FORD FOCUS 2010-2010 - FOCUS LV RS
FORD FOCUS 2011-2018 - FOCUS LW, LZ
FORD FOCUS 2012-2018 - FOCUS LW, LZ ST
FORD FOCUS 2015-2018 - FOCUS LZ RS
FORD KUGA 2011-2016 - KUGA TE, TF
MAZDA 3 2003-2009 - MAZDA3 BK
MAZDA 3 2006-2009 - MAZDA3 BK MPS
MAZDA 3 2009-2014 - MAZDA3 BL MPS
MAZDA 3 2008-2014 - MAZDA3 BL
VOLVO C30 2006-2013 - C30 533
VOLVO C70 2006-2013 - C70 542
VOLVO S40 2004-2012 - S40 MS
VOLVO V50 2004-2010 - V50 MW, 545
