Nolathane
45619

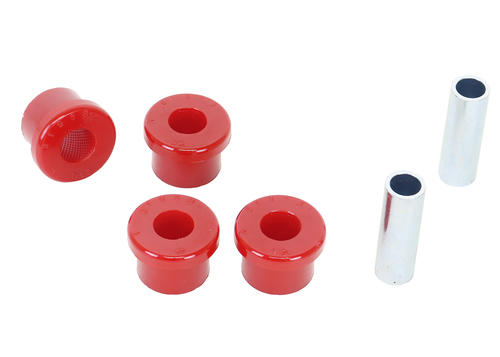

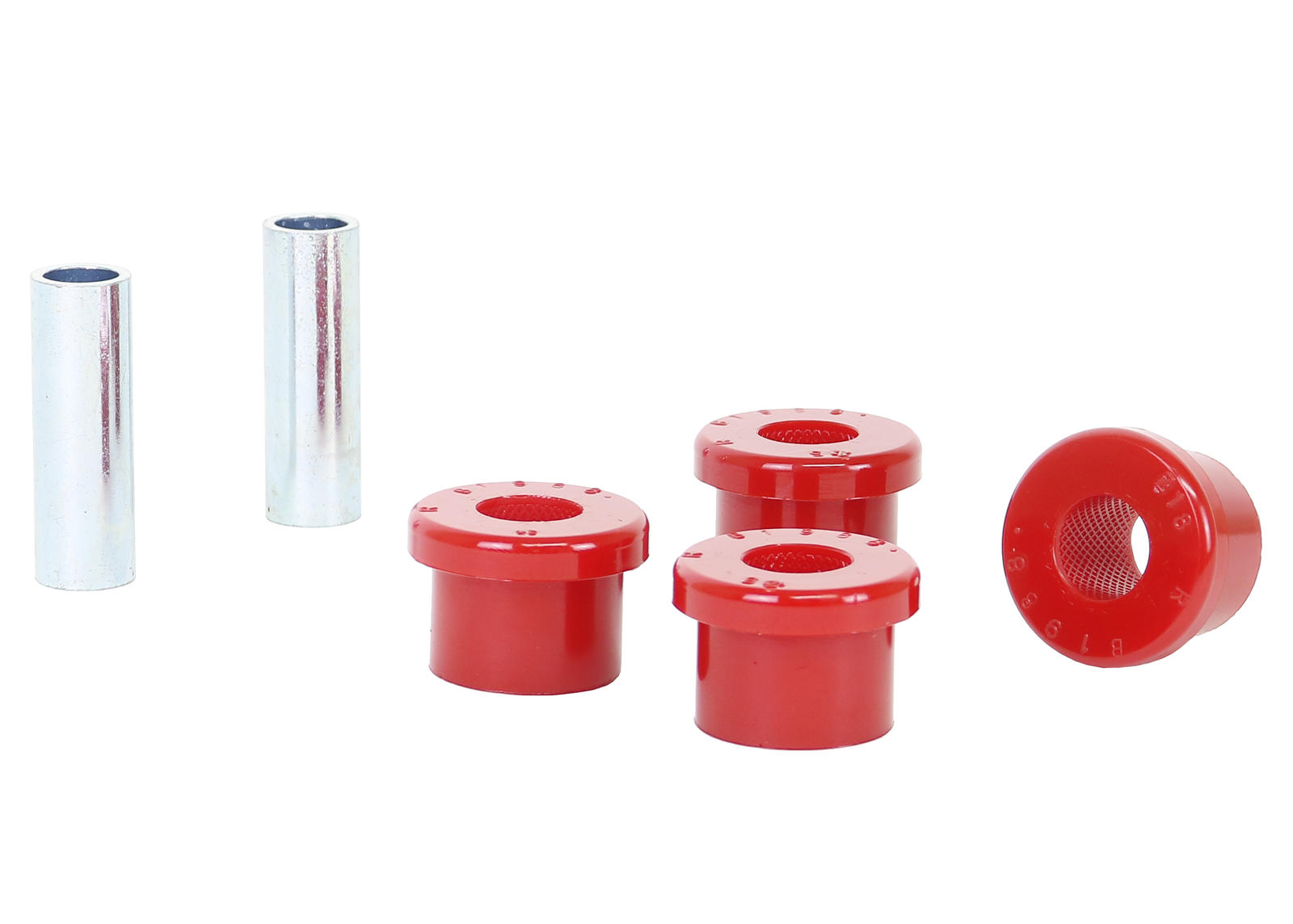

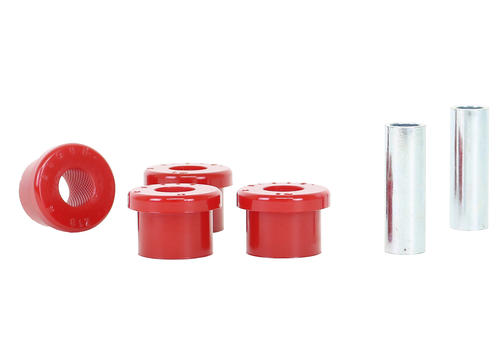

Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
45619
Front Control Arm Lower - Inner Front Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: Limited Lifetime Warranty
Kit Contents: 4 Bushings, 2 Tubes, Grease
Important Notes
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

Features
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
Protective plating on all metal components acts as a hard skin that is much tougher than conventional paint allowing this product to withstand the toughest conditions and resist corrosion for years to come.
This kit is covered by a limited lifetime warranty including parts and labour.

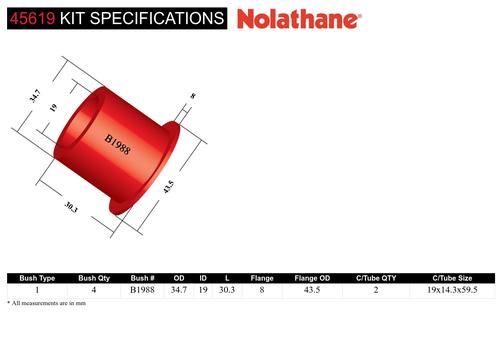

Kit Specifications
Bush
Type
Bush
Qty
OD
(A)
ID
(B)
L
(C)
FL
(D)
FLOD
(E)
C/Tube
QTY
C/Tube
Size
Similar
Bushing Size
1 4 34.7 mm 19 mm 30.3 mm 8 mm 43.5 mm 2 19x14.3x59.5 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 4
OD (A) 34.7 mm
ID (B) 19 mm
L (C) 30.3 mm
FL (D) 8 mm
FLOD (E) 43.5 mm
C/Tube QTY 2
C/Tube Size 19x14.3x59.5 mm
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve #
(IN)
Press Plate #
(IN)
Press Sleeve #
(OUT)
Press Plate #
(OUT)
Support
Sleeve #
Press
Plate #
Threaded
Rod #
Press In/Out
Kit
N/A N/A 02 EVEN A 05 ODD A M14 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide
Fitment
Time
Degree of
Difficulty
Recommend
Wheel Alignment
2.5 hrs Trade Specialist Yes
Press Sleeve # (IN) N/A
Press Plate # (IN) N/A
Press Sleeve # (OUT) 02
Press Plate # (OUT) EVEN A
Support Sleeve # 05
Press Plate # ODD A
Threaded Rod # M14
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
Videos

How hard is Nolathane?

Larko talks Bushing Lubrication

Larko talks Family Movers
45619
Vehicle Applications
45619 is suitable for the following vehicles. Select a vehicle for specific fitment details:
CHRYSLER SEBRING 2007-2010 - SEBRING JS
CITROEN C4 AIRCROSS 2012-2017 - C4 AIRCROSS
DODGE AVENGER 2007-2014 - AVENGER JS
DODGE CALIBER 2006-2013 - CALIBER PM
DODGE JOURNEY 2008-ON - JOURNEY JC
FIAT FREEMONT 2011-ON - FREEMONT JC, JF
JEEP COMPASS 2006-2017 - COMPASS MK49
JEEP PATRIOT 2007-2017 - PATRIOT MK74
MITSUBISHI ASX 2010-ON - ASX XA, XB, XC AWD
MITSUBISHI ASX 2010-ON - ASX XA, XB, XC FWD
MITSUBISHI LANCER 2003-2008 - LANCER CG, CH, CS
MITSUBISHI LANCER 2007-2017 - LANCER CJ, CY FWD
MITSUBISHI LANCER 2008-2016 - LANCER CJ, CY RALLIART AWD
MITSUBISHI LANCER EVOLUTION 2001-2007 - LANCER EVO VII, VIII, IX
MITSUBISHI LANCER EVOLUTION 2007-2016 - LANCER EVO X
MITSUBISHI OUTLANDER 2003-2006 - OUTLANDER ZE, ZF
MITSUBISHI OUTLANDER 2006-2012 - OUTLANDER ZG, ZH
PEUGEOT 4007 2007-2013 - 4007 GP
PEUGEOT 4008 2012-2017 - 4008
SMART FORFOUR 2004-2006 - FORFOUR 454
