Nolathane 45602 Front Axle Control Arm Lower - Inner Rear Bushing Kit
Nolathane
Vehicle Search
Vehicle
Search
OR
Nolathane
45602

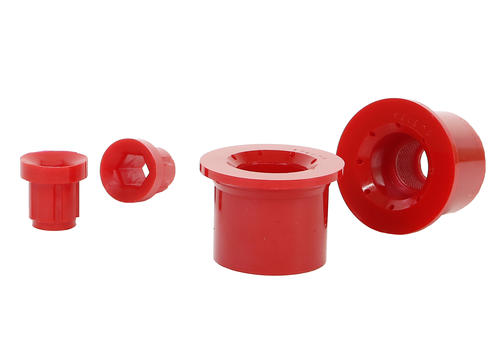

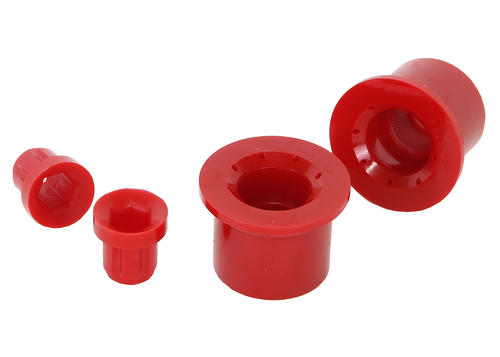

Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
45602
Front Axle Control Arm Lower - Inner Rear Bushing Kit
*** CONTACT NOLATHANE ***
click to enlarge
click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge click to enlarge
Vehicle Kit Contains:
Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings

Worn front control arm bushings have a huge influence on vehicle stability, steering precision and braking efficiency. Replace worn bushings to 'as new' condition utilising Nolathane's superior formulation bushings with core characteristics ensuring superior elasticity, memory and outright durability resulting in positive steering precision and feedback.
Kits Required: 1
Warranty: lifetime warranty
Kit Contents: 2 Bushings
Install Guide: Download Here
Important Notes
  • Standard Alignment
US $ NAN
shipping
Calculate shipping?
Click here for rates & other info
Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings

Contents
Kit Contains;

Engineered to handle extreme forces while maintaining safety and reliability; the best, replacement upgrade. Includes: 2 Bushings
Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .

Features
✓
The latest in material formulation technology boasts resistance to oil, grease, ozone and weathering.
✓
Supplied with extreme pressure molybdenum disulphide (LM) based grease for extended life.
✓
Internal grease reservoirs provide continual self-lubrication for optimum friction management.
✓
Designed with the installer in mind by reducing the need of specialised skills, tools and equipment.
✓
Precisely placed dampening voids further reduces harshness from sudden road inputs.
✓
This kit is covered by a limited lifetime warranty including parts and labour.
✓
Install guide included providing detailed instructions on how to install your new purchase .
Kit Specifications
Bush
Type		 Bush
Qty		 OD
(A)		 ID
(B)		 L
(C)		 FL
(D)		 FLOD
(E)		 C/Tube
QTY		 C/Tube
Size		 Similar
Bushing Size
1 2 62.2 mm BI=38.5 BII=29 mm 55.5 mm 5 mm 78.6 mm click here
Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register
Kit Specifications
Bush Type 1
Bush Qty 2
OD (A) 62.2 mm
ID (B) BI=38.5 BII=29 mm
L (C) 55.5 mm
FL (D) 5 mm
FLOD (E) 78.6 mm
C/Tube QTY
C/Tube Size
Similar Bushing Size click here

Looking for that hard-to-find part? Start your search here Nolathane Bushing Type & Size Register

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve #
(IN)		 Press Plate #
(IN)		 Press Sleeve #
(OUT)		 Press Plate #
(OUT)		 Support
Sleeve #		 Press
Plate #		 Threaded
Rod #		 Press In/Out
Kit
Not Applicable Not Applicable 07 Odd A 10 Even A M16 NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Installation
Install
Guide		 Fitment
Time		 Degree of
Difficulty		 Recommend
Wheel Alignment
Click to Download 3 hrs Trade Specialist Yes
Press Sleeve # (IN) Not Applicable
Press Plate # (IN) Not Applicable
Press Sleeve # (OUT) 07
Press Plate # (OUT) Odd A
Support Sleeve # 10
Press Plate # Even A
Threaded Rod # M16
Press In/Out Kit NTK001

Use the above press Sleeves, Plates and Rods from the Nolathane Press In/Out kit NTK001 to aid in the ease of removing old worn and broken suspension bushings and installing New Nolathane bushings.

Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
Videos

Uneven Tyre Wear

How Hard Is Nolathane?

Larko Talks Bushing Lubrication
45602
Vehicle Applications
45602 is suitable for the following vehicles. Select a vehicle for specific fitment details:
AUDI A3 2003-2013 - A3 8P FWD
AUDI A3 2003-2013 - A3 8P QUATTRO
AUDI A3 2006-2013 - S3 8P
AUDI Q3 2011-2018 - Q3 8U QUATTRO
AUDI Q3 2011-2018 - Q3 8U FWD
AUDI TT 2006-2014 - TT 8J QUATTRO
AUDI TT 2006-2014 - TT 8J FWD
SKODA FABIA 2006-2014 - FABIA 5J
SKODA OCTAVIA 2004-2013 - OCTAVIA 1Z FWD
SKODA OCTAVIA 2004-2013 - OCTAVIA 1Z AWD
SKODA SUPERB 2008-2015 - SUPERB 3T B6 AWD
SKODA SUPERB 2008-2015 - SUPERB 3T B6 FWD
SKODA YETI 2009-2017 - YETI 5L FWD
SKODA YETI 2009-2017 - YETI 5L AWD
VW CADDY 2004-2015 - CADDY MK3 TYP 2K FWD
VW CC 2008-2012 - CC TYP 357 4MOTION
VW CC 2008-2012 - CC TYP 357 FWD
VW EOS 2006-2015 - EOS 1F
VW GOLF 2003-2009 - GOLF MK5 TYP 1K FWD
VW GOLF 2004-2009 - GOLF MK5 GTI TYP 1K
VW GOLF 2005-2010 - GOLF MK5 R32 TYP 1K
VW GOLF 2008-2013 - GOLF MK6 TYP 5K, AJ FWD
VW GOLF 2009-2012 - GOLF MK6 GTI, GTD TYP 5K
VW GOLF 2009-2013 - GOLF MK6 R TYP 5K
VW GOLF 2011-2016 - GOLF MK6 TYP 517 CONVERTIBLE
VW JETTA 2005-2010 - JETTA MK5 TYP 1K
VW PASSAT 2005-2010 - PASSAT MK6 B6 TYP 3C2, 3C5 FWD
VW PASSAT 2005-2010 - PASSAT MK6 B6 TYP 3C2, 3C5 4MOTION
VW PASSAT 2010-2015 - PASSAT MK7 B7 TYP 362, 365 FWD
VW PASSAT 2010-2014 - PASSAT MK7 B7 TYP 362, 365 4MOTION
VW PASSAT ALLTRACK 2012-2014 - PASSAT ALLTRACK MK7 TYP 365
VW POLO 2001-2009 - POLO MK4 9N, 9A
VW SCIROCCO 2008-2017 - SCIROCCO MK3 TYP 137, 138
VW TIGUAN 2007-2018 - TIGUAN 5N 4MOTION
VW TIGUAN 2007-2018 - TIGUAN 5N FWD
VW TOURAN 2003-2010 - TOURAN 1T1, 1T2
